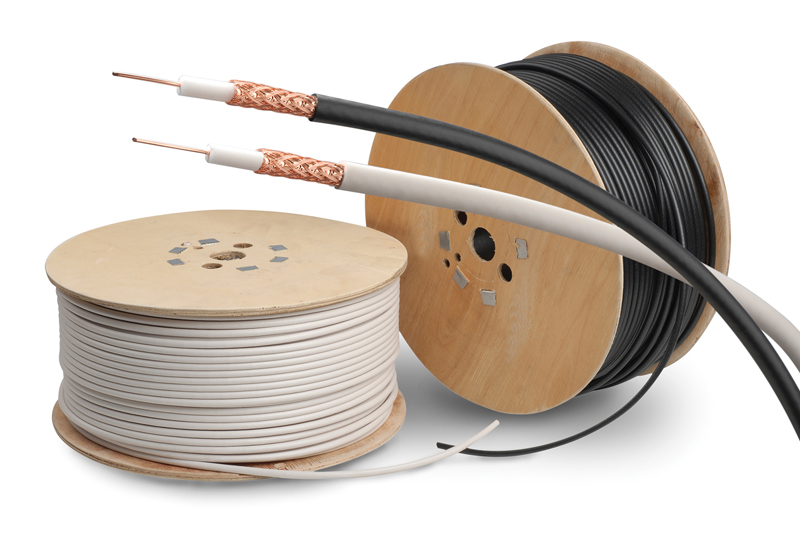

DESCRIPTION of CT100 Satellite Cable 250m
Top quality benchmarked type 100 cable (copper/copper)
- High Quality Foam Filled Type100 Satellite Cable
- Type: Antiference ANT100 Copper Braid, Copper Foil Cable
- Approval:
- CAI Approved
BSkyB Approved
Digital TV Approved
- CAI Approved
- Colour: White
- Length: 250m roll on wooden drum
- Copper braid with 60% bff for improved screening
Spec:
ANT100 | ||||
Frequency | Attenuation 100m | |||
Return | 50MHz | >3.9dB | ||
FM | 100MHz | >5.6dB | ||
Band III/DAB | 200MHz | >8.1dB | ||
UHF TV | 460MHz | >12.6dB | ||
860MHz | >17.6dB | |||
Satellite | 1000MHz | >19.1dB | ||
1750MHz | >26.0dB | |||
2150MHz | >29.1dB | |||
Conductor resistance inner | >20.1ohm/km | |||
Conductor resistance outer | >12.7ohm/km | |||
Impedance | 75ohm+/-3dB |
