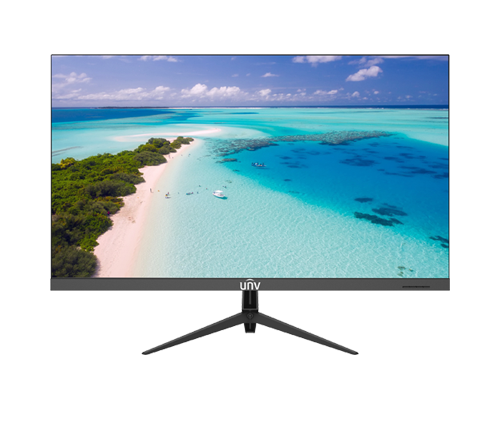

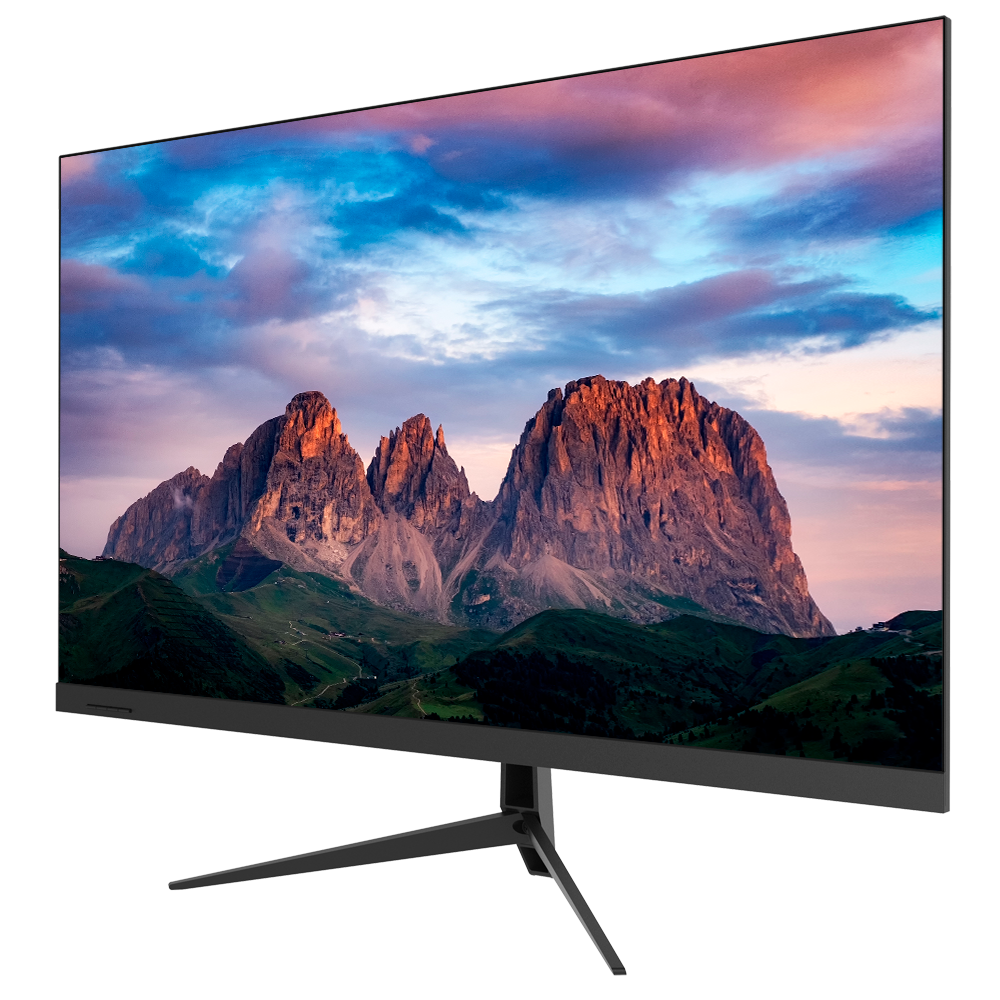

Uniview 32" LED Monitor - HDMI, VGA, Speakers
Panel | Description |
Panel Size | 32" |
Pixel Pitch (H x V) (mm) | 0.36 x 0.36 |
Resolution | 1920 x 1080 |
Color Support | 16.7 M |
Brightness (cd/m²) | 300 |
Contrast Ratio | 4000:1 |
Refresh Rate | 75 Hz |
Response Time (ms) | 8 |
Viewing Angle (H/V) | Horizontal 178°, Vertical 178° |
Display Size (mm) | 698.40 x 392.85 |
Operation Hour | 24/7 |
Interface | Description |
Video Input | 1 x VGA, 1 x HDMI |
Audio Input | 1 x Audio |
Speaker | Description |
Speaker | 2 x 2 W |

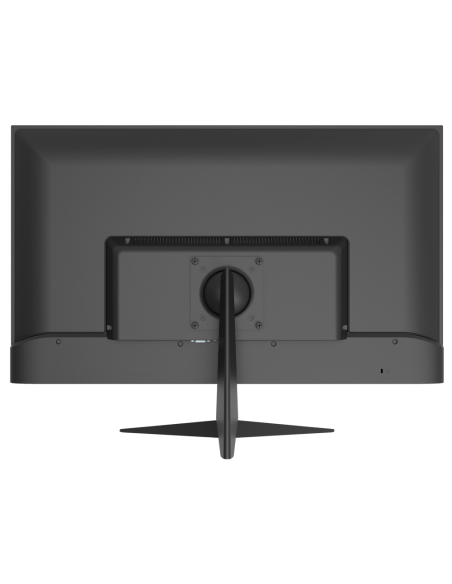

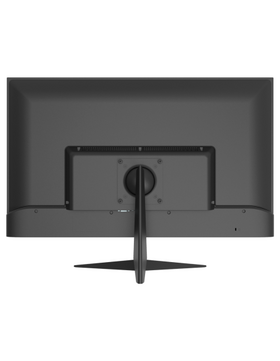

VESA | Description |
VESA (mm) | 100 x 100 |
Wall-mounted Thread | 4‑M4 Screw Holes, 8mm Deep |
OSD | Description |
Multi-Language | Polish, Dutch, Italian, German, Portuguese, Spanish, French, English, Simplified Chinese, Korean, Russian, Turkish |
General | Description |
Input Voltage | DC 12V, 3A |
Typical Power Consumption (W) | <36 |
Standby Power Consumption (W) | <0.5 |
Product Dimensions (W x H x D) (mm) | 712.54 x 422.96 x 61.60 (Excluding base) 712.54 x 517.14 x 199.64 (Including base) |
Package Dimensions (W x H x D) (mm) | 784 x 512 x 144 |
Weight (Kg) | Net Weight: 4.1 Gross Weight: 6 |
Operating Temperature | 0°C ~ 50°C |
Operating Humidity | 10% ~ 90% (No Condensation) |
Storage Temperature | ‑20°C ~ 60°C |
Storage Humidity | 5% ~ 90% (No Condensation) |
Optional Accessories | HB‑4022‑E |
Standard | 1 x HDMI Cable, 1 x Base, 1 x Adapter, 1 x Quick Guide |
