DESCRIPTION of Log Periodic UHF Aerial

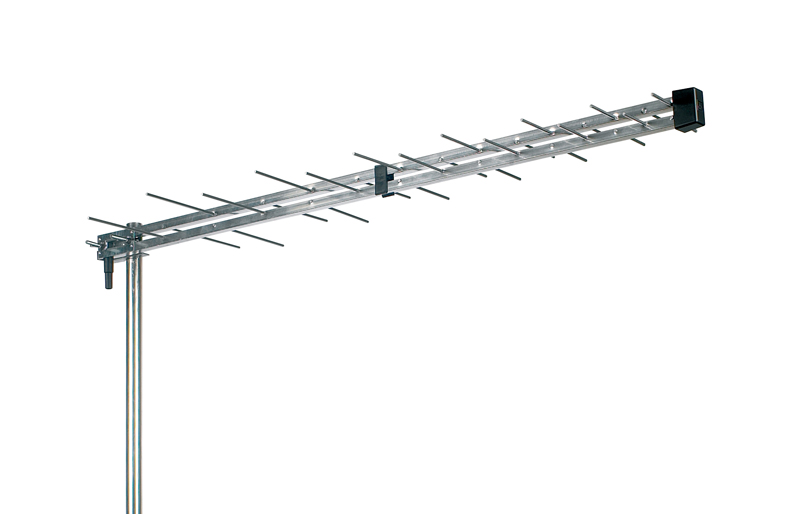

Antiference LP28F Log Periodic Aerial
Perfect Aerial for receiving the 'Saorview' package in areas of weak signal. This is a high gain Log-periodic UHF Aerial & its Digital TV ready.
Channels like RTE1, RTE2, 3, 3e, RTE Jr, TG4 etc.. can be watched with this aerial.
Log-periodic pre-assembled aerials characterised by: easy connection due to the connector being located near the mast clamp. High level design of the dipole connection guarantees a highly reliable RF contact. Due to the specific mast clamp these aerials can be assembled in vertical or horizontal polarisation without additional accessories.
They have excellent mechanical clamp resistance of the boom elements, great mechanical resistance at the rotation around the mast and good electrical performances.
F connector is protected by a cap with bayonet clamp.
Info:
- F-Connector for ease of fitting
- Medium gain, flat response across the full wideband
- Highly directional with narrow acceptance angle
- Ideal for wideband Freeview reception
Spec:
| LP28F | ||
| Forward Gain | 9.5dBi | |
| Front/Back Ratio | 25dB | |
| Acceptance Angle deg ± | 16° | |
| Noise | - | |
| Length | 1058mm |
