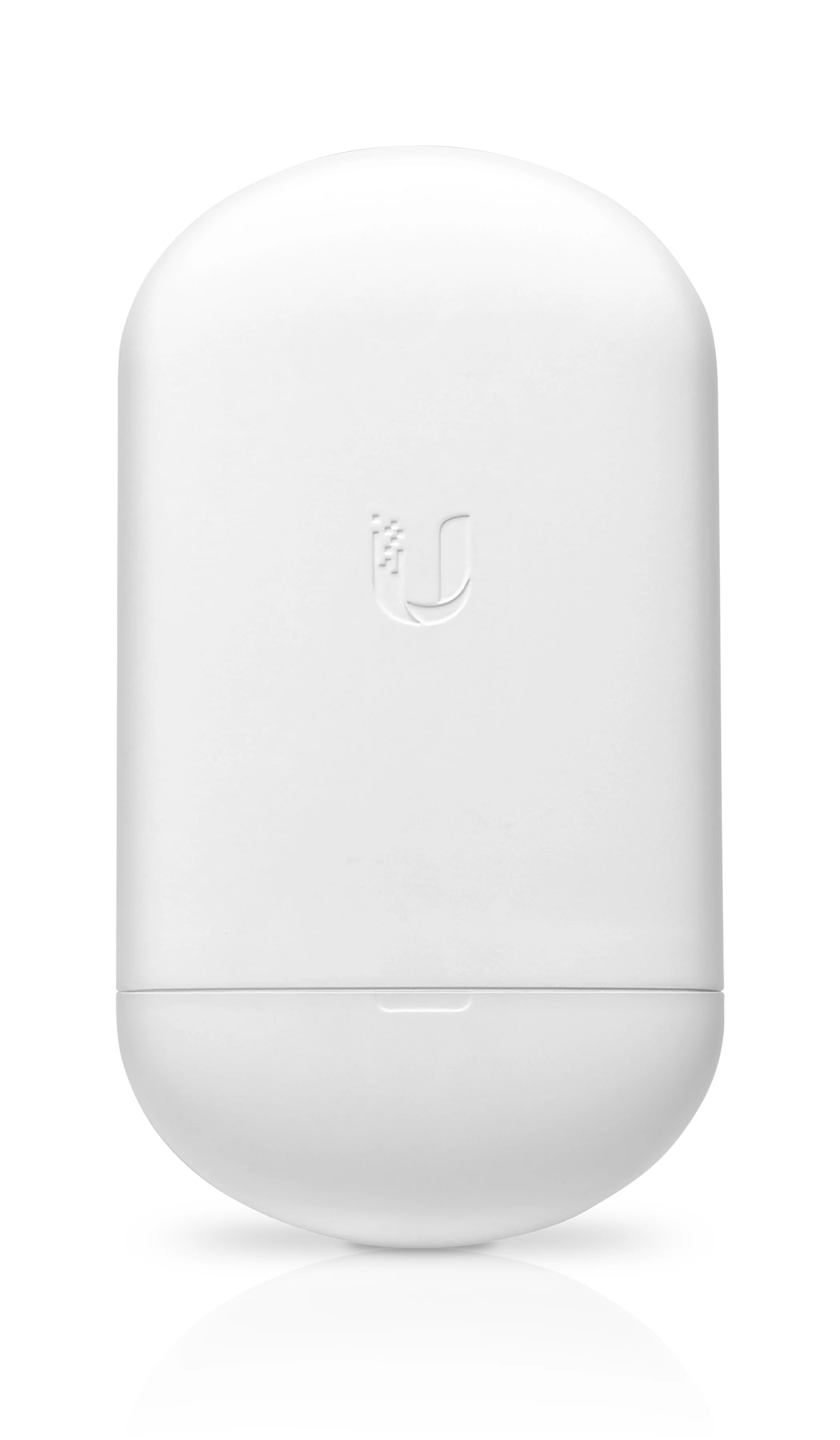

Ubiquiti airMAX NanoStation 5AC Loco (Single Pack)
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
5 GHz, 10+ km link range
450+ Mbps throughput
Dedicated spectral analysis radio
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.3A Gigabit PoE supply* *PoE adapter not included. |
| Supported voltage range | 24V ±10% |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
