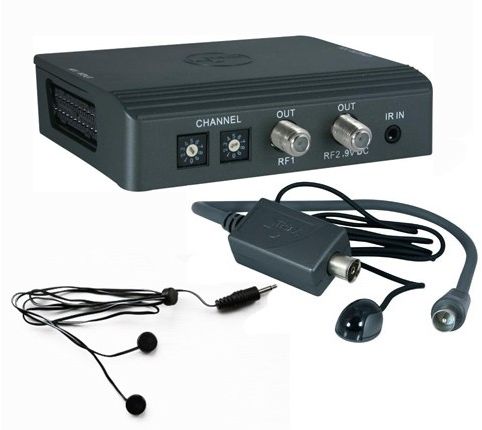

DESCRIPTION of a Triax Tri-link Kit
Triax Tri-link modulator kit consists of 4 parts:
1. Modulator
- Ouput Frequency: 470-856MHz
- Default channel: CH36
- Gain: 10dB
- Return Path gain: >10dB
- Connectors:
- Power input (F connector)
- RF in: (F connector)
- RF outs: qty 2
- (F connector),
- passive and RF2 (9V)
- AV scart In
- Av scart Out
- Power switch with Indicator LED
- Adjustable RF out twin channel dials
2. IR Transmitter
- Peak wavelength: 940nm
- View Angle: 40 degrees
- Cable length 800mm
3. Power Adapter
- input voltage: 230v/50Hz AC
- Ouptput voltage: 12v/400mA DC
- Output connector: F connector
4. Sky eye (IR Sensor)
- Range: Up to 10m from eye to remote
FUNCTION of a Triax Tri-link Kit
The tri-link includes 2 very important functions which allow a satellite receiver (or video etc):
- Which does not have an RF output to be run through an RF cable to another room
- To be remotely controlled allowing channels to be changed from another location
