Triax TMSS 5 Splitter EB - Quattro Feed Splitter

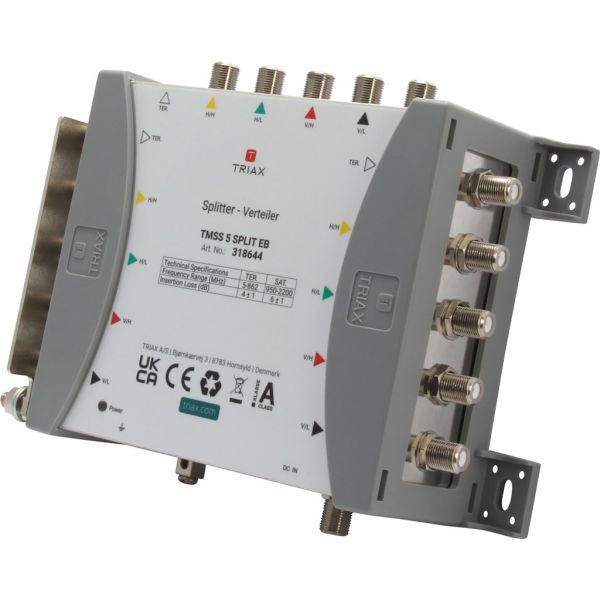

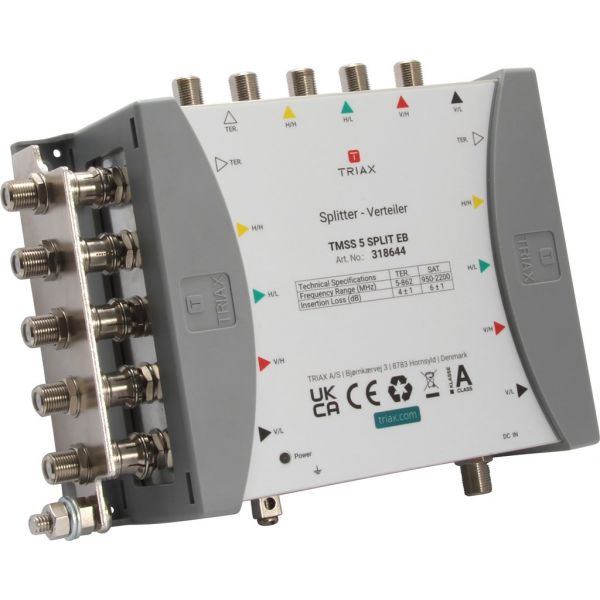

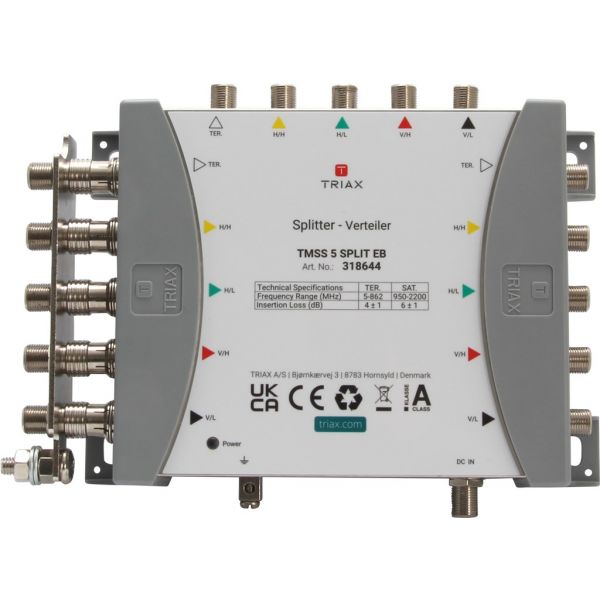

The TMSS 5 SPLIT EB is a 5-input splitter designed to be used in cascade systems to split the received signals to several trunk lines.
Supplied with earth bars.
Power can be inserted on the DC input, or line powered via any of the Sat ports
ORDER INFORMATION
CONNECTORS
| Number of inputs |
4 SAT, 1 TER |
| Number of outputs |
2 x 5 (8 SAT, 2 TER) |
| Colorcoding @IF/TER inputs |
VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER |
| Connector Type |
F-female |
| Connector DC |
F-female |
FREQUENCY RANGE
| Frequency range TER |
5…862 MHz |
| Frequency range SAT |
950…2200 MHz |
LOSS
| Insertion loss - SAT |
6 ± 1 dB |
| Insertion loss - TER |
4 ± 1 dB |
ELECTRICAL
RETURN LOSS
| Return loss SAT |
> 10 dB |
| Return loss TER |
> 10 dB |
OPERATIONAL
| DC Current consumption |
10 mA |
| LINE power DC voltage (max.) |
15…20 VDC |
| LINE power current (max.) |
2000 mA |
| Control LEDs |
Green LED (Power) |
| Temperature - operating |
-20…+55 °C |
MECHANICAL
| Dimensions product (H x D x W) |
65 x 140x x175 mm |
| Packing QTY |
1 |
| Product Height |
200 mm |
| Product Width |
140 mm |
| Product Depth |
65 mm |
| Packaging Height |
0.070 m |
| Packaging Width |
0.220 m |
| Packaging Depth |
0.150 m |
| Packaging Volume |
0.000 m3 |
| Net Weight |
0.620 kg |
| Tara Weight |
0.123 kg |
| Total Weight |
0.743 kg |
| Remarks |
SAT Inputs to SAT Outputs, Bi-directional. TER no DC pass Earth Bars |
