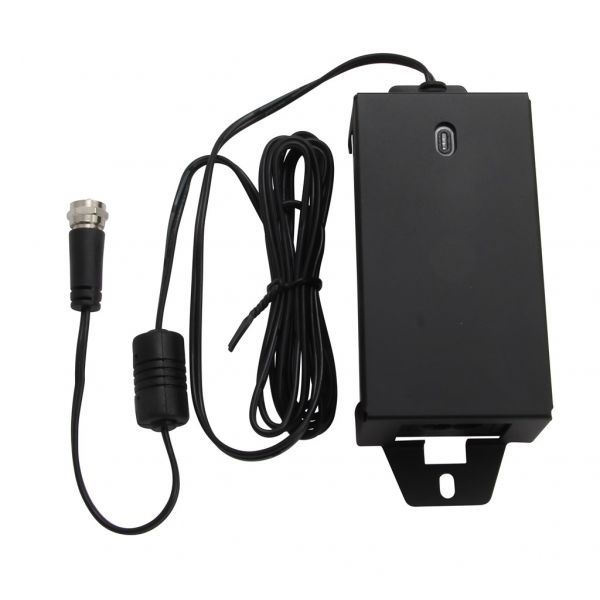

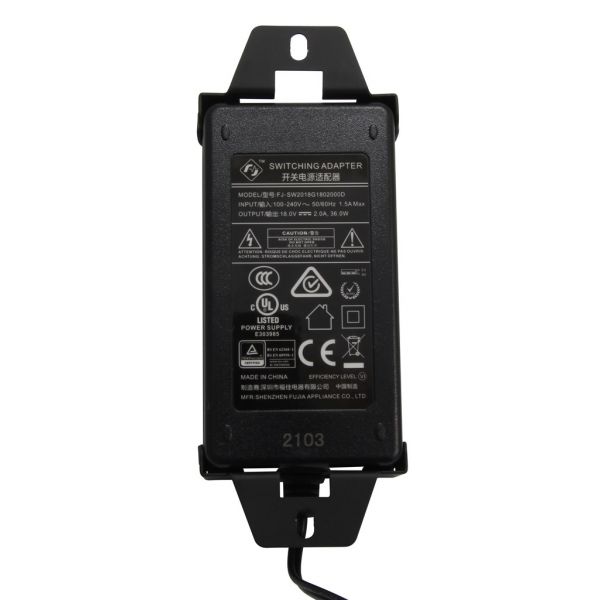

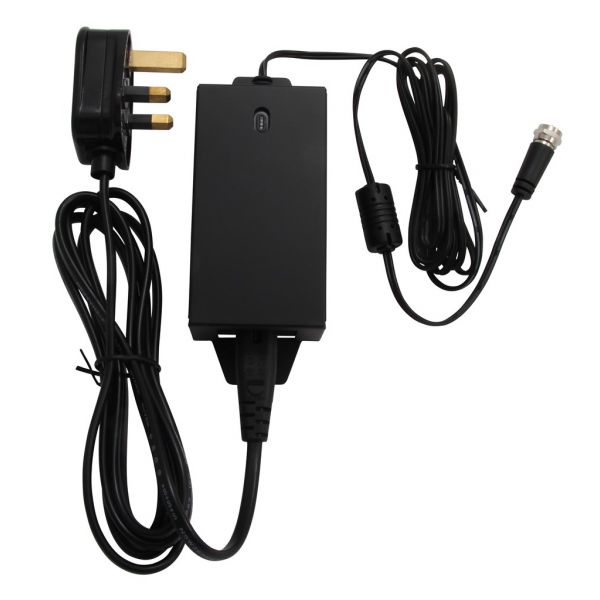

Triax TMS PSU 2A BS Power Supply
TMS PSU 2A BS
PSU 100-240V AC 50/60Hz to 18V DC 2A, UK socket
Our Power Supply Units deliver 18V DC to your cascade system.
Power can be inserted into any TRIAX cascade Multiswitch, Tap, Splitter or Amplifier.
Suitable for small to large systems.
ORDER INFORMATION
EAN Number | 5702663181663 |
CONNECTORS
Power connector | UK main plug |
Connector Type | F-male |
Connector DC | 1830 ± 50mm DC lead length 1800mm Main cord length |
OPERATIONAL
AC Supply voltage | 100...240 VAC |
PSU output DC voltage | 18 VDC |
PSU output max. DC current | 2000 mA |
Control LEDs | Green LED (Power) |
Temperature - operating | -20…+55 °C |
MECHANICAL
Dimensions product (H x D x W) | 32,6 x 94,3 x 50,5 mm |
Packing QTY | 1 |
Product Height | 94 mm |
Product Width | 52 mm |
Product Depth | 35 mm |
Packaging Height | 0.048 m |
Packaging Width | 0.200 m |
Packaging Depth | 0.088 m |
Packaging Volume | 0.000 m3 |
Net Weight | 0.358 kg |
Tara Weight | 0.042 kg |
Total Weight | 0.400 kg |
Remarks | Power cord, PSU holder + 4 screws & wall plug short circuit, overload current & voltage protection |
