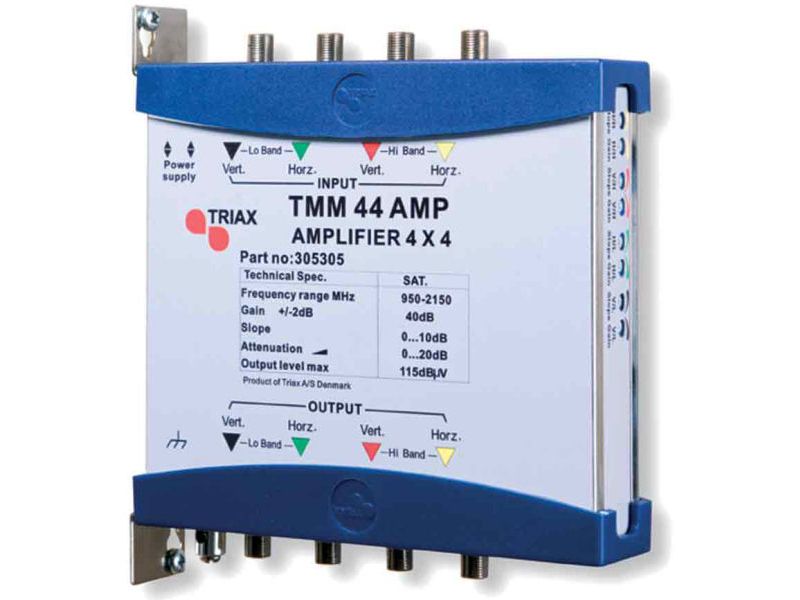

Triax TMM 44 AMP
- Multiswitch Amplifier
- 4 x Satellite Amplifiers
- High gain and output
- Gain and slope control on all inputs
- Line powered or powered from external power supply
- Power on LED's
- Colour coded inputs and outputs
ORDER INFORMATION
| EAN Number | 5702663053052 |
CONNECTORS
| Number of trunk inputs | 4 |
| Number of trunk outputs | 4 |
| Number of inputs | 4x SAT |
| Number of outputs | 4x SAT |
FREQUENCY RANGE
| Frequency range | 950-2150 MHz |
LOSS
| Attenuation | 0-20 dB |
GAIN
| Gain - SAT (with 5 dB slope) | 40 dB |
| Slope control SAT | 0-10dB |
CHARACTERISTICS
| Max. output level SAT @ -35 dB IMD3 | 115 dBµV |
| LNB power supply max. | 2x14VDC / 2x18VDC, 400mA Max V/DC |
ELECTRICAL
| Impedance | 75 Ω |
OPERATIONAL
| DC Operating voltage | 18 VDC |
| DC Current consumption | 390 mA |
| DC Passthrough | Yes on all Trunk Lines |
| Temperature - operating | 0...55 °C |
ISOLATION
| Isolation trunk to trunk | 35 dB |
MECHANICAL
| Weight (kg) TB(D) | 0.685 kg |
| Product Height | 200 mm |
| Product Width | 185 mm |
| Product Depth | 45 mm |
| Packaging Height | 0.045 m |
| Packaging Width | 0.200 m |
| Packaging Depth | 0.185 m |
| Packaging Volume | 0.002 m3 |
| Net Weight | 0.565 kg |
| Tara Weight | 0.130 kg |
| Total Weight | 0.695 kg |
| Remarks | DC In via 3.5mm socket 18V from External Power Supply or Line Powered via Inputs or Outputs |
