Teltonika 5 Port Gigabit PoE+ 120W Switch

Teltonika 5 Port Gigabit PoE+ 120W Switch

INDUSTRIAL UNMANAGED POE+ SWITCH

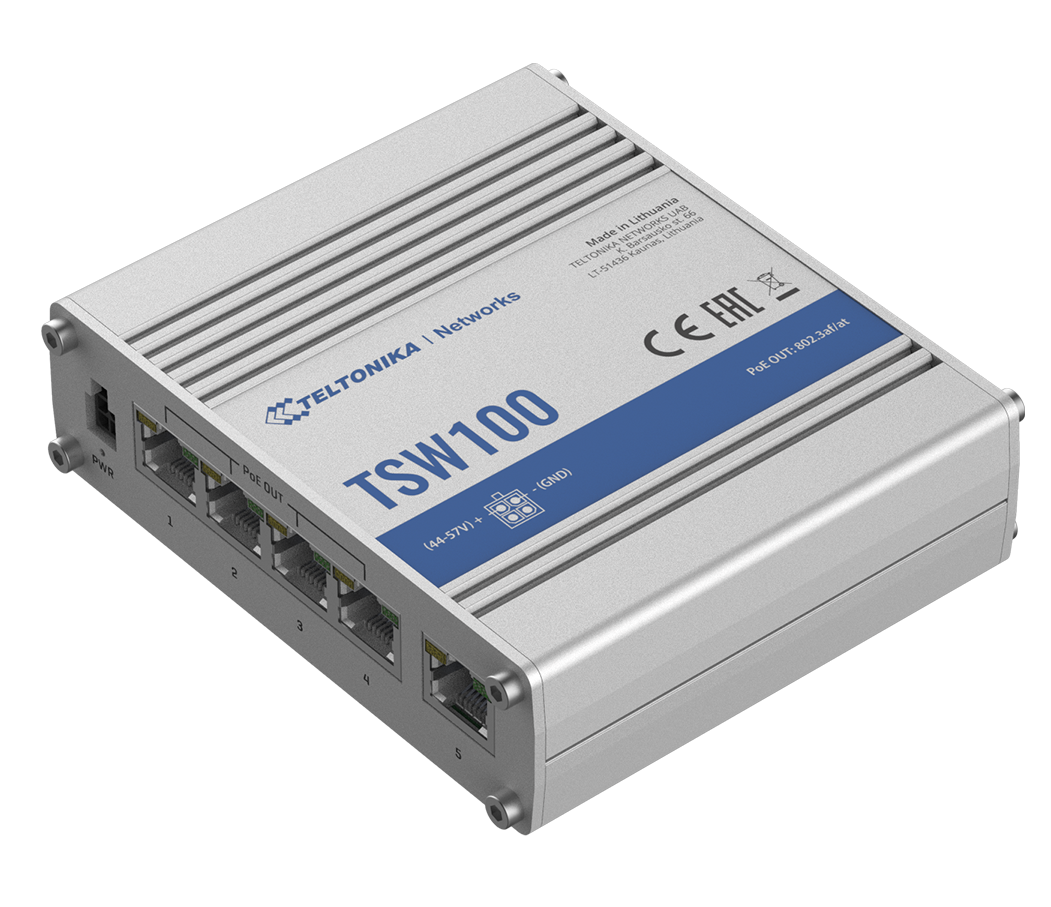

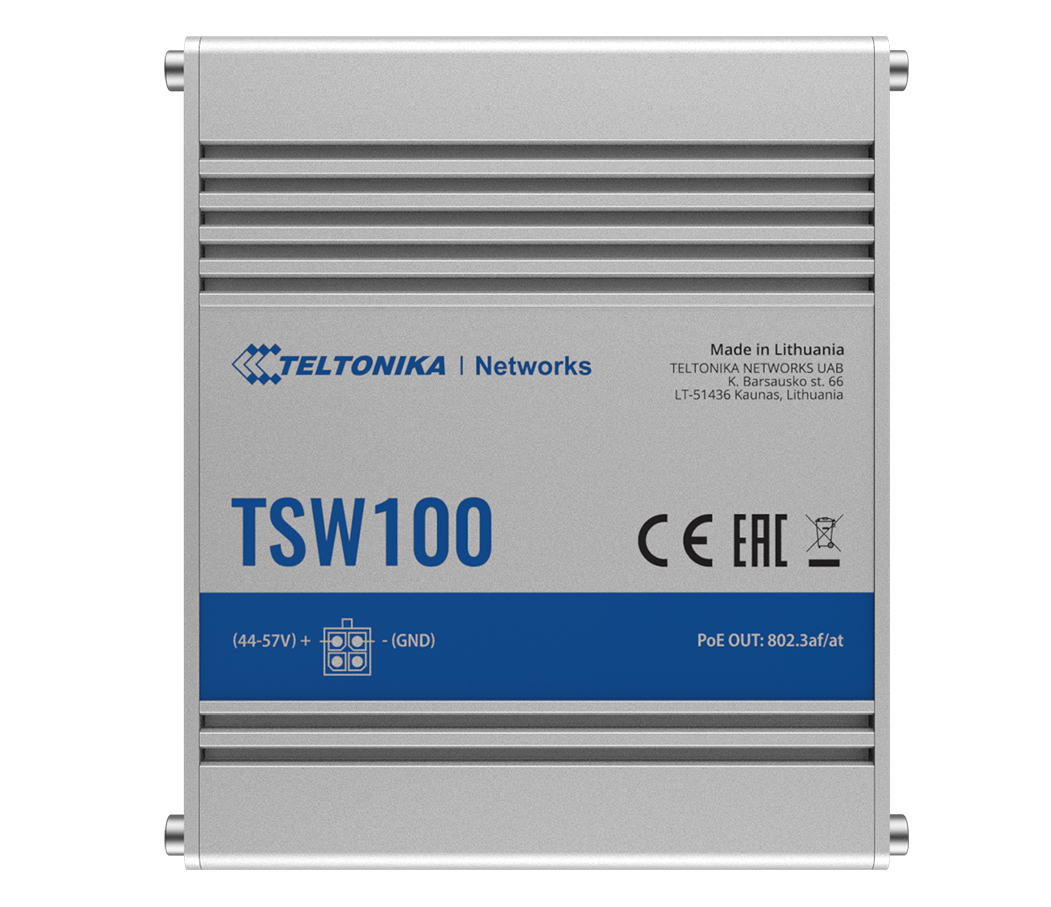

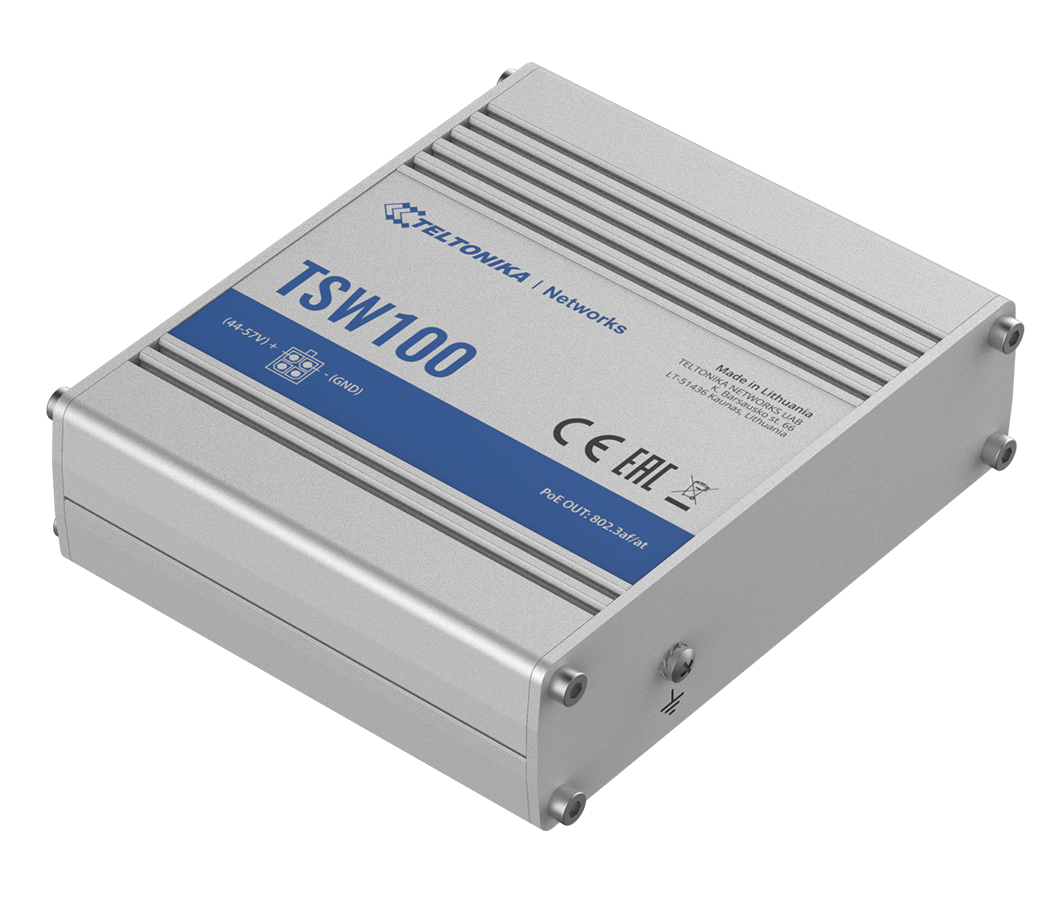

TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.

Features:

POE+: 4 x PoE+ ports with 802.3af and 802.3at support

POWER BUDGET: Total power budget at PSE up to 120 W

ETHERNET: 5 x Gigabit Ethernet with speeds up to 1000 Mbps

MOUNTING: DIN rail and surface mounting options

Specifications:

ETHERNET

• LAN

5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE

• PoE ports

Port 1- 4

• PoE standards

802.3af and 802.3at

• PoE Max Power per Port (at PSE)

30 W

• PoE Power Budget (at PSE)

120 W

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

10 Gbps

• Packer buffer

128 KB

• MAC address table size

2K entries

POWER

• Connector

4-pin industrial DC power socket

• Input voltage range

7-57 VDC

• Power consumption

Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

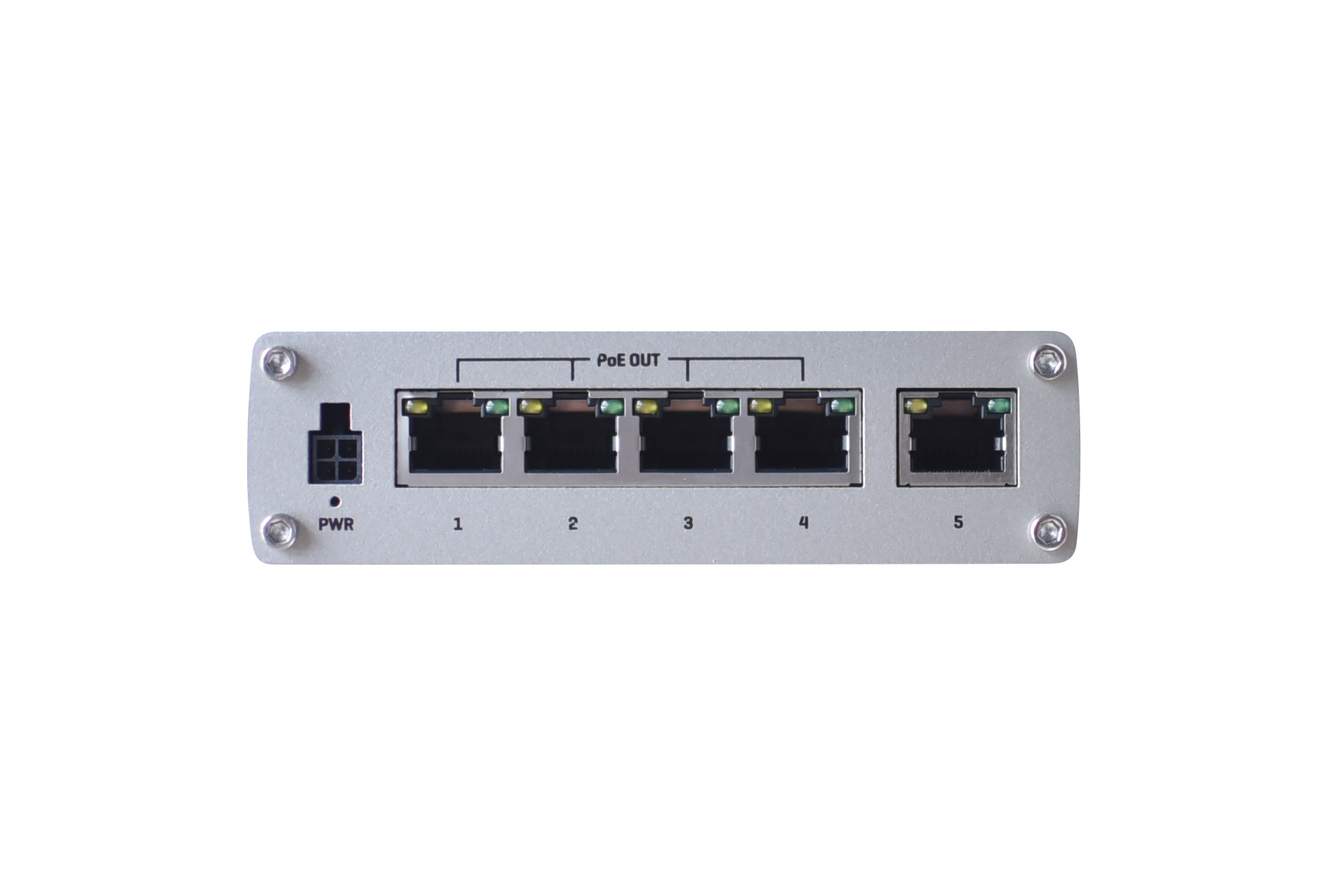

PHYSICAL INTERFACES

• Ethernet

5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

1 x Power LED, 10 x LAN status LEDs

• Power

1 x 4-pin power connector

• Other


1 x Grounding screw


PHYSICAL SPECIFICATION

• Casing material

Full aluminum housing

• Dimensions (W x H x D)

115 x 32 x 95 mm

• Weight

350 g

• Mounting options

DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

-40 °C to 75 °C

• Operating humidity

10% to 90% non-condensing

• Ingress Protection Rating

IP30
