Teltonika 8 Port Gigabit PoE+ with 2 SFP Ports 240W Switch

Write a review
List price: €159.00
€99.00
(€121.77 inc VAT) You save: €60.00 (38%)
TSW200
In stock
+ −

Teltonika 8 Port Gigabit PoE+ with 2 SFP Ports 240W Switch

INDUSTRIAL UNMANAGED POE+ SWITCH



Features:

SFP: 2 x SFP ports for long-range Fiber-optic communication
POE+: 8 x PoE+ ports with 802.af, 802.3at standard support
POWER BUDGET: Total power budget at PSE up to 240 W
ETHERNET: 8 x Gigabit Ethernet with speeds up to 1000 Mbps

Specifications:

ETHERNET

  • LAN

    8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

  • Fiber

    2 x SFP ports

POE

  • PoE ports

    Port 1- 4, Port 1 - 8

  • PoE standards

    802.3af and 802.3at

  • PoE Max Power per Port (at PSE)

    30 W

  • Total PoE Power Budget (at PSE)

    240 W

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    20 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

POWER

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7-57 VDC

  • Power consumption

    1,81 W/5.5 W/245.5 W

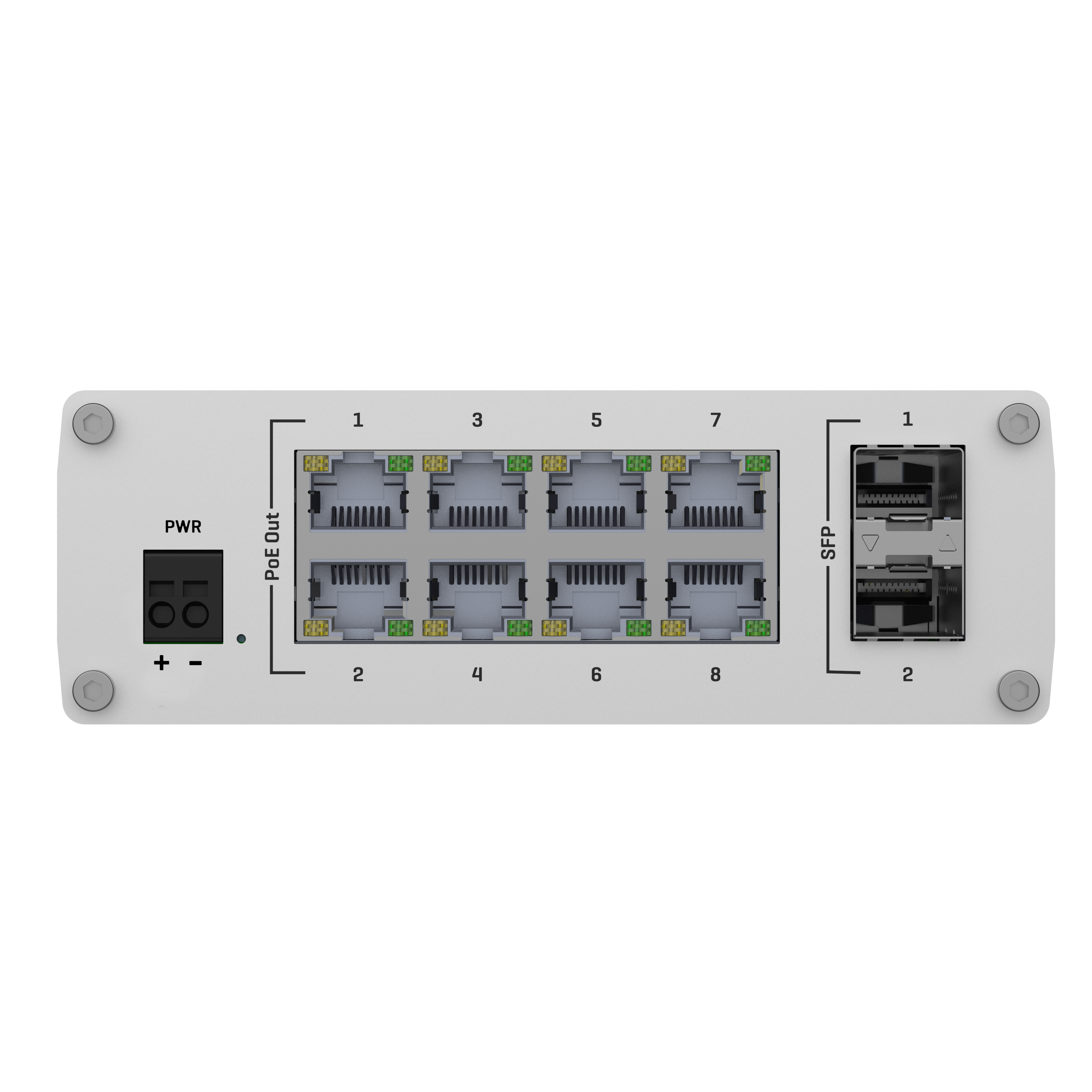

PHYSICAL INTERFACES

  • Ethernet

    8 x RJ45 ports, 10/100/1000 Mbps

  • Fiber

    2 x SFP ports

  • Status LEDs

    1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s

  • Power

    1 x 2-pin industrial DC power socket

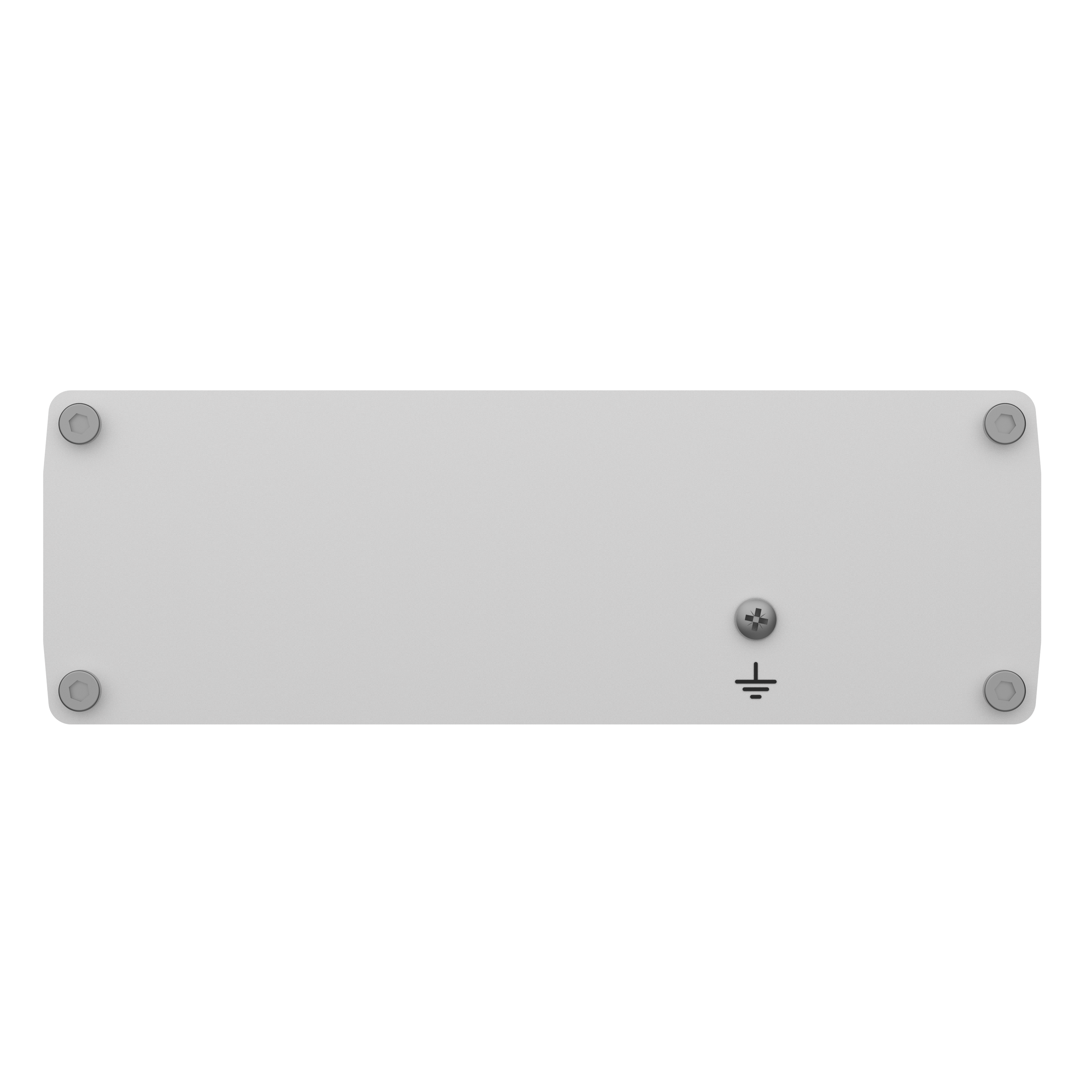

  • Other


    1 x Grounding screw


PHYSICAL SPECIFICATION

  • Casing material

    Full aluminum housing

  • Dimensions (W x H x D)

    132 x 44.2 x 95.1 mm

  • Weight

    146.5 g

  • Mounting options

    DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

Datasheet (tsw200-datasheet-v15.pdf, 1,508 Kb) [Download]

Flyer (tsw200-flyer-2022-v11.pdf, 1,573 Kb) [Download]
