Teltonika 5 Port Gigabit L2 Network Switch

Teltonika 5 Port Gigabit L2 Network Switch

L2 UNMANAGED SWITCH

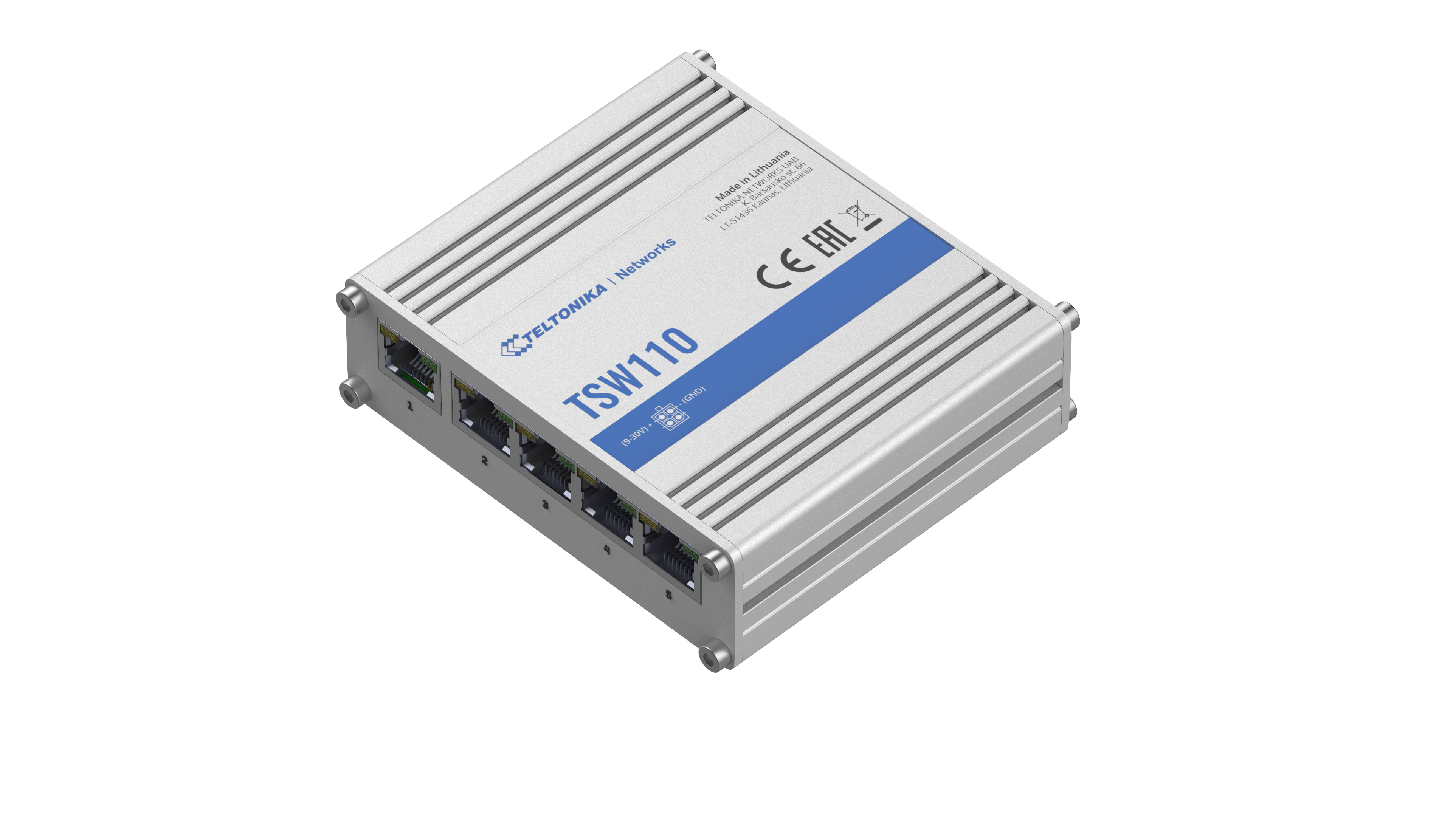

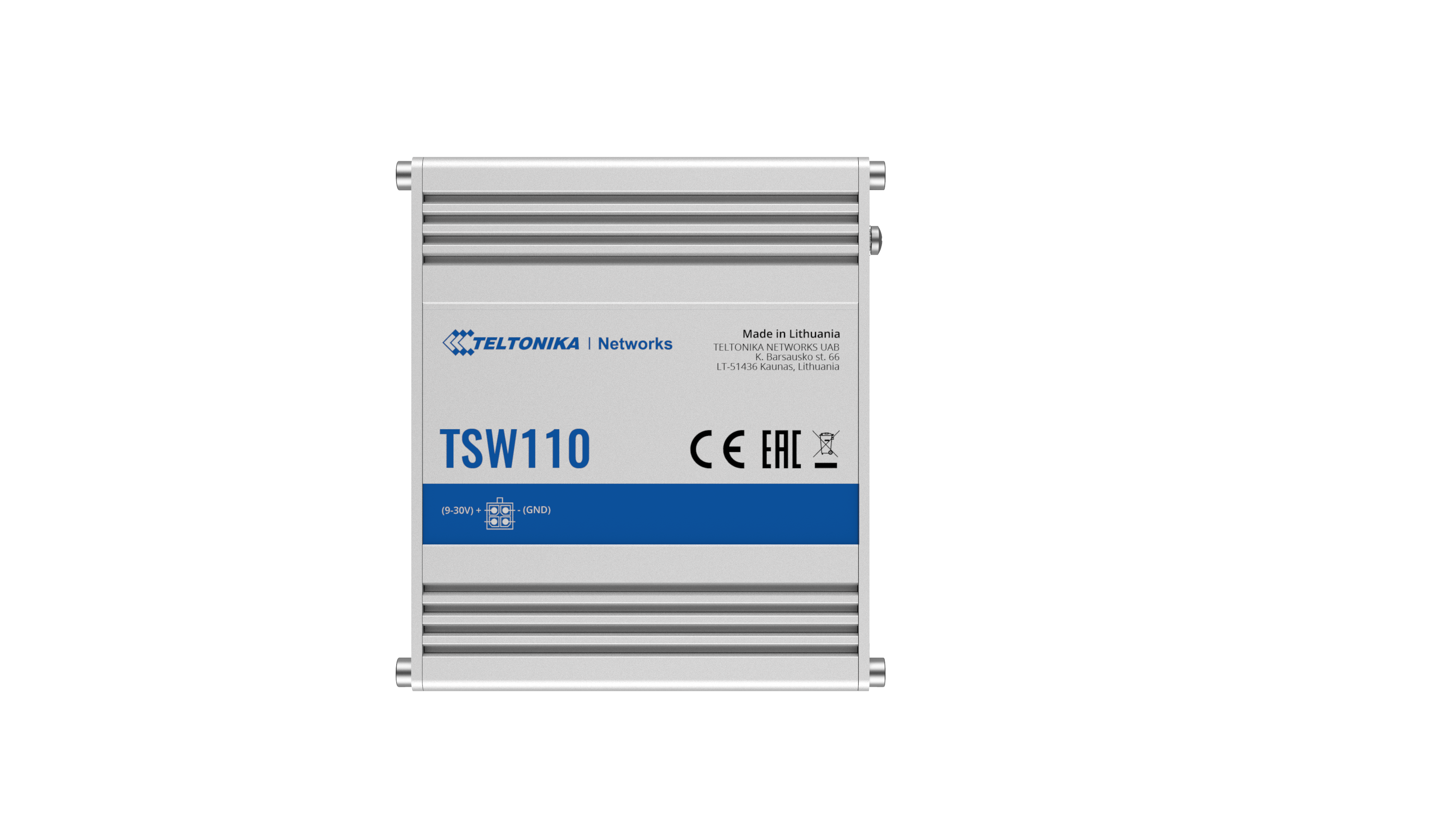

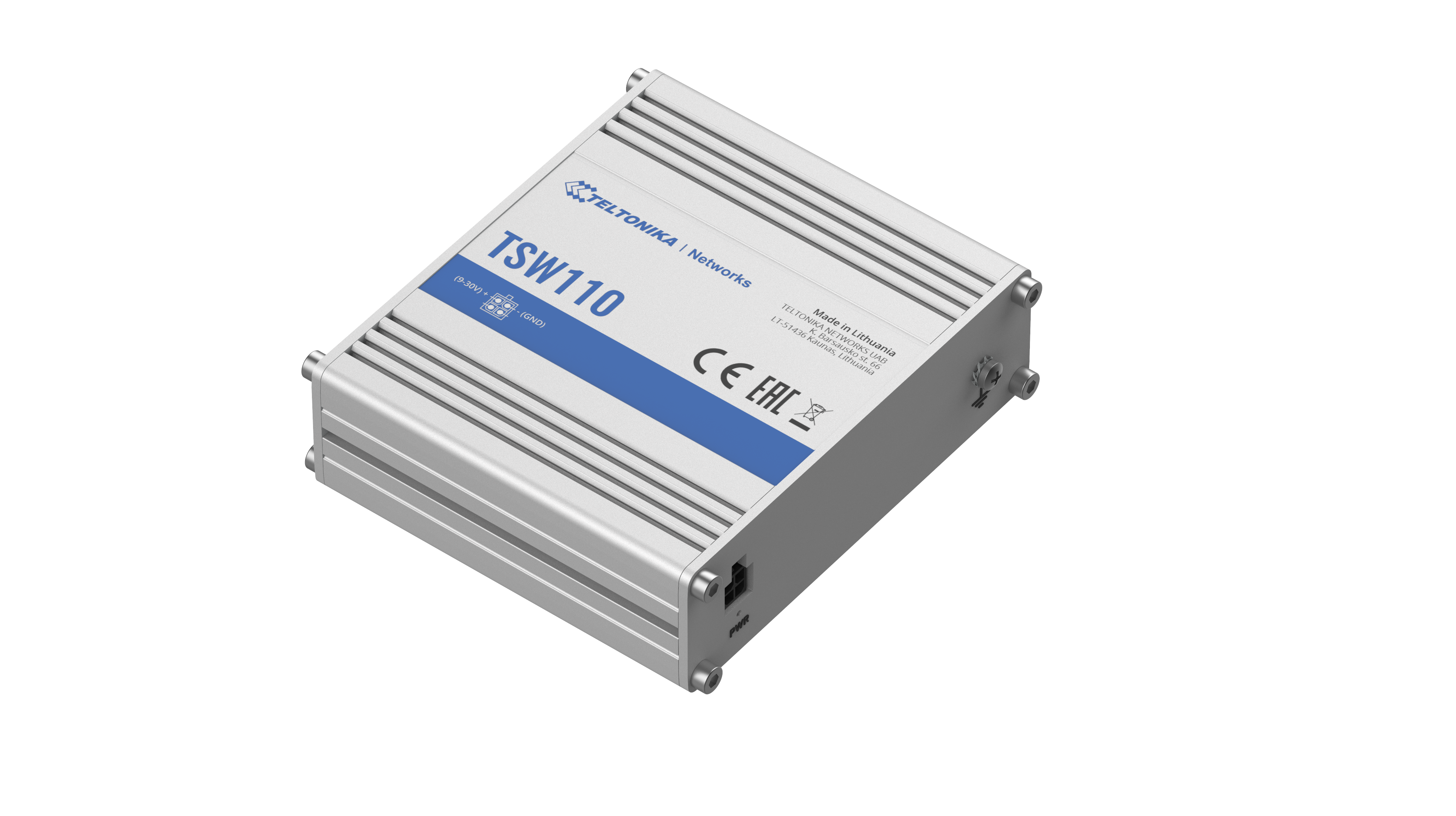

TSW110 is an unmanaged layer 2 switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).

Features:

GIGABIT ETHERNET: 5 x Gigabit Ethernet with speeds up to 1000 Mbps

DURABILITY: Rugged aluminium housing

MOUNTING: DIN rail and surface mounting options

TEMPERATURE: Operating temperature from -40 °C to 75 °C

Specifications:

ETHERNET

• LAN

5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

PERFORMANCE SPECIFICATIONS

• Bandwidth (Non-blocking)

10 Gbps

• Packer buffer

128 KB

• MAC address table size

2K entries

POWER

• Connector

4-pin industrial DC power socket

• Input voltage range

9-30 VDC

• PoE (passive)

Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

• Power consumption

< 0.4 W/ < 1.8 W

PHYSICAL INTERFACES

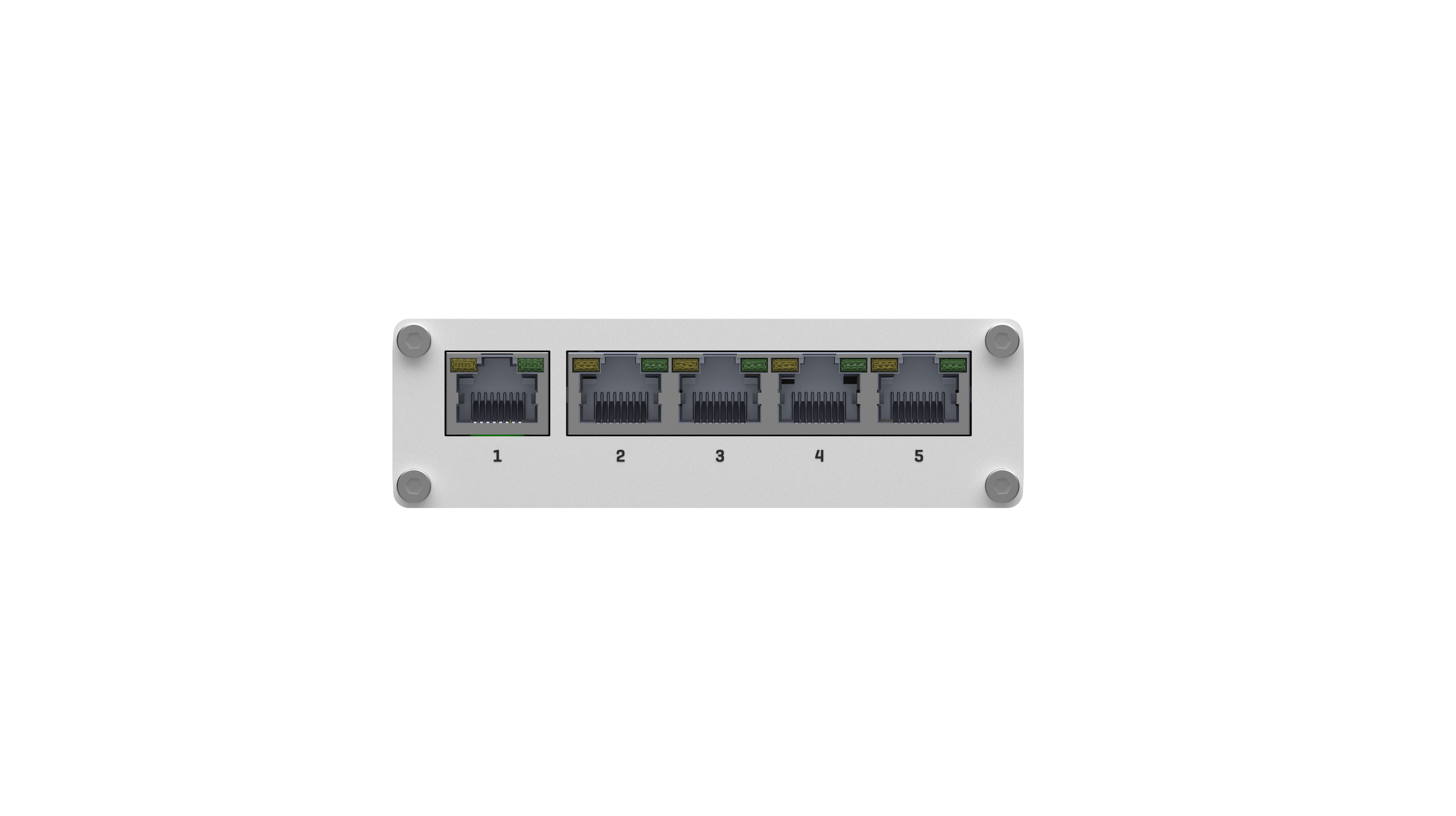

• Ethernet

5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

1 x Power LED, 10 x LAN status LEDs

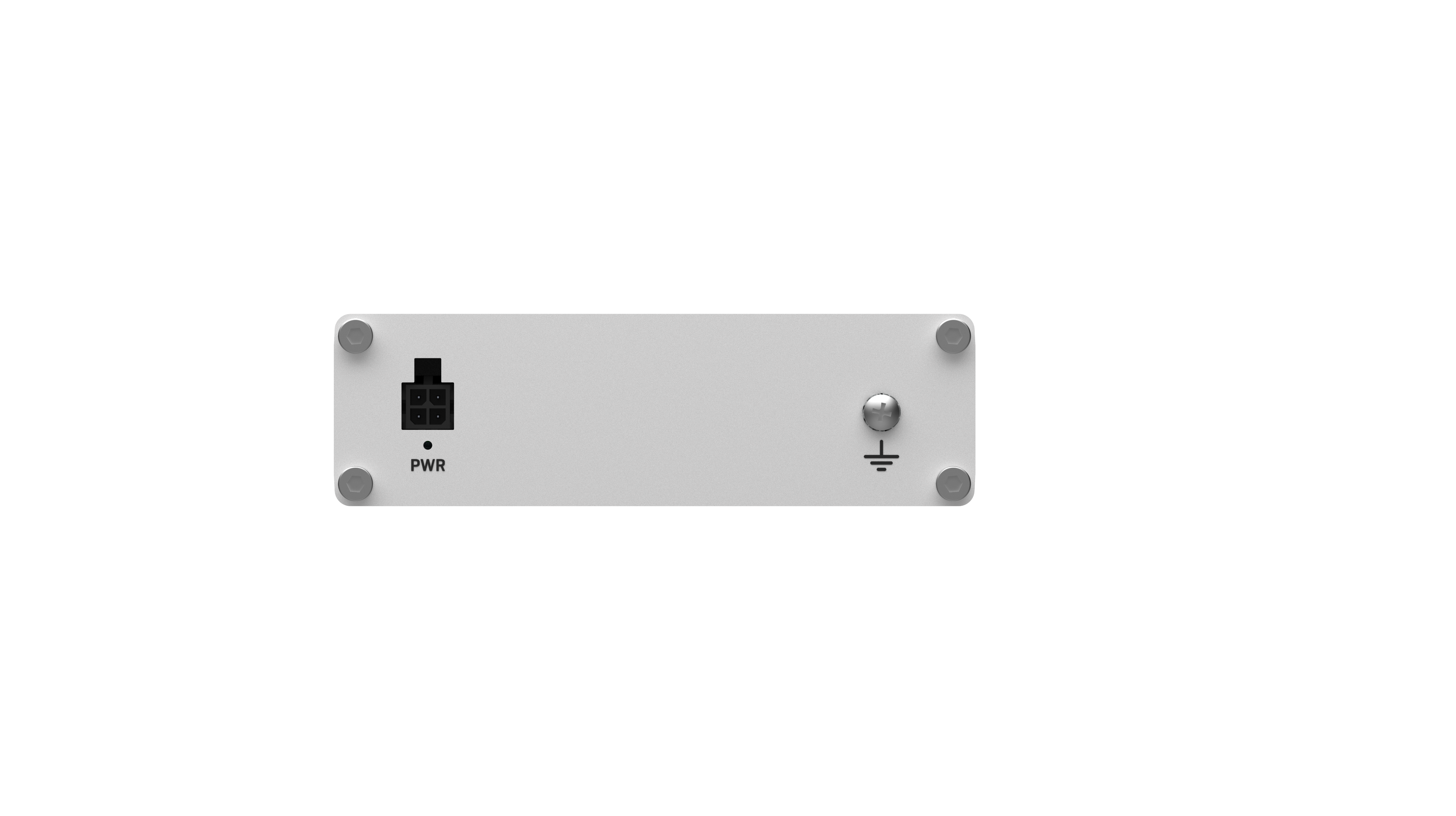

• Power

1 x 4-pin power connector

• Other


1 x Grounding screw


PHYSICAL SPECIFICATION

• Casing material

Full aluminum housing

• Dimensions (W x H x D)

100 x 30 x 85 mm

• Weight

227 g

• Mounting options

DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

• Operating temperature

-40 °C to 75 °C

• Operating humidity

10% to 90% non-condensing

• Ingress Protection Rating

IP30
