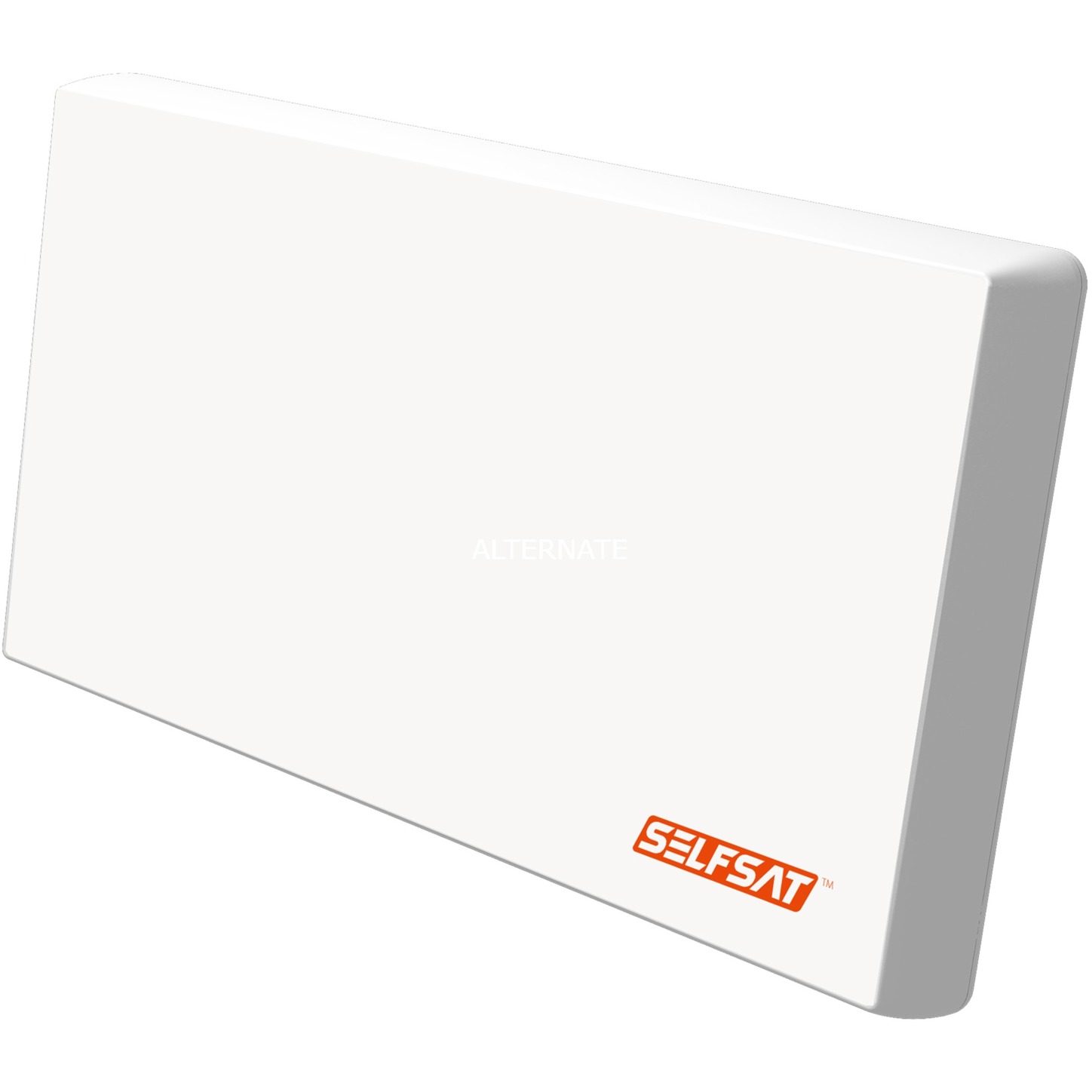

DESCRIPTION of Selfsat H22D Flat Satellite Dish (Single Output)
Aesthetic design
Improved durability
Interchangeable LNB
Dual Linear Polarization
Installation bracket to adjust skew angle
SPEC:
The reception performance of this flat satellite antenna corresponds to that of a high-quality 60cm satellite dish and is ideally suited for all satellites such as Astra 28,2 ° East, Astra 19,2 ° East, Eutelsat 13 ° East etc.
Furthermore, the H22D series triumphs due to the following special features:
Compact and thin: flat satellite antenna with integrated LNB; Dimensions only " 56.6 x 30.0 7.8 cm "(W x H x D); weight 4,9 kg
Efficient: receive performance as a 60 cm parabolic
Diverse: Adaptable and can be adapted to the design of your home
Simple: Simple and easy installation
Ideal for mobile use
Mobile and versatile
Design: Aesthetic design for houses in town and country
Discrete mounting
Receipt of all major satellite
Ideal for HD / UHD reception - 4K Ultra HD Support
Advantage over the H30D and H30D + series:
The new Selfsat H22D series offers even better reception performance than the H30D / H30D +. Furthermore, the H22D has a replaceable LNB. This means you can easily replace the LNB in the event of a defect without buying a completely new satellite antenna. Furthermore, the H22D + series can be adapted to the current reception needs at any time, eg through the easy replacement of the Twin LNB with a single, quad or Quattro LNB.
Technical details:
Frequency
10.7 ~ <span class='notranslate'>12.7 5 </ span> GHzz
Polarization
Vertical & Horizontal
Received power
34.5 dBi @ 12.7 GHz
Dimensions (LxWxH)
566 x 300 x 78 mm
LNB frequency
950 - 1,950 / 1,100 2,150 MHz
Operating
-30 ° C ~ +60 ° C
Weight
4,9 kg
Current consumption
150ma (Max)
Operating
-30 ° C to + 60 ° C
Storage temperature
-40 ° C to + 80 ° C
LNB output
LNB exchangeable (single / twin / quad)
Changeover low / high
0 KHz / 22 KHz
LNB output frequencies
950 - 2,150 MHz
LO frequencies
9.75 GHz / 10.6 GHz
LNB volume at 25 ° C
0,2 dB as a rule
Entrance Standing Ratio (VSWR)
2.5 : 1 as a rule
Output Standing Ratio (VSWR)
2.5 : 1 as a rule
Conversion Gain
60 dB typical
Gain Flatness
6 dB pp (max)
PSU
12-14V DC (vertical) / 16-19V DV (horizontal)
Included:
Selfsat H22D flat antenna with single LNB
Changeable LNB
Mast bracket with mounting clamp
Wall Mount
Stand
Assembly Instructions
Screw Set
Tool
