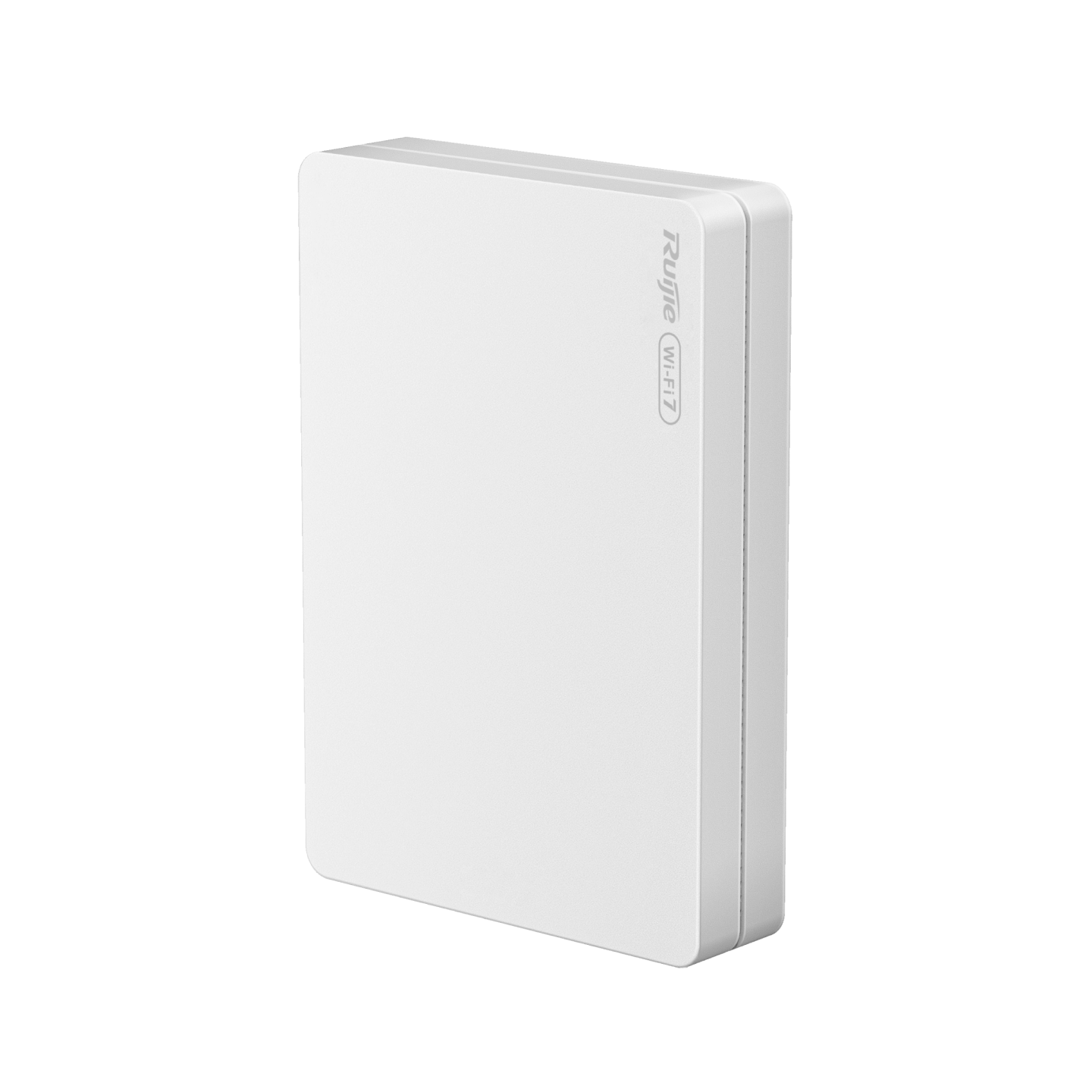

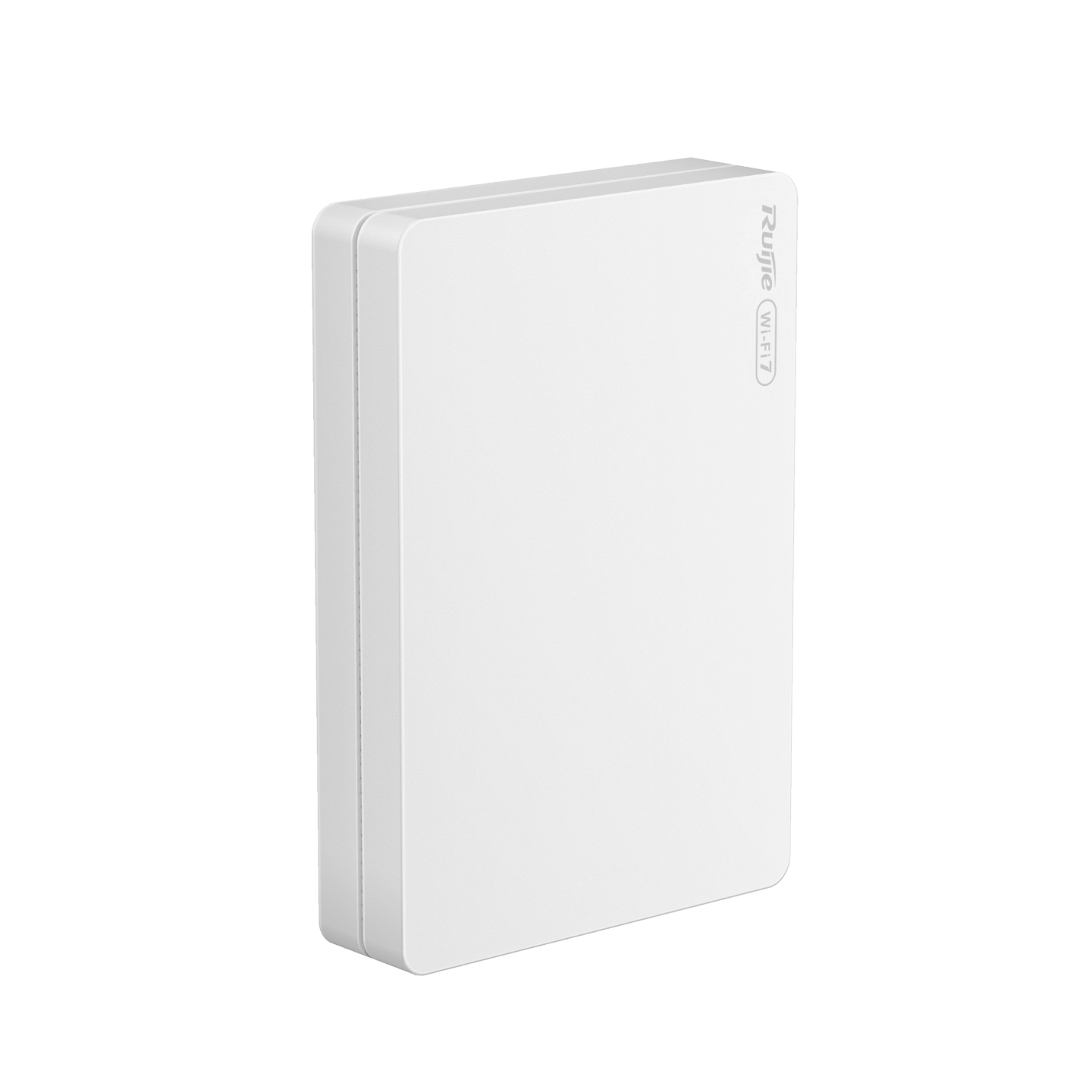

Wall-Mount Wi-Fi 7 Access Point with 2.5GbE Uplink
The RG-RAP72-WALL is a compact, high-performance Wi-Fi 7 (802.11be) access point designed for high-density, room-based deployments. Built for hotels, apartments, dorms, and modern offices, it combines next-gen wireless, 2.5G uplink, and PoE passthrough into one powerful and elegant wall-mounted unit.
Technical Specification
Wi-Fi Standard | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
Bands | Dual-band concurrent: 2.4 GHz + 5 GHz |
Total Wireless Throughput | 3.57 Gbps |
- 2.4 GHz | 688 Mbps |
- 5 GHz | 2882 Mbps |
Spatial Streams | 2×2 MIMO on both bands |

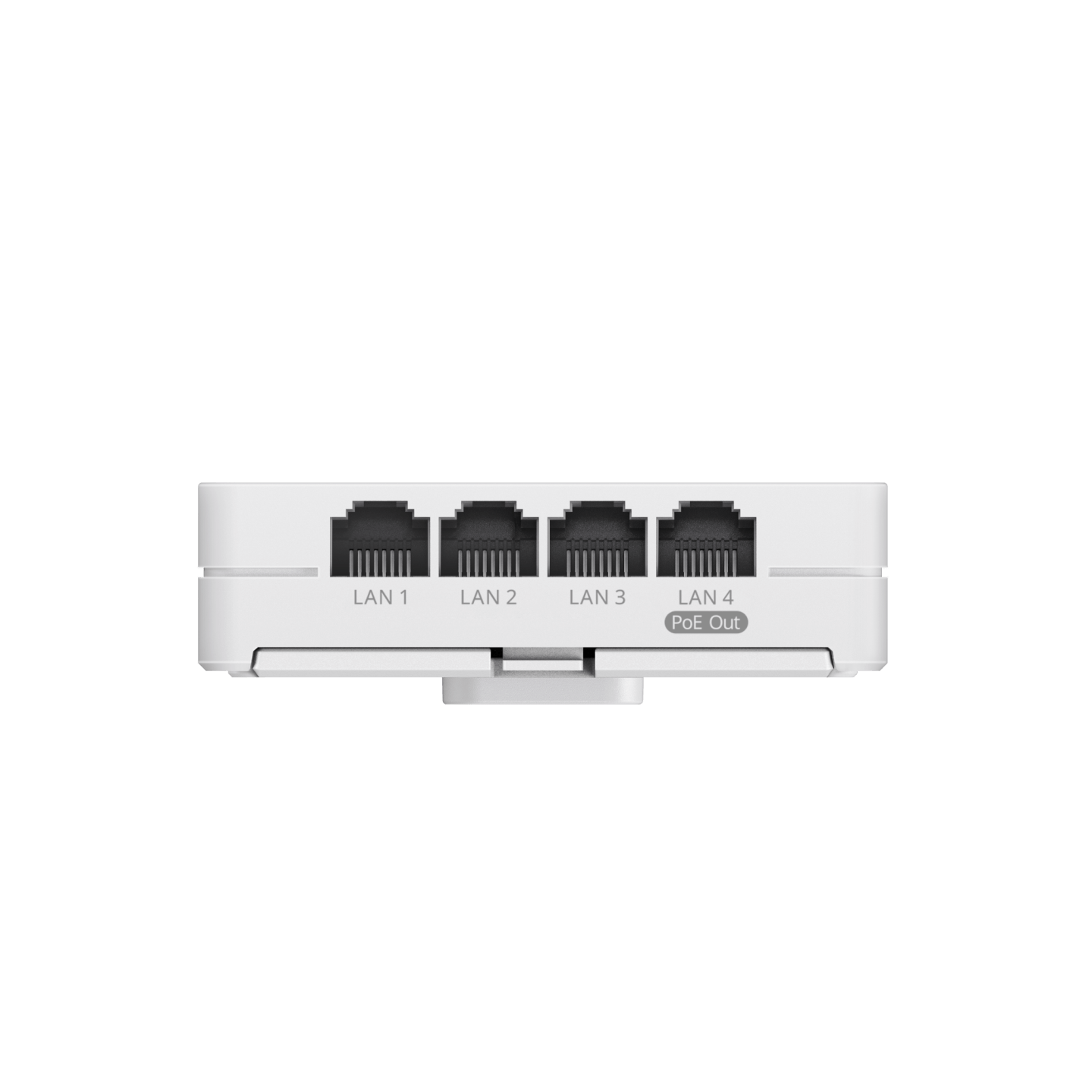

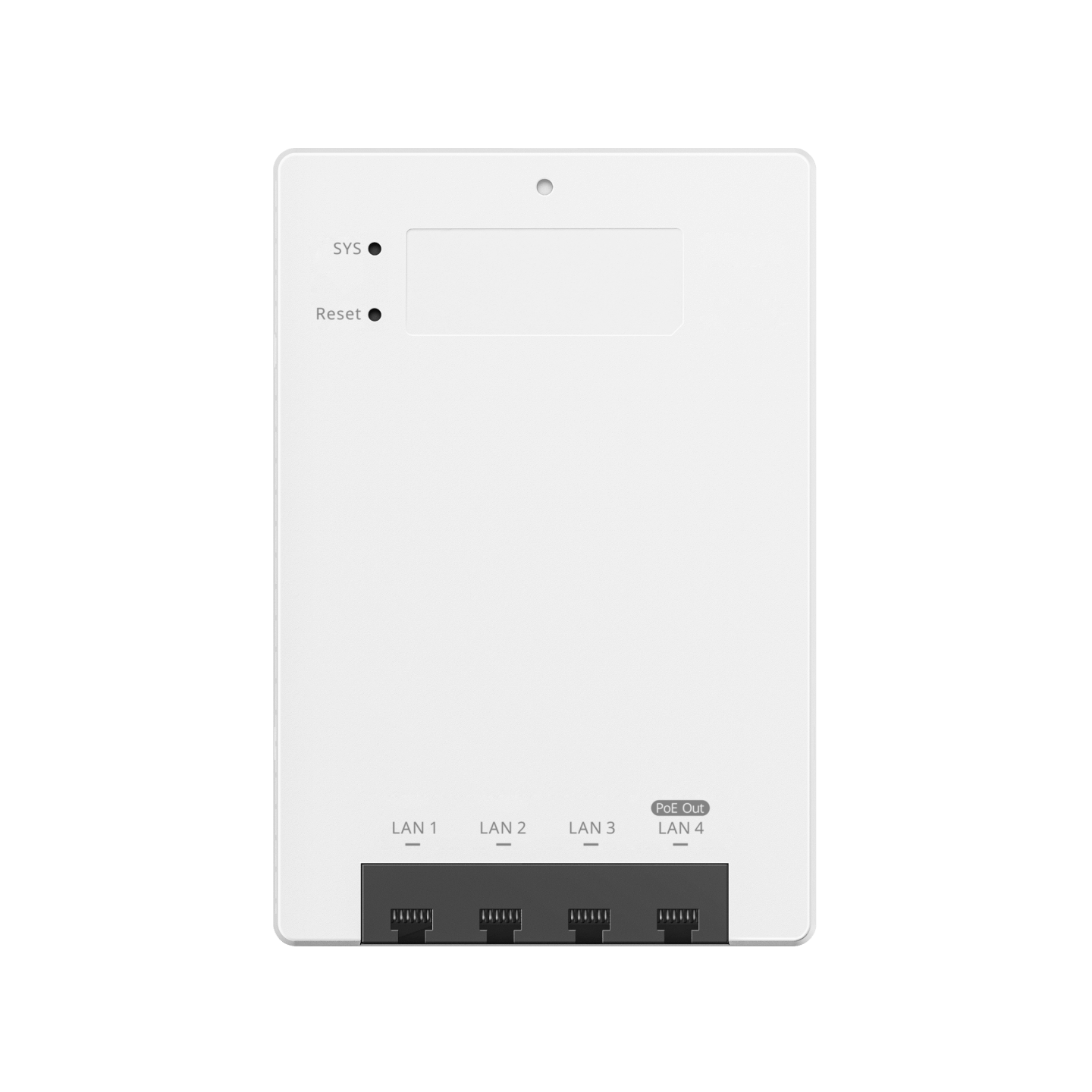

Ethernet Ports | 5 total ports |

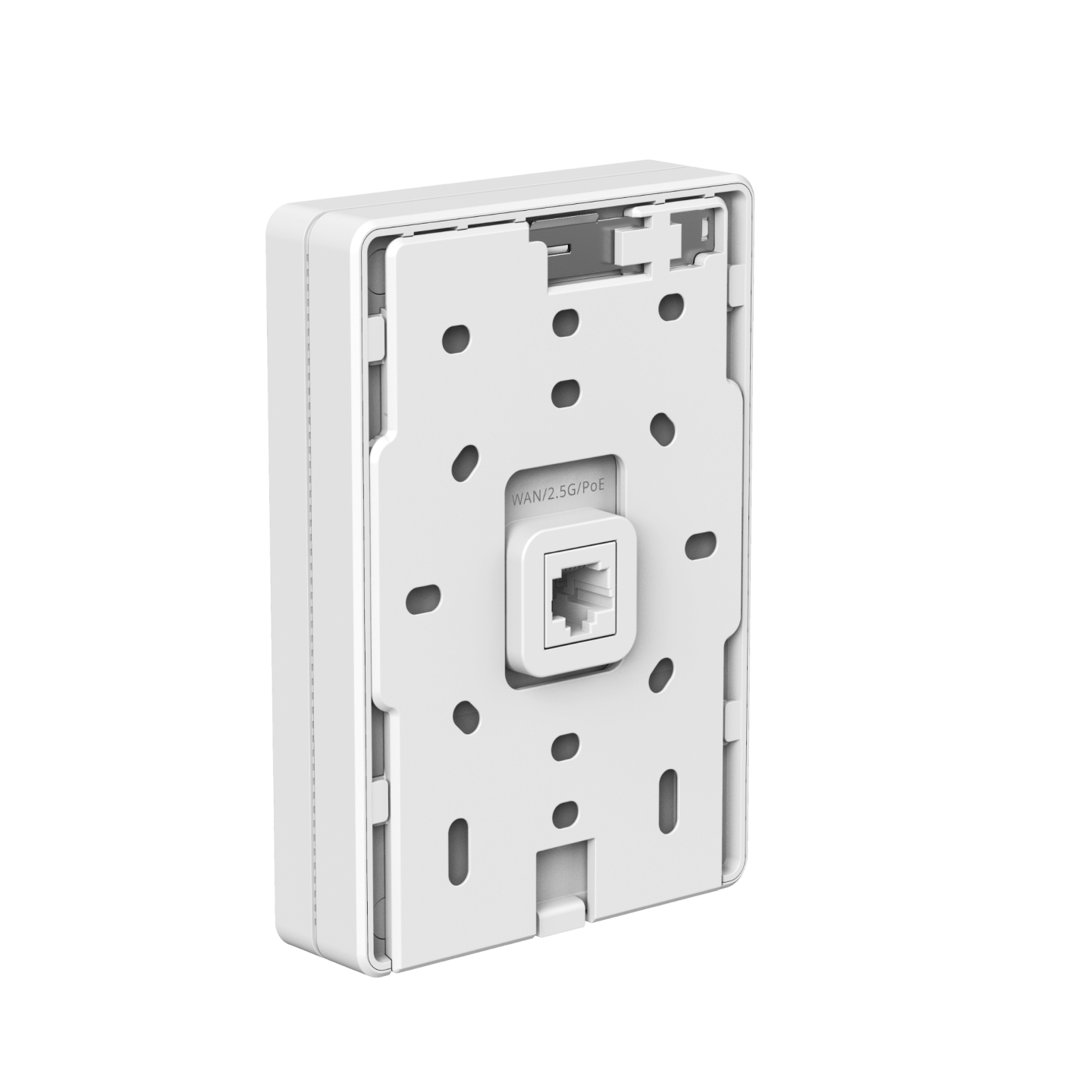

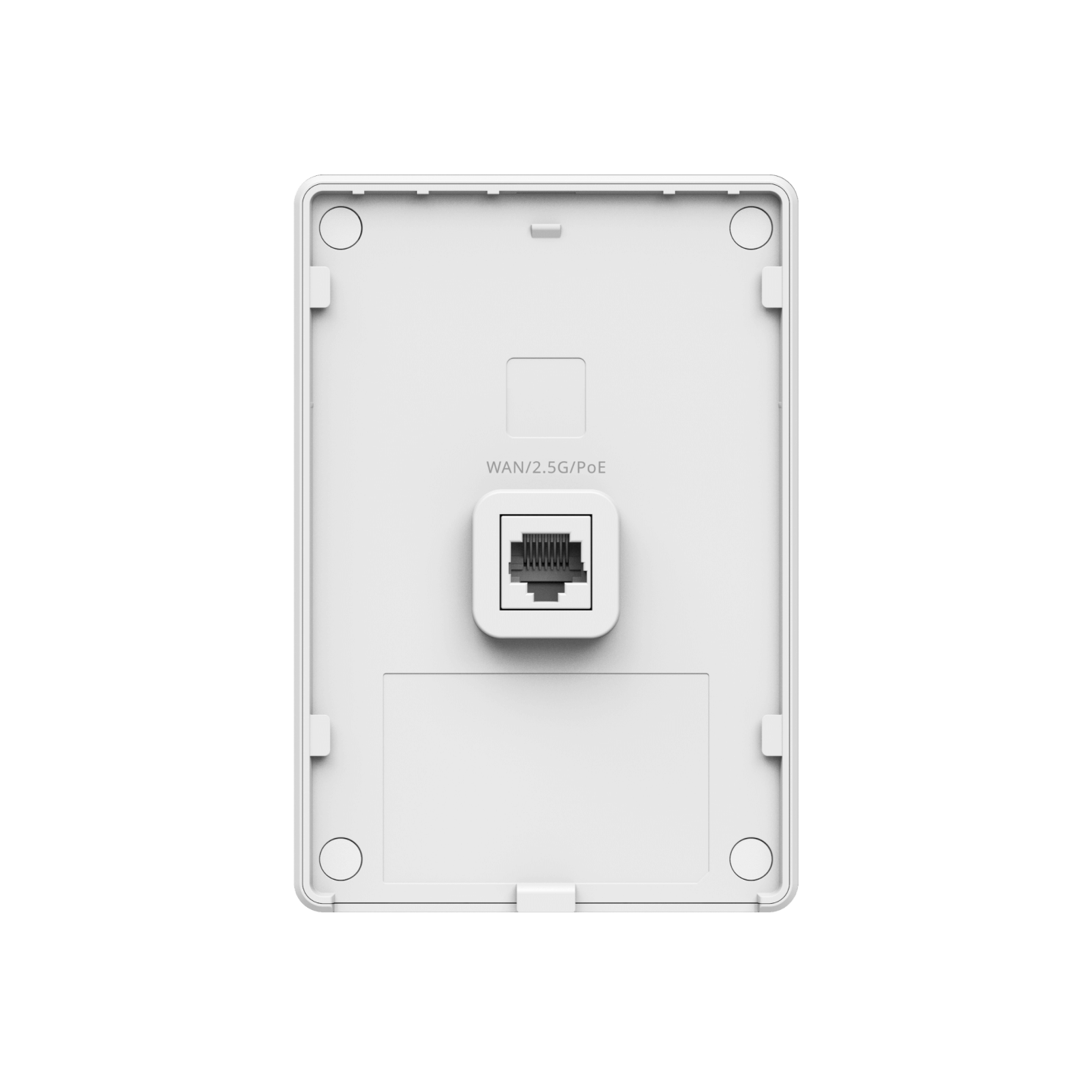

- 1 × 2.5G uplink (PoE in) | |
- 3 × 1G LAN ports | |
- 1 × 1G LAN port with PoE out (802.3af) | |
PoE In | 802.3af/at via 2.5G uplink port |
PoE Out | 802.3af via dedicated LAN port (max 12.95W) |
Max Wireless Clients | Up to 768 (recommended ≤ 100) |
Mounting | Wall-mount (standard 86mm electrical box) |
Power Consumption | <12.95W (excluding PoE output) |
Dimensions | 145mm × 95mm × 29mm |
Management | Ruijie Cloud, Reyee App, Web UI |
Key Features
- True Wi-Fi 7 Performance: Higher capacity, reduced latency, and superior efficiency with 802.11be
- 2.5GbE Uplink: Supports ultra-high-speed backhaul for demanding multi-client environments
- Built-in 5-Port Switch: Perfect for IPTV, VoIP phones, and in-room wired connections
- PoE Out Capability: Power devices like IP phones directly from the AP
- Zero-Touch Provisioning: Simplified deployment via Ruijie Cloud or Reyee mobile app
- Sleek Wall-Mount Form: Installs cleanly in any room using standard 86mm boxes
