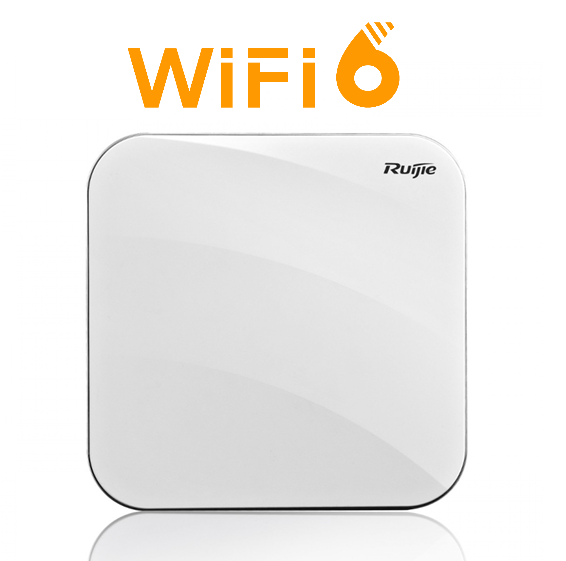

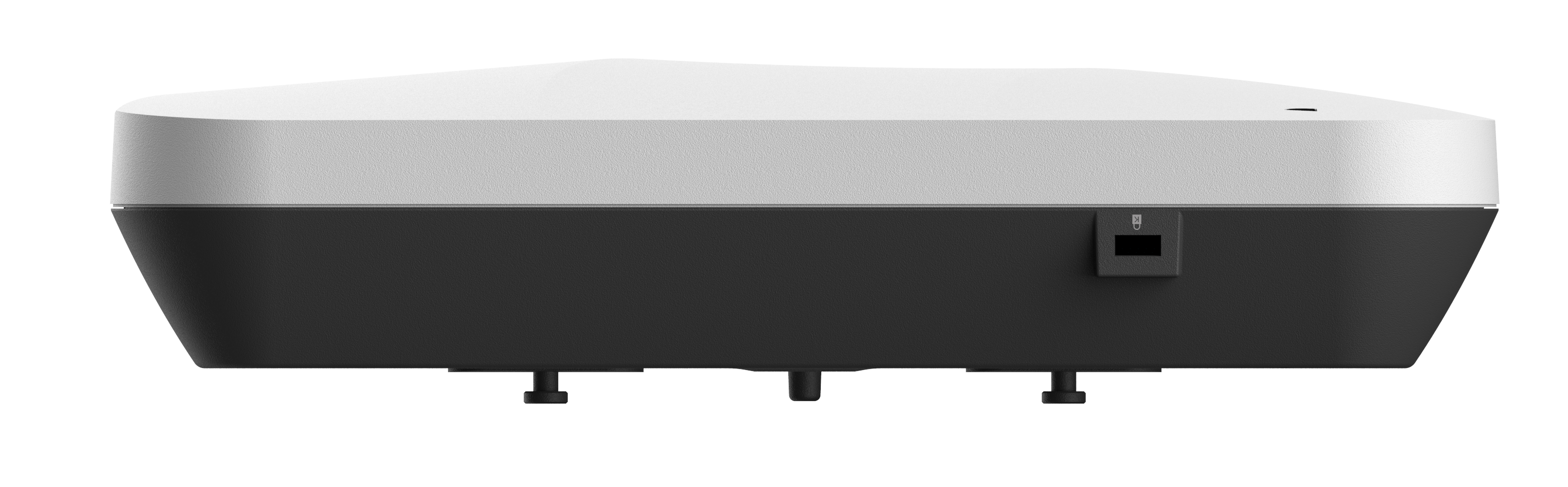

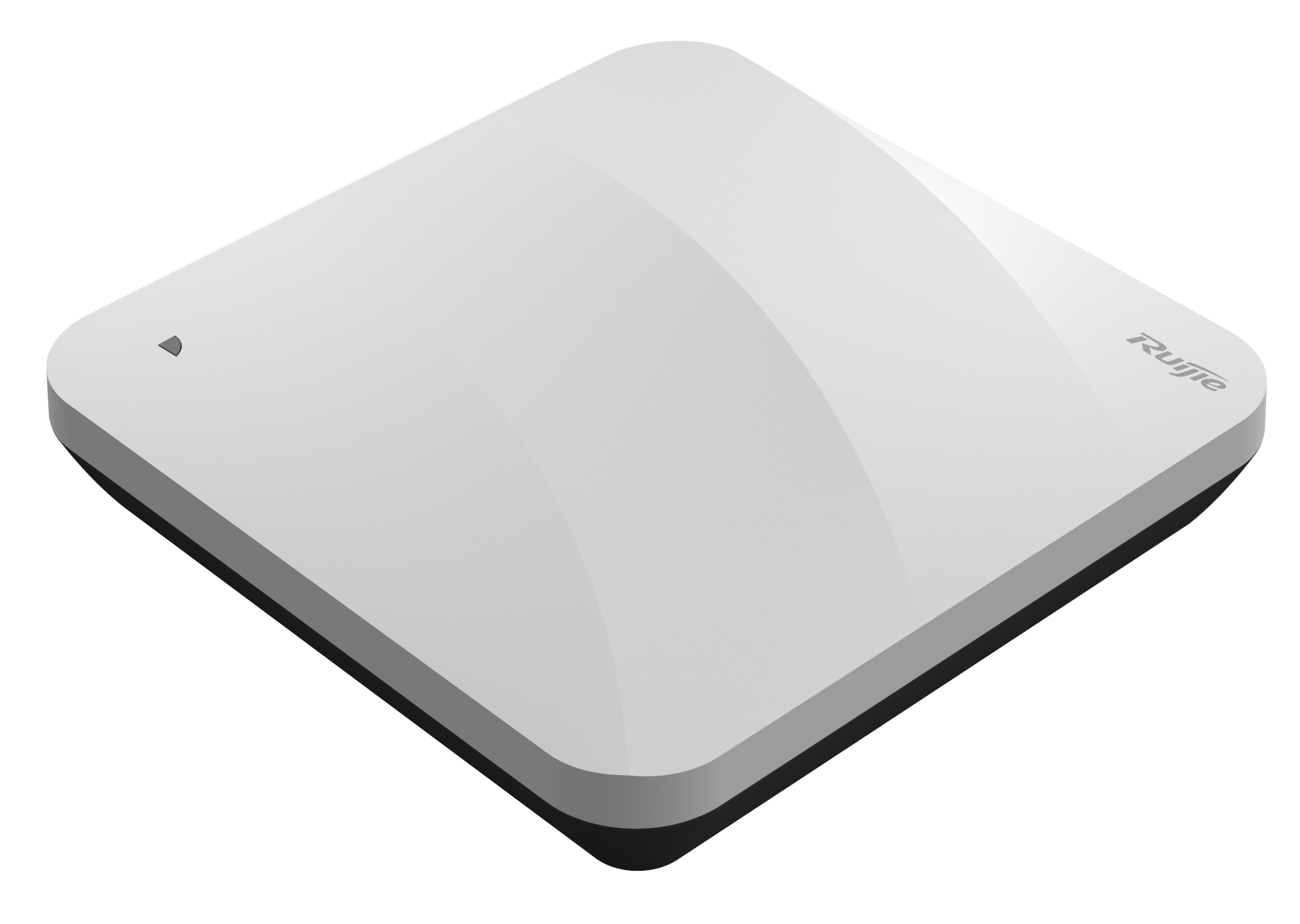

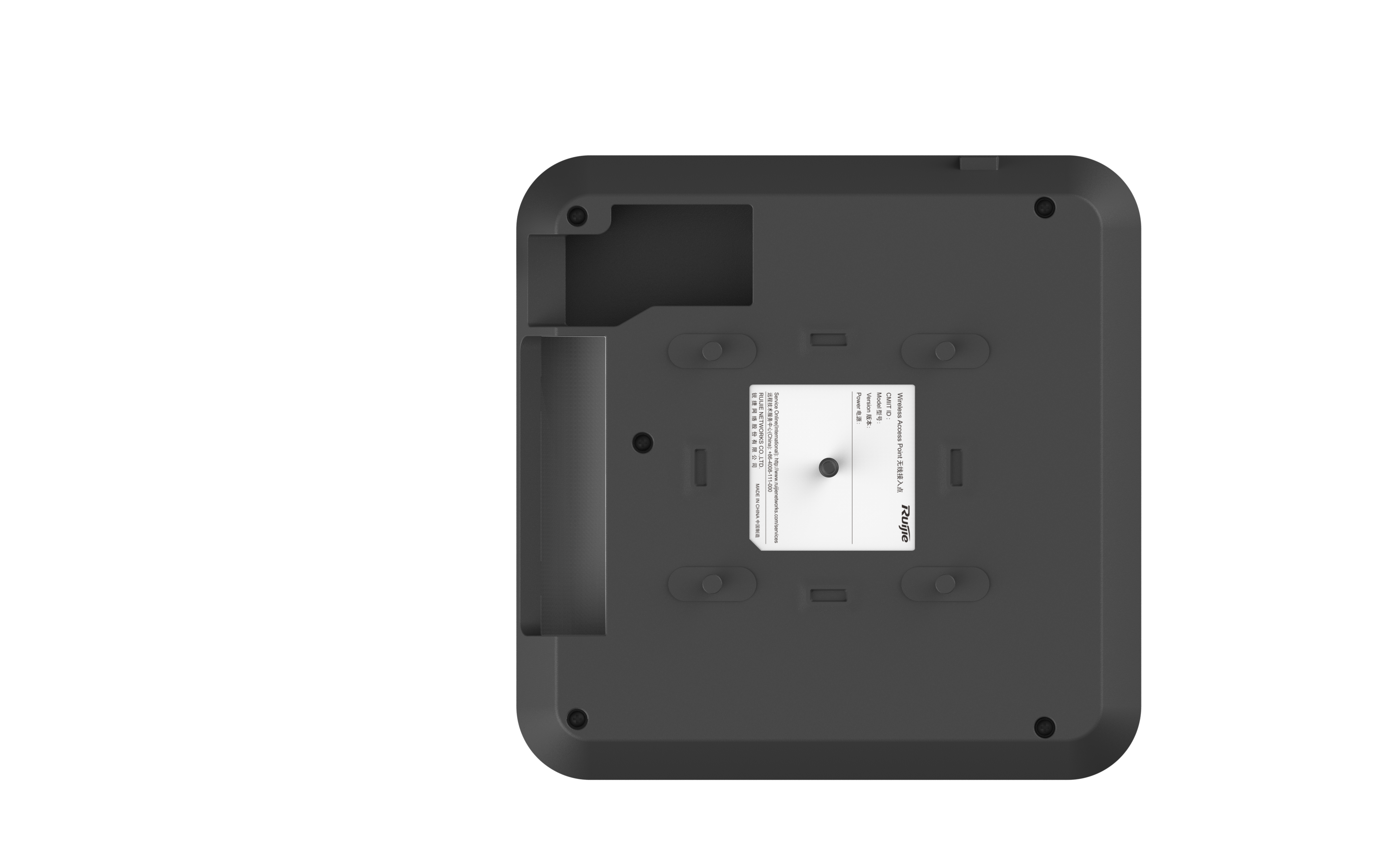

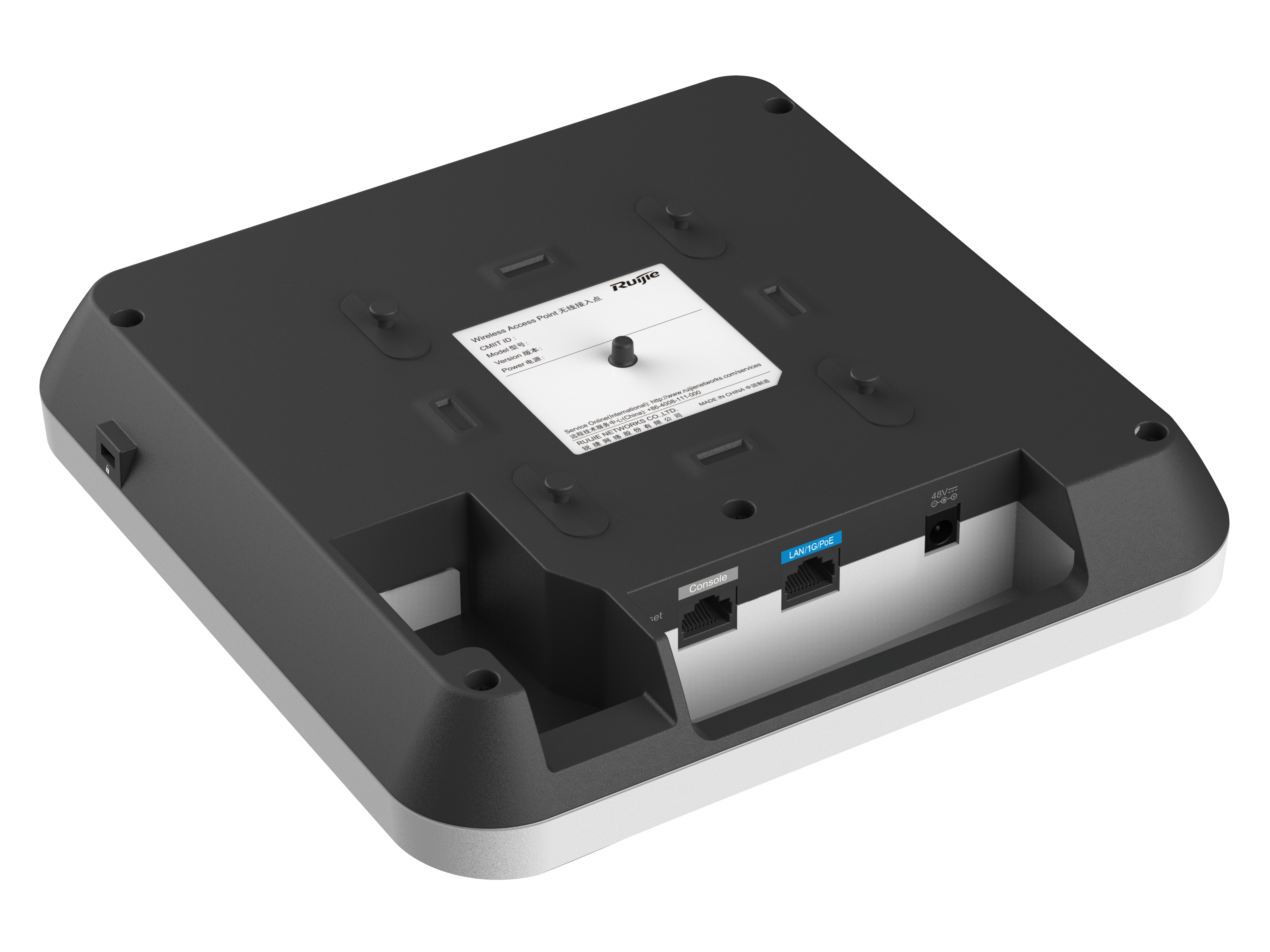

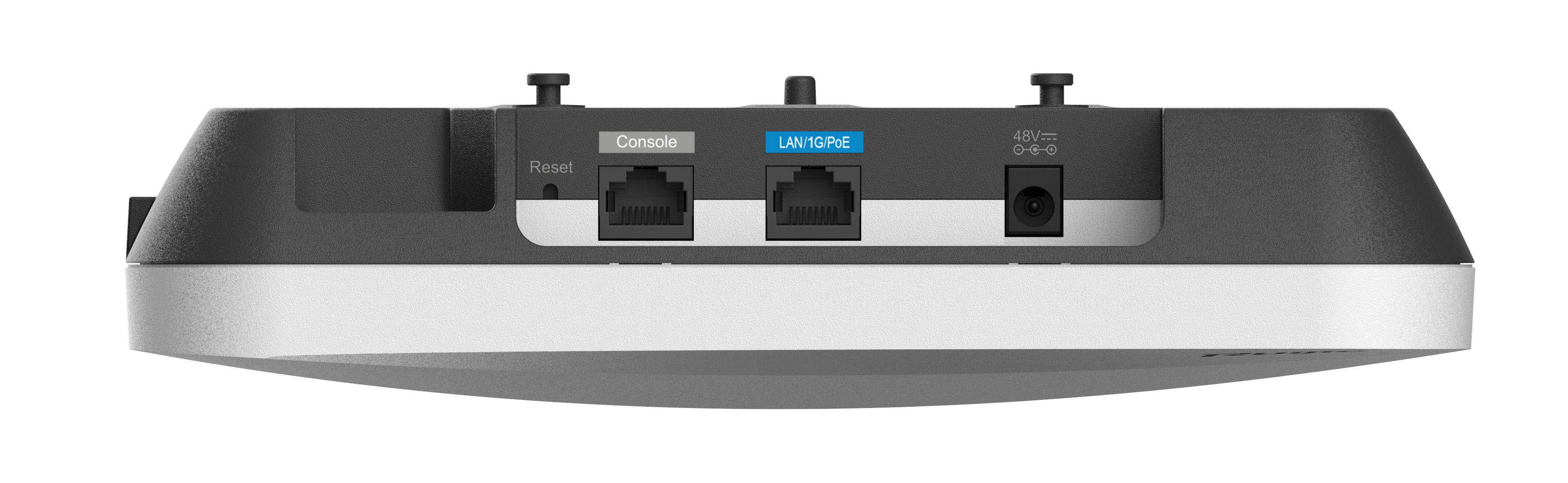

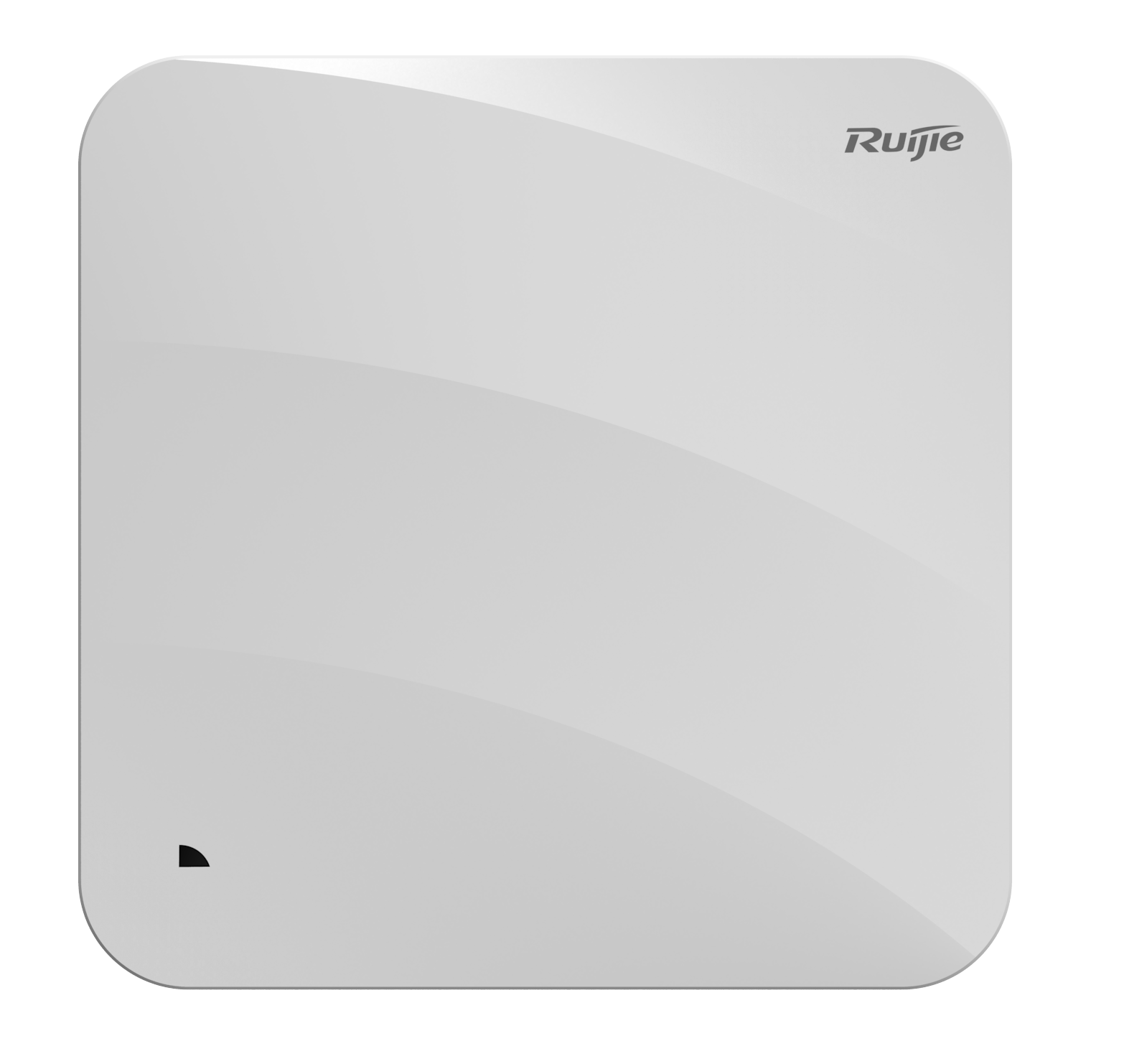

Ruijie RG-AP810-L Wi-Fi 6 AX1800 SME Access Point
Ruijie RG-AP810-L is a cost-effective entry level wireless access point with Wi-Fi 6 dual-radio, dual-band design. It not only has the simplicity and flexibility for small and medium sized enterprise, but the features, functionality, and performance quality to scale up to large-enterprise network deployments.
Ruijie RG-AP810-L supports maximum of 1.775Gbps wireless throughput when 80MHz bandwidth in 5G radio mode adopted (HE80). It fully complies with Wi-Fi 6 features and guarantees minimal signal interference and maximum 512 clients.
Highlights:
1. Maximum ROI (Lifetime free cloud management & WIS optimization service)
2. HE80 Supported for Higher Throughput with Latest Wi-Fi 6 Chipsets
3. Hybrid Management (Cloud / Controller / Standalone)
4. Automated Radio Optimization by Artificial Intelligence
5. 3-Year Hardware Warranty
High Speed Wi-Fi 6 and Energy Saving
1024-QAM High-speed Access
RG-AP810-L adopts the dual-radio dual-band design. With the next-generation 802.11ax for 5GHz band, the maximum access rate can reach 1.201Gbps. If dual-radio is enabled concurrently, the high-speed Wi-Fi throughput can reach 1.775Gbps, offering the true high-speed experience.
OFDMA High-density User Access
RG-AP810-L supports OFDMA of 802.11ax, which divides the WLAN channel into plurality of narrower sub channels, with each user occupying one or more sub channels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency, and improving network efficiency. In a high-density deployment environment, the average rate per user is increased by four times compared with Wi-Fi 5 devices.
Spatial Reuse with BSS Color
RG-AP810-L supports spatial reuse with basic service set (BSS) color of 802.11ax. It marks the BSSs of different WLANs in the network by different color identifiers (BSS color), and further divides them into internal and external BSS. Packet receiving and sending thresholds for the internal and external BSS are maintained separately. When receiving packets, the BSS color is retrieved to quickly identify the packets of the external BSS. If the signal strength is lower than the receiving threshold of the external BSS, the packet will be ignored. At the same time the transmission of the internal BSS packet will not be affected. This technology enhances channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.
Performance Boost from Wi-Fi 5
RG-AP810-L provides considerable performance boost even in an environment with Wi-Fi 5 only user devices. This means RG-AP810-L is not only future-proof but also able to provide instant improvement over the Wi-Fi 5 APs.
Energy Saving for Green and Low-carbon Network
Several energy saving technologies have been used in RG-AP810-L, such as single antenna standby, dynamic MIMO, enhanced auto power-saving transmission and packet power control. With the high-performance power circuit design, RG-AP810-L is able to save energy while providing high-speed wireless access.
Industry-leading Local Forwarding Technology
Employing an industry-leading local forwarding technology, RG-AP810-L breaks through the limitation of traffic bottleneck of wireless controllers. In collaboration with the RG-WS wireless controller series, users can flexibly pre-configure the data forwarding mode for RG-AP810-L. The AP also controls whether the data will be forwarded via the wireless controller according to the SSID and user VLAN, or directly sent to the wired network for data exchange.
The local forwarding technology can classify and forward time-sensitive data which requires real-time transmission through the wired network, in order to greatly alleviate the traffic pressure on the wireless controllers and meet the need of high traffic transmission requirements of the 802.11ax standard network.
Abundant QoS Policies
RG-AP810-L supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations and Wi-Fi multimedia (WMM) which defines different priorities for different service data. RG-AP810-L realizes timely and quantitative transmission of audio/video and guarantees smooth operation of multi-media applications.
With the multicast-to-unicast technology, RG-AP810-L resolves the video lagging problem due to packet loss or high latency, and greatly enhances user experience of the multicast video services of the wireless network.
Comprehensive Security Protection
Secure User Access
RG-AP810-L supports a wide range of authentication methods such as web, 802.1X, PPSK (one-time dynamic password), voucher/access code, user account and social authentication (Ruijie Cloud Required). Being complied with the standard NAC, it offers a set of control policies in terms of authentication, authorization, device compliance check, and network attack detection/prevention etc. All these features guarantee high network security for authenticated users.
Various enterprise authentication options for guest and employees
Personal Pre-Shared Keys (PPSK)
Traditional Pre-Shared Keys (PSK) shared by all users on a WLAN have high risk of PSK leak. Ruijie Personal PSK (PPSK) is an easy-to-setup wireless authentication method with enterprise-grade security level. Credentials can be created and revoked individually. Each PPSK can also be tied to a unique user/machine.
With PPSK, the benefits are:
- High security by providing different passwords for each user and device for the same SSID
- Simple deployment with batch account creation
- Ease of use, offering the same experience as WPA/WPA2-PSK
- Out-of-box feature in Wireless Access Controller and Ruijie Cloud Service
- No Additional AAA server required
Simple and effective wireless security practice
Virtual AP Technology
With the virtual AP technology, RG-AP810-L supports up to 16 ESSIDs. Network administrator can separately encrypt and isolate VLANs or subnets of the same SSID, thereby enabling specified authentication mode and encryption mechanism for each SSID.
Comprehensive Wireless Protection
Coupled with RG-WS series wireless controllers, RG-AP810-L offers a breadth of security features include WIDS (Wireless Intrusion Detection System), RF interference tracking, rogue AP containment, anti-ARP spoofing, DHCP protection and beyond for all-around security protection.
Hybrid Management
Flexible Management Options
All Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat Mode) or managed AP (Fit Mode and Cloud Managed Mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation features, the enterprise customers can choose one of the below options depending on the functionality and capacity needed.
|
Category |
Standalone AP |
Wireless Controller (RG-WS Series) Hybrid Mode Available |
Public Cloud |
|
Target Segment |
Small Office |
Enterprise, Hospitality, Education, Large Campus Network |
Small and Medium Enterprise, Managed Service Provider |
|
Deployment Mode |
On-premises |
On-premises |
Cloud Service |
|
Device Capacity |
N/A |
Up to 5000 |
Virtually Unlimited |
|
Unified Management |
N/A |
AP Only |
AP, Switch, Gateway |
|
Radio Optimization |
N/A |
Y |
Y |
|
Employee Authentication |
Basic PSK |
PSK, PPSK, 802.1X |
PSK, PPSK, 802.1X, Access Code, Account |
|
Guest Authentication |
Basic PSK |
Basic Captive Portal |
Customized Captive Portal, Social Media Login, Voucher |
|
Reporting |
N/A |
N/A |
Y |
|
Mobile APP |
N/A |
Y |
Y |
Web and CLI Management Interface
RG-AP810-L provides both web and command-line interface (CLI) for the AP and wireless controller, suitable for application in different scenarios. CLI design allows the networking professionals to perform fast troubleshooting and bulk configuration import/modification. Web GUI management is best suited for most of the general planning, operation, and maintenance, thus eliminating room for human error.
Mobile Monitor and Optimization
Simple network management experience can be obtained by using the free Ruijie Cloud mobile app. It features unified device lifecycle management, not only for access points but also for switches and security gateways. It simplifies device provisioning, monitoring, configurations and optimizations. For details visit official website at https://www.ruijienetworks.com/products/smb/cloud-service/cloud-service/ruijie-cloud-solution/mobile-app
Antenna Patterns
Horizontal Planes (Top View)
Below are the RG-AP810-L 2.4GHz and 5GHz azimuth antenna patterns:
RG-AP810-L 2.4GHz (Left) and 5GHz (Right) azimuth antenna patterns
Vertical (Elevation) Planes (Side View, AP Facing Down)
Below are the RG-AP810-L 2.4GHz and 5GHz elevation antenna patterns:
RG-AP810-L 2.4GHz (Left) and 5GHz (Right) elevation antenna patterns
