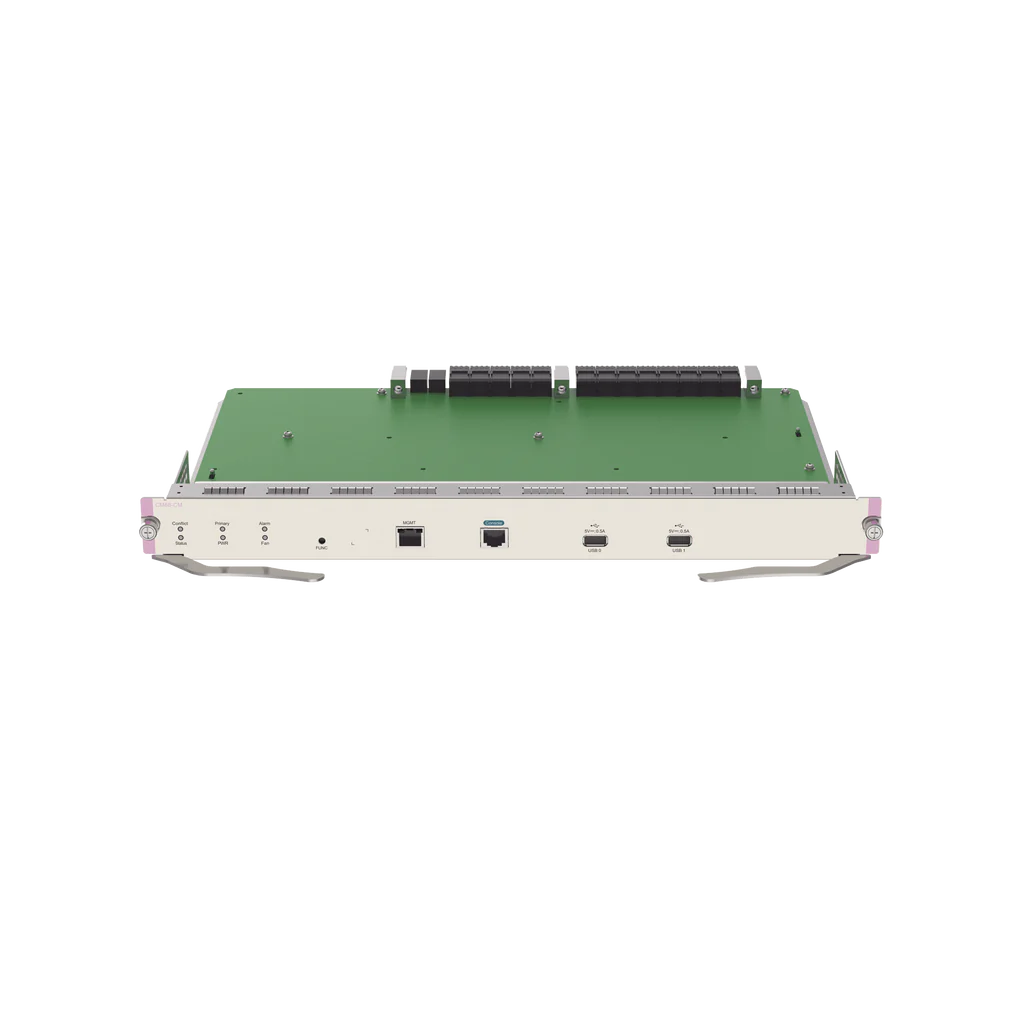

CM88-CM is the supervisor module designed for the RG-CS88-08 series chassis switches, providing core management and switching functions critical for high-performance enterprise networks. This module ensures smooth operation, intelligent control, and streamlined management of the entire switch chassis.
Key Features and Details:
Module Overview:
- Purpose: Handles both management and high-speed switching operations.
- Hot-Swappable: Allows for seamless module replacement without disrupting the system.
- Compact Design: Optimized dimensions for easy integration into the RG-CS88-08 chassis.
External Ports:
- USB Port:
- Supports external storage devices for software upgrades.
- Ensures compatibility with most high-quality USB drives (2.0 standard recommended).
- Console Port:
- RS-232 interface using an RJ-45 connector.
- Enables system commissioning, configuration, maintenance, and software loading.
- 10/100/1000 Mbps MGMT Port:
- Standard RJ-45 connector.
- Facilitates Ethernet-based management and program loading.
LED Indicators:
- Provide real-time feedback on the module and chassis status:
- Conflict Status: Compatibility of installed modules.
- System Status: Initialization and operational status.
- Primary Status: Indicates if the module acts as the primary supervisor.
- Alarm Status: Highlights faults or temperature thresholds.
- Fan Status: Displays fan position and operational state.
- Power Status: Indicates power module functionality.
- MGMT Port LED: Reflects connectivity and data transmission for the MGMT port.
Specifications:
- CPU: Quad-core (1.5 GHz per core).
- BootROM: 16 MB with redundancy.
- Memory:
- Flash Memory: 8 GB.
- DDR4 RAM: 4 GB.
- Ports:
- 1 x Console Port.
- 1 x MGMT Port.
- 2 x USB 2.0 Ports (supports all tested capacities up to 32 GB).
- Power Consumption: <50 W.
- Dimensions: 438.5 mm x 309.0 mm x 40.1 mm (17.26 in. x 12.17 in. x 1.58 in.).
- Weight: 2.1 kg (4.63 lbs).
- MTBF (Mean Time Between Failure): 960,000 hours (~109 years).
