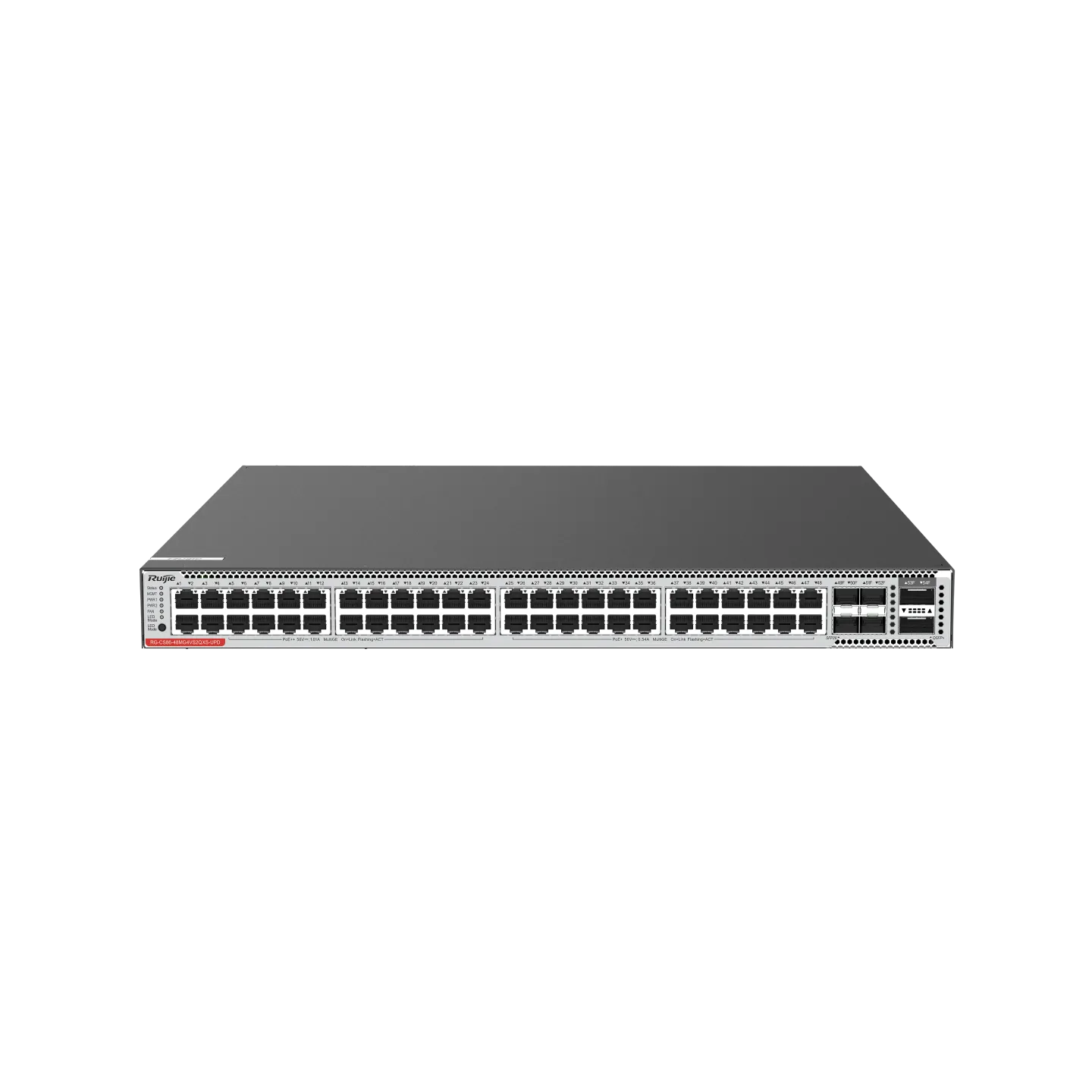

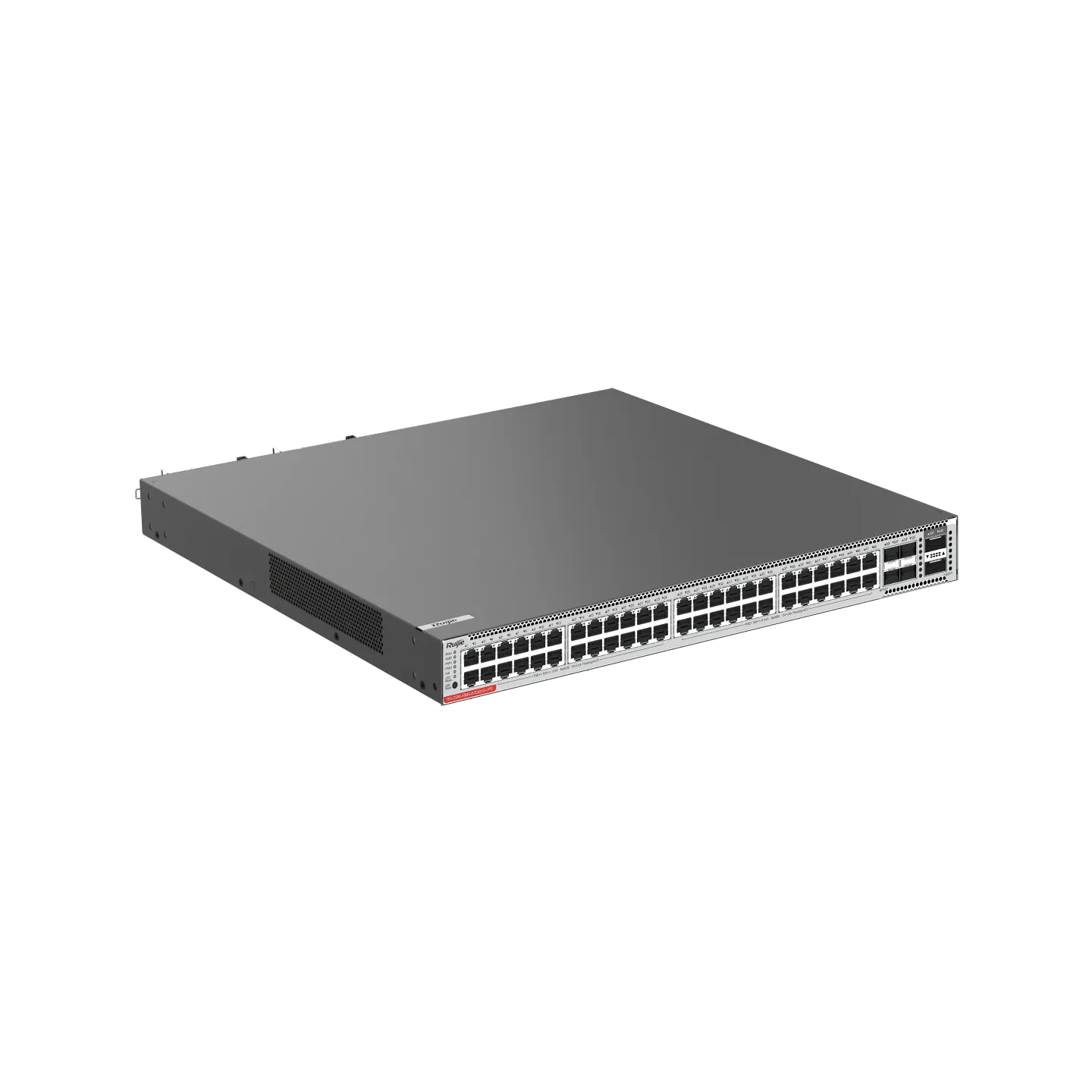

The Ruijie RG-CS86-48MG4VS2QXS-UPD is a high-performance, cloud-managed switch designed to meet the demands of modern enterprise campus networks, offering versatile multi-gigabit access and robust Power over Ethernet (PoE) capabilities.
Key Features:
-
Versatile Multi-Gigabit Access:
- Equipped with 48 5 Gbps speeds, providing flexible connectivity options for various devices.
- Equipped with 48 5 Gbps speeds, providing flexible connectivity options for various devices.
-
High-Speed Uplinks:
- Includes 4 × 25GE SFP28 ports and 2 × 40GE QSFP+ uplink ports, ensuring high-bandwidth connections to aggregation or core network layers.
- Includes 4 × 25GE SFP28 ports and 2 × 40GE QSFP+ uplink ports, ensuring high-bandwidth connections to aggregation or core network layers.
-
Enhanced PoE Capabilities:
- Supports PoE, PoE+, and High-Power PoE (PoE++) with up to 90W output per port, ideal for powering devices like Wi-Fi6e and Wi-Fi7 access points.
- Supports PoE, PoE+, and High-Power PoE (PoE++) with up to 90W output per port, ideal for powering devices like Wi-Fi6e and Wi-Fi7 access points.
-
Robust Performance:
- Offers a switching capacity of 840 Gbps and a packet forwarding rate of 625 Mpps, ensuring efficient data handling for high-demand applications.
- Offers a switching capacity of 840 Gbps and a packet forwarding rate of 625 Mpps, ensuring efficient data handling for high-demand applications.
-
Advanced Security and Reliability:
- Features hardware-level boot redundancy and optical port fault isolation to maintain service continuity.
- Features hardware-level boot redundancy and optical port fault isolation to maintain service continuity.
-
Energy Efficiency:
- Incorporates intelligent speed regulation and auto-sleeping functions to reduce energy consumption and operational noise.
- Incorporates intelligent speed regulation and auto-sleeping functions to reduce energy consumption and operational noise.
-
Simplified Management:
- Compatible with Ruijie Cloud, enabling centralized and remote management for streamlined network operations.
- Compatible with Ruijie Cloud, enabling centralized and remote management for streamlined network operations.
Technical Specifications:
- Dimensions (W × D × H): 442 mm × 220 mm × 43.6 mm
- Weight: 6.11 kg

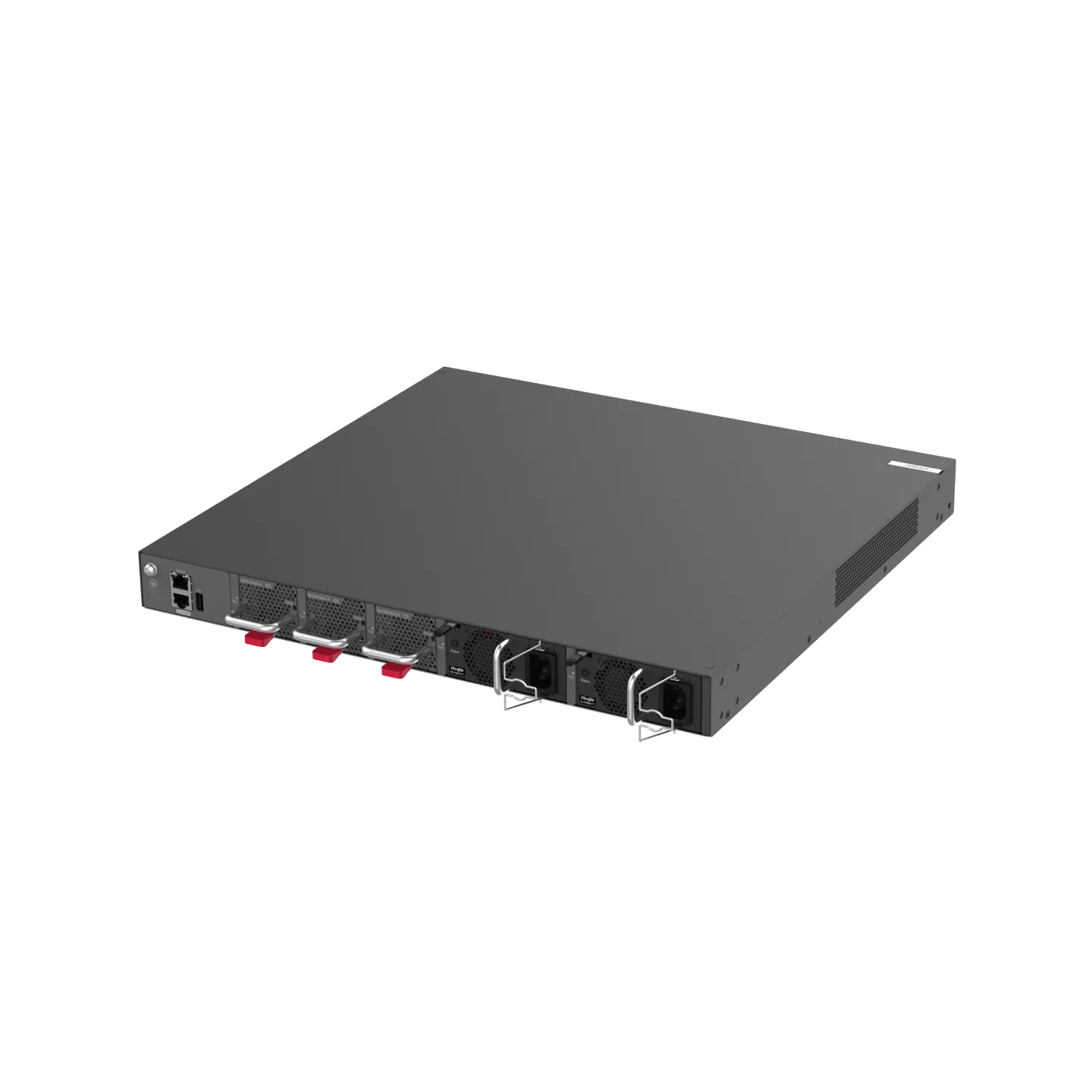

- Power Supply: Two pluggable power modules supporting 1+1 redundancy and hot swapping
- Operating Temperature: 0°C to 45°C
- Surge Protection: 6 kV
