Networking :: WiFi Access Points :: Reyee WiFi 6 Outdoor Access Point AX1800, PoE + SFP Port

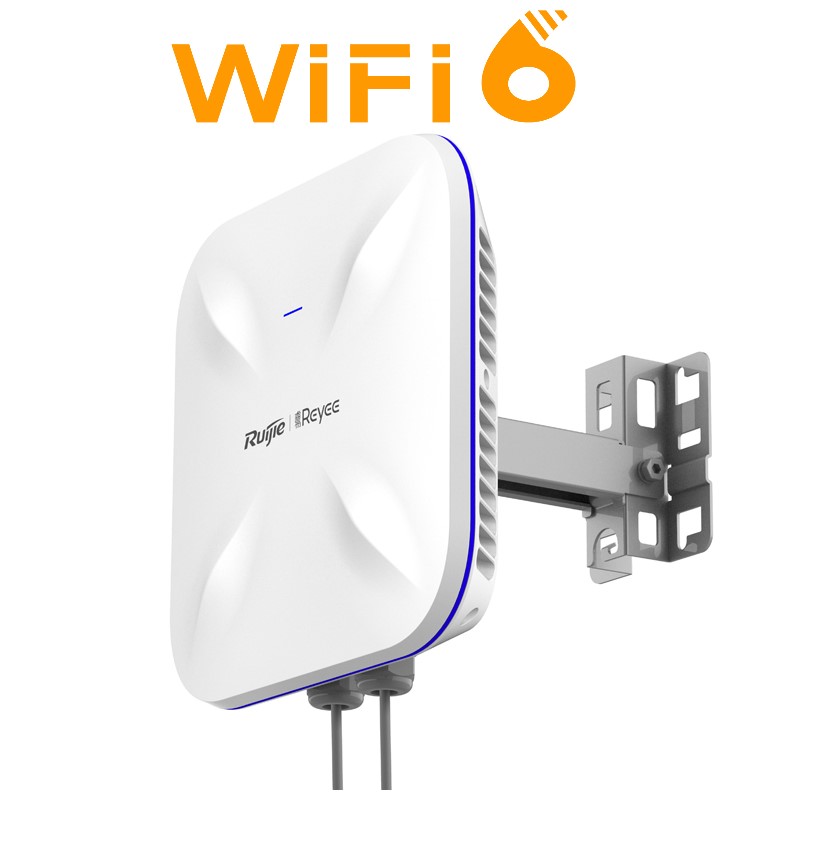

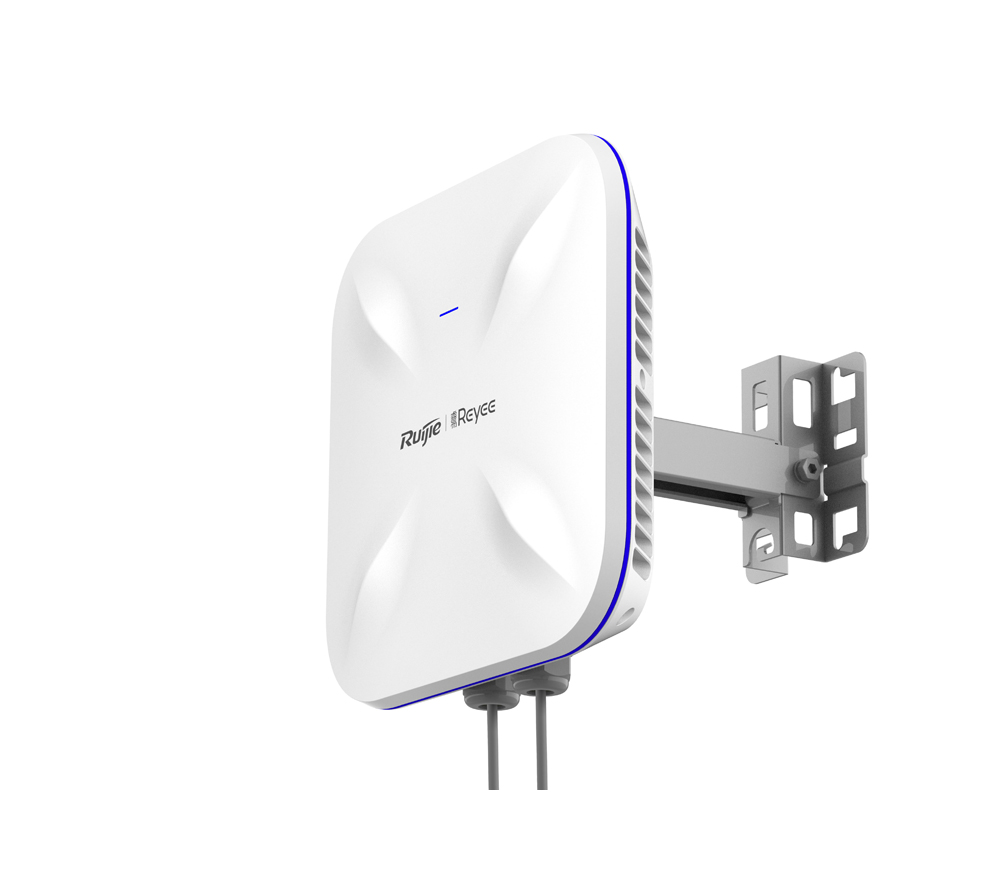

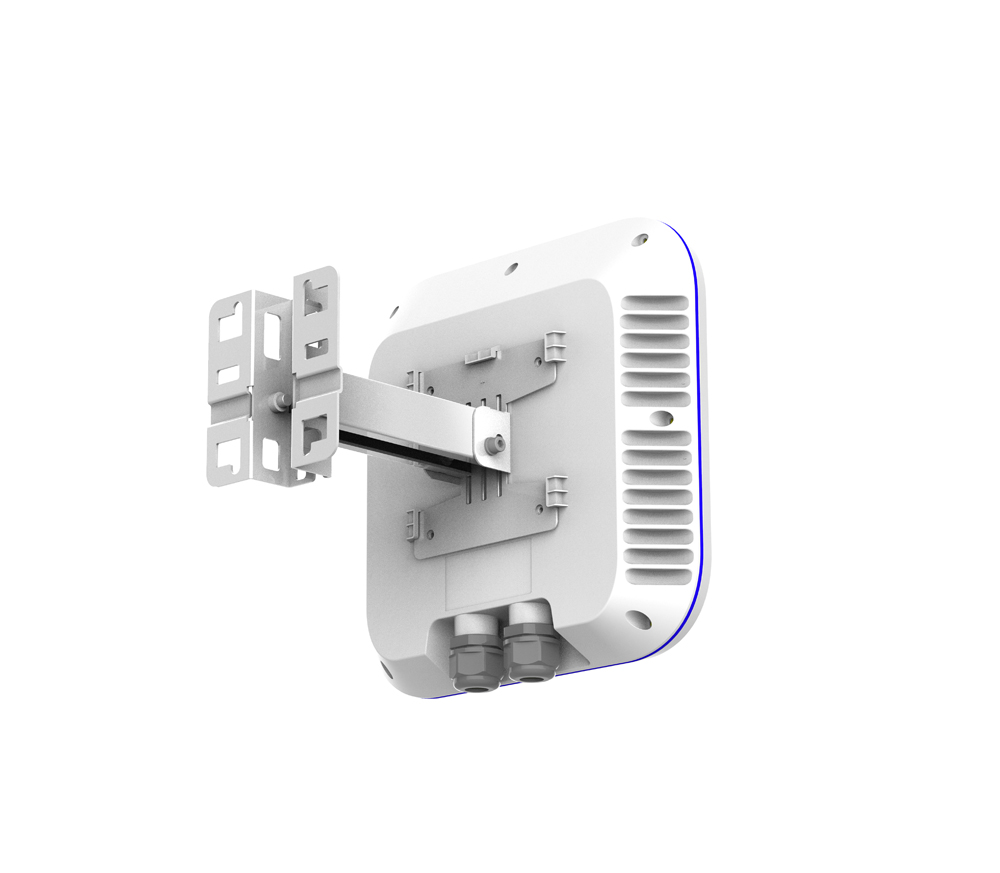

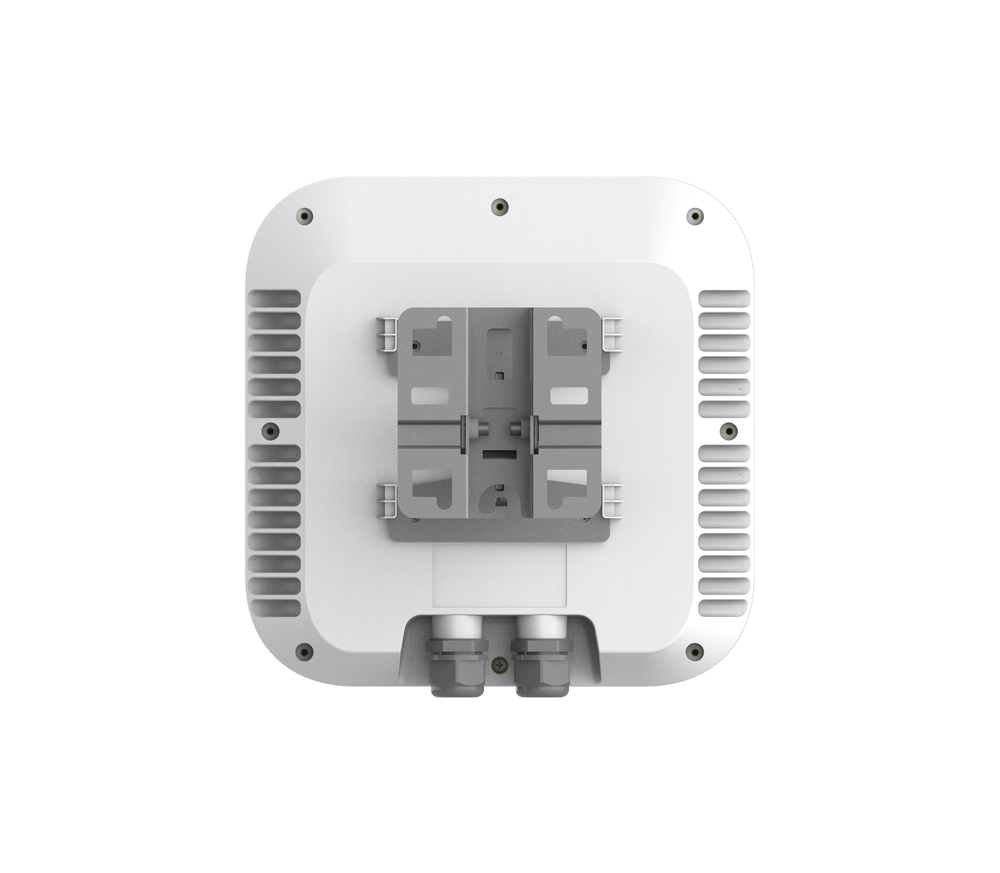

Reyee WiFi 6 Outdoor Access Point AX1800, PoE + SFP Port

RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.

RG-RAP6260(G) supports Reyee Mesh, which allows users easily expand extra Wi-Fi in outdoor place. Less wiring, more relaxing.

RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business.

Technical Specification	Specification Description
Model	RG-RAP6260(G)
Radio	Dual-stream dual-band
Protocol	Concurrent 802.11a/b/g/n/ac/ax
Operating Bands	802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)
Antenna	Internal antennas (2.4GHz: 4dBi，5GHz: 6dBi)
Spatial Streams	2.4 GHz 2x2 MU-MIMO 5 GHz 2x2 MU-MIMO
Max Throughput	Up to 574Mbps at 2.4GHz Up to 1201Mbps at 5GHz Totally 1775Mbps per AP
Modulation	DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM
Receive Sensitivity	11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）
Maximum Output Power of the Transmitter (Single Stream)	2.4GHz(2.4~2.4835GHz)：26dBm 5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm （country-specific，comply with local laws）
Adjustable Power	1dBm
Dimensions	298mm×298mm×65mm (excluding mounting kits)
Weight	≤1.35kg (excluding mounting kits)
Service Ports	1 10/100/1000 Base-T Ethernet port supports PoE IN； 1 100/1000 Base-X SFP Port
Management Port	N/A
LED Indicator	Single indicator (Blue light)
Power Supply	802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)
Power Consumption	≤17W
Bluetooth	Support
Environment	Operating Temperature：-40°C～65°C
	Storage Temperature：-40°C～85°C
	Operating humidity：0%～100%, non-condensing
	Storage humidity：0%～100%，condensing/non-condensing
Installation	Pole/Wall-Mountable
Safety Standard	GB4943、IEC 60950-1
EMC Standard	GB9254、EN301 489，EN50155：EN50121
Vibration Standard	IEC61373
Radio Standard	EN300 328，EN301 893
MTBF	>400000H
WLAN	Maximum number of clients: 512
	Recommended number of clients: 100
	Up to 8 SSID
	Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
	SSID-based and radio-based STA limit
	Support Layer 2 user isolation
	Support Reyee Mesh
Roaming	Support layer 2 and layer 3 roaming
Security	Support PSK authentication
	Support static blacklist and whitelist
	Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption
Routing	Support static IP address, DHCP, PPPoE Dial
Management and Maintenance	Support unified networking of all network equipment Support local or remote management with Ruijie Cloud APP Support local management with web Support remote management with Ruijie Noc Cloud platform
Platform Management Features	Automatic RF adjustment via the platform
	Unified configuration via the platform
	Unified monitoring via the platform

Reyee New Generation Outdoor

Access Point

RG-RAP6260(G)

802.11AX
Standard

Gigabit
SFP Port

Recommended
Concurrent Users

Water/Dust
Proof

Surge
Protection

Highest
Flame-retardant Level

Operating
Temperature

Angle Flexible
Adjustment

L3 Roaming

Self-Organizing
Network

Mobile APP
Management

Remote
Maintenance

Move Wi-Fi 6 to Outdoors

RG-RAP6260(G) Compliant with the 802.11AX Wi-Fi 6 Standard

Allow 100 Users Access Concurrently
to Internet

OFDMA

MU-MIMO

Outdoor Wireless Can Also be Faster

AX1800 standard, 1200Mbps speed on 5GHz
Even at Outdoors, the Wi-Fi Speed can also be better

Square

Scenic spot

Station

School

Market

Construction Site

Support Extra-Distance Access
Point Deployment

With gigabit SFP port, the device supports up to 20km
transmission from datacenter with single mode fiber

No Worries About Harsh Environment

Industrial-Level Design, More Reliable

IP68 Level
Protection

Surge Protection
6000V

Flame-retardant
V0 Highest Level

Wide Temperature
-40°C ~ 65°C

Signal Interference Filtered,
Transmission More Stabilized

Equipped with high quality FBAR filter, which can effectively suppress and filter the interference from carrier cell base station and Bluetooth devices etc.
With high quality antenna, the receiving sensitivity is further optimized, thereby improves transmission quality.

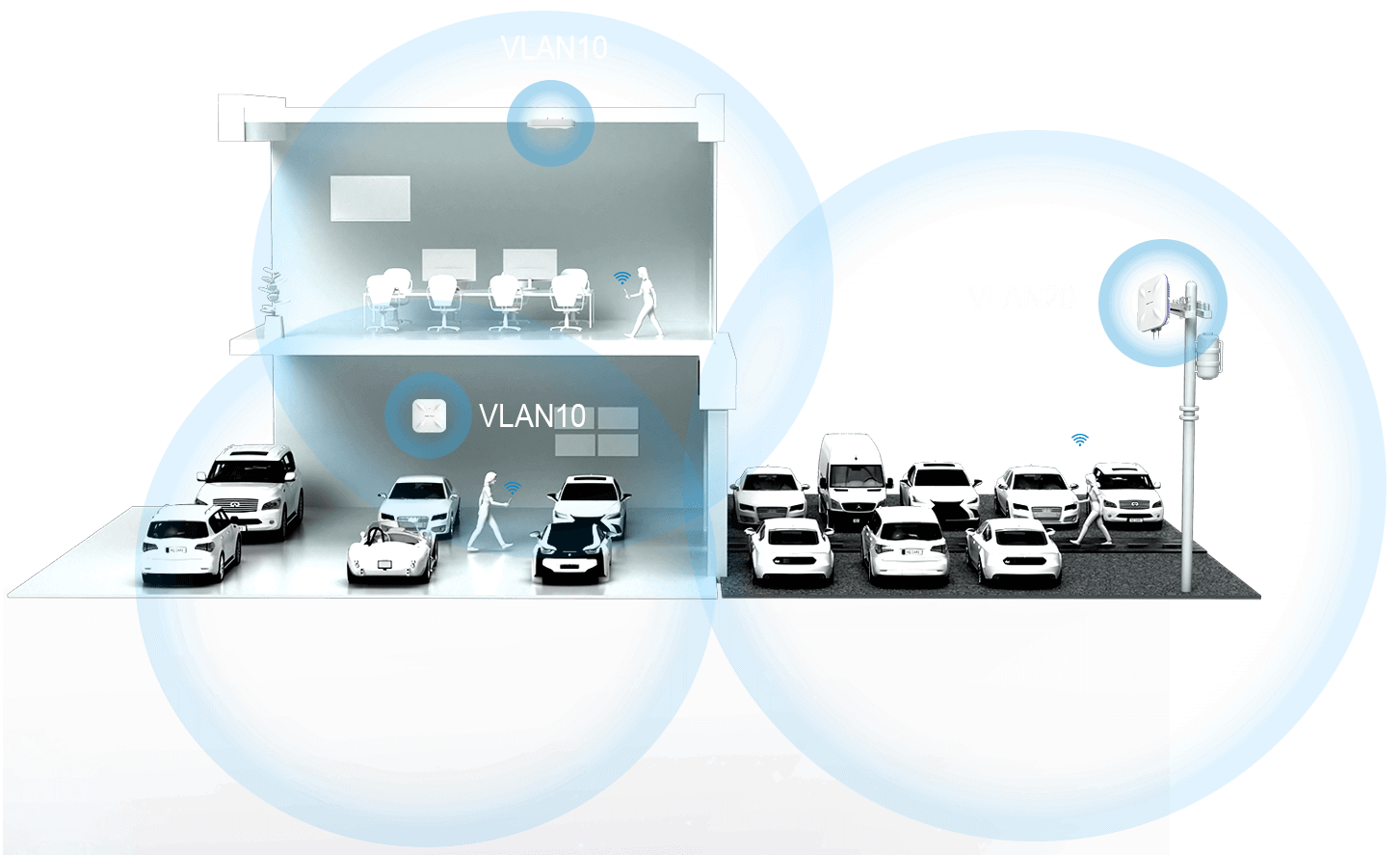

Layer 3 Roaming,
Ensure Service Always Online

With layer 3 networking, when a user accesses the Internet across the layer 3 network, the terminal can perform a fast and smooth roaming switchover, ensuring service continuity

4S Automobile Store

Self-Organizing Network Gets
All Devices Online Easily

Too many APs? Gateway, switch configuration too complex? Don't worry, SON can help you easily complete the whole network equipment setup.

From Setup, Debug, Delivery, to Maintenance
Whole Network Cloud Management

RG-RAP6260(G)

Datasheet (RG-RAP6260_G__Datasheet_v2_-_20221125.pdf, 9,743 Kb) [Download]
