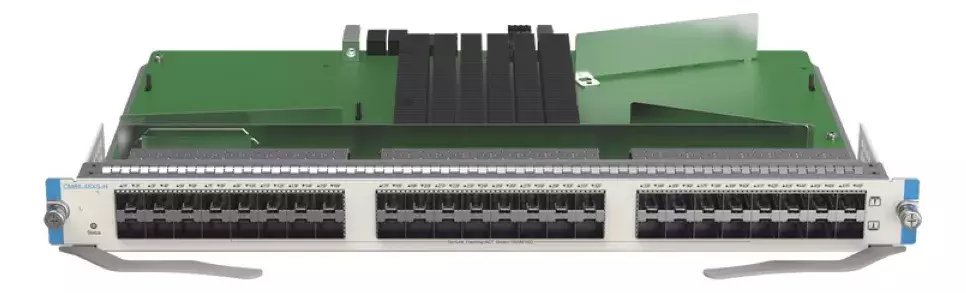

Ruijie CM88-48XS-H Line Card Module for RG-CS88-08

CM88-48XS-H is a high-performance service module for the RG-CS88-08 series chassis switches, featuring 48 SFP+ ports that support both 10GE and 1GE optical modules. It is designed to deliver high-speed, scalable fiber connectivity with robust performance and flexibility for enterprise core and aggregation networks.

Key Features:

Port Configuration:

• 48 x SFP+ Ports:
  • Supports 10GE SFP+ and 1GE SFP modules.
  • Hot-swapping capability for seamless upgrades and replacements.
  • Note: 10GE SFP+ modules cannot operate as 1GE modules. If using 1GE modules, the interface must be configured manually for speed, duplex, and flow control.

LED Indicators:

• System Status LED:
  • Off: Module is powered off.
  • Solid Red: Module fault.
  • Blinking Green: Initialization in progress (continuous blinking indicates an error).
  • Solid Green: Module is operational.
• Port LEDs:
  • 1GE Ports:
    • Off: Link not connected.
    • Solid Green: Connected at 1 Gbps.
    • Solid Yellow: Connected at 100 Mbps.
    • Blinking: Data transmission/reception in progress.
  • 10GE Ports:
    • Off: Link not connected.
    • Solid Green: Connected.
    • Blinking: Data transmission/reception in progress.

Performance Specifications:

• CPU: Quad-core processor (1.5 GHz per core).
• Memory:
  • Flash: 8 GB with 1+1 boot redundancy.
  • DDR4 RAM: 2 GB for fast data processing.
• Switch Buffer: 32 MB for efficient traffic handling.
• Hot Swapping:
  • Module hot swapping is supported.
  • Cable hot swapping is supported.

Technical Details

• Dimensions: 412 mm (W) x 390 mm (D) x 40.16 mm (H) (16.22 in. x 15.35 in. x 1.58 in.).
• Weight: 3.85 kg (8.49 lbs).
• Mean Time Between Failure (MTBF): 305,000 hours (~34 years).
