Ruijie RG-CS86-20XS4VS2QXS-D is a high-performance Layer 3 switch designed for core and aggregation layers in enterprise campus networks. It offers versatile high-speed connectivity and robust features to support demanding networking environments.
Key Features:
-
High-Speed Ports:

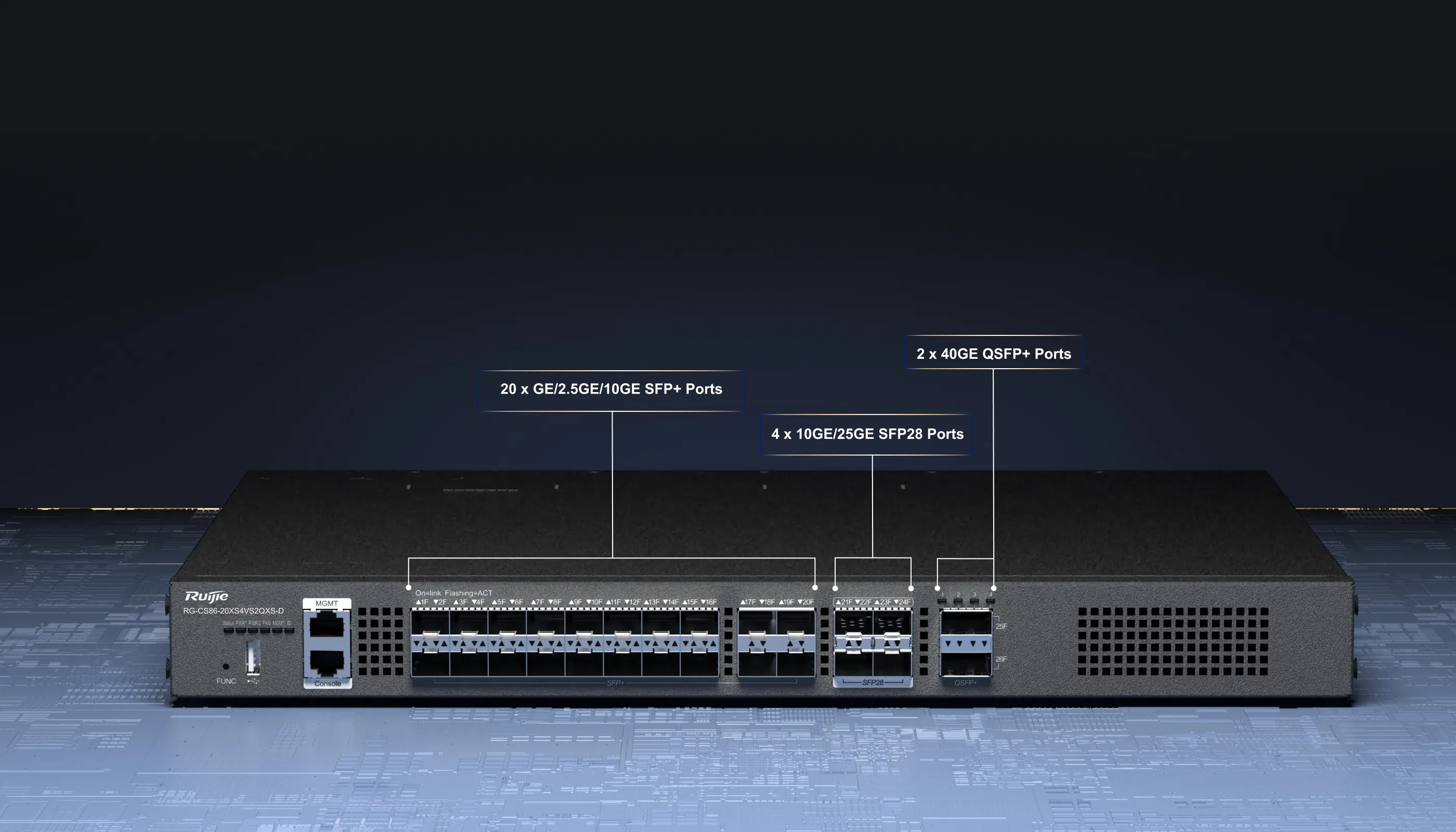

- 20 × 10G SFP+ ports for flexible access.
- 4 × 25G SFP28 ports and 2 × 40G QSFP+ uplink ports for high-bandwidth aggregation.
-
Scalability:
- Supports up to 32 × 10GE ports, accommodating growing network demands.
-
Advanced Layer 3 Features:
- Supports static routing, RIP, OSPF, BGP, and IPv6, enabling dynamic and flexible network configurations.
- Supports static routing, RIP, OSPF, BGP, and IPv6, enabling dynamic and flexible network configurations.
-
Device Virtualization:
- Utilizes Virtual Switching Unit (VSU) technology for simplified management and enhanced performance.
- Utilizes Virtual Switching Unit (VSU) technology for simplified management and enhanced performance.
-
Robust Security:
- Features multiple AAA modes, 802.1X authentication, RADIUS, TACACS+, and comprehensive ACLs to ensure network security.
- Features multiple AAA modes, 802.1X authentication, RADIUS, TACACS+, and comprehensive ACLs to ensure network security.
-
Reliability:

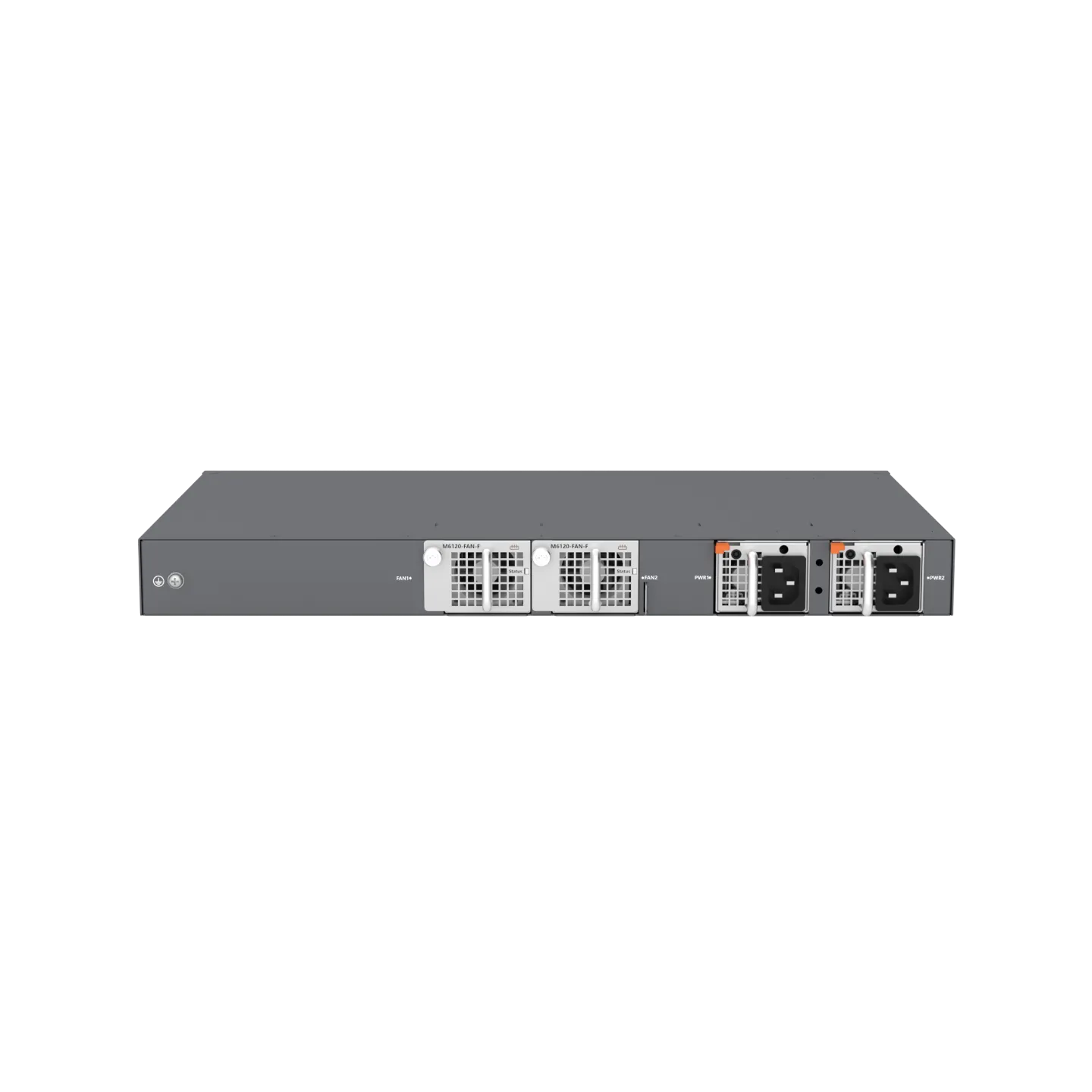

- Hot-swappable power modules and fans with 1+1 redundancy, ensuring continuous operation.
- Hot-swappable power modules and fans with 1+1 redundancy, ensuring continuous operation.
-
Cloud Management:
- Compatible with Ruijie Cloud for centralized and remote management, facilitating easy monitoring and maintenance.
- Compatible with Ruijie Cloud for centralized and remote management, facilitating easy monitoring and maintenance.
Technical Specifications:
- Switching Capacity: 760 Gbps
- Forwarding Rate: 570 Mpps
- MAC Address Table: 32,768 entries
- Dimensions (W × D × H): 440 mm × 330 mm × 43.6 mm
- Operating Temperature: 0°C to 50°C
- Power Supply: Supports RG-PA150I-F 150W AC power modules
