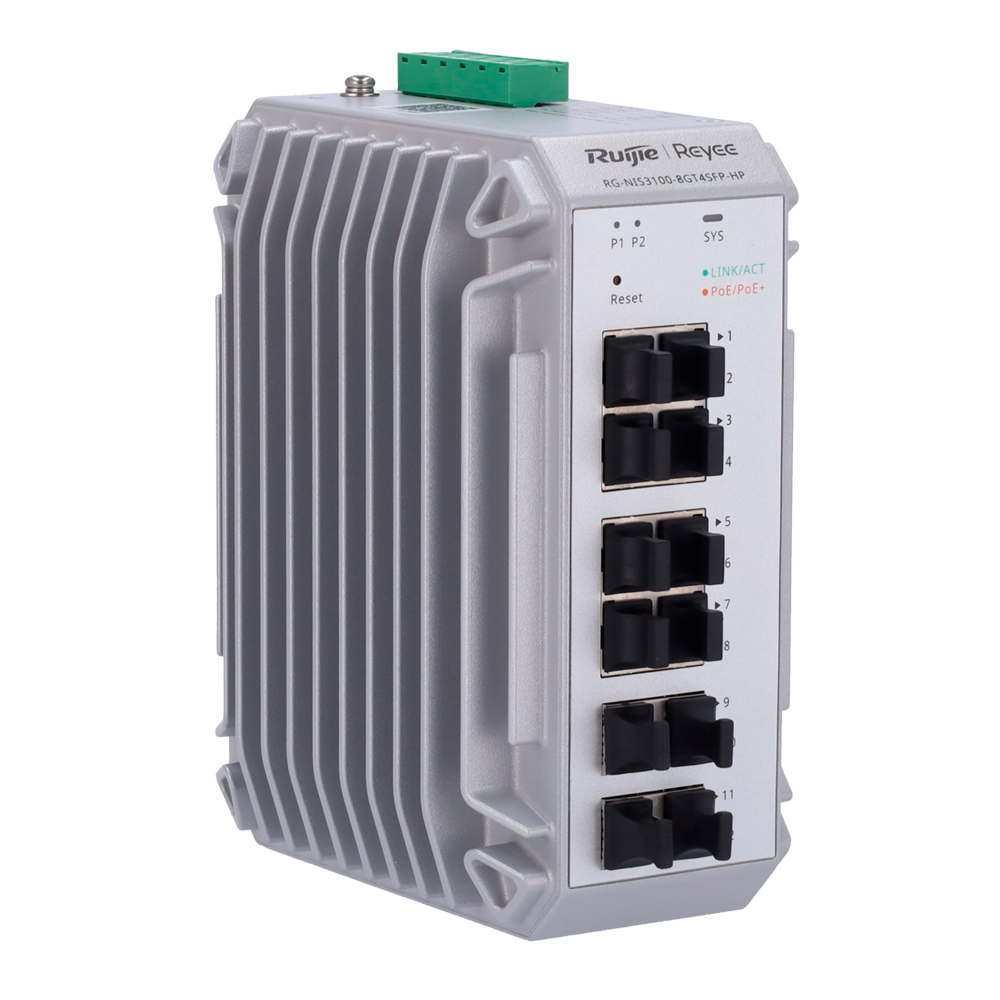

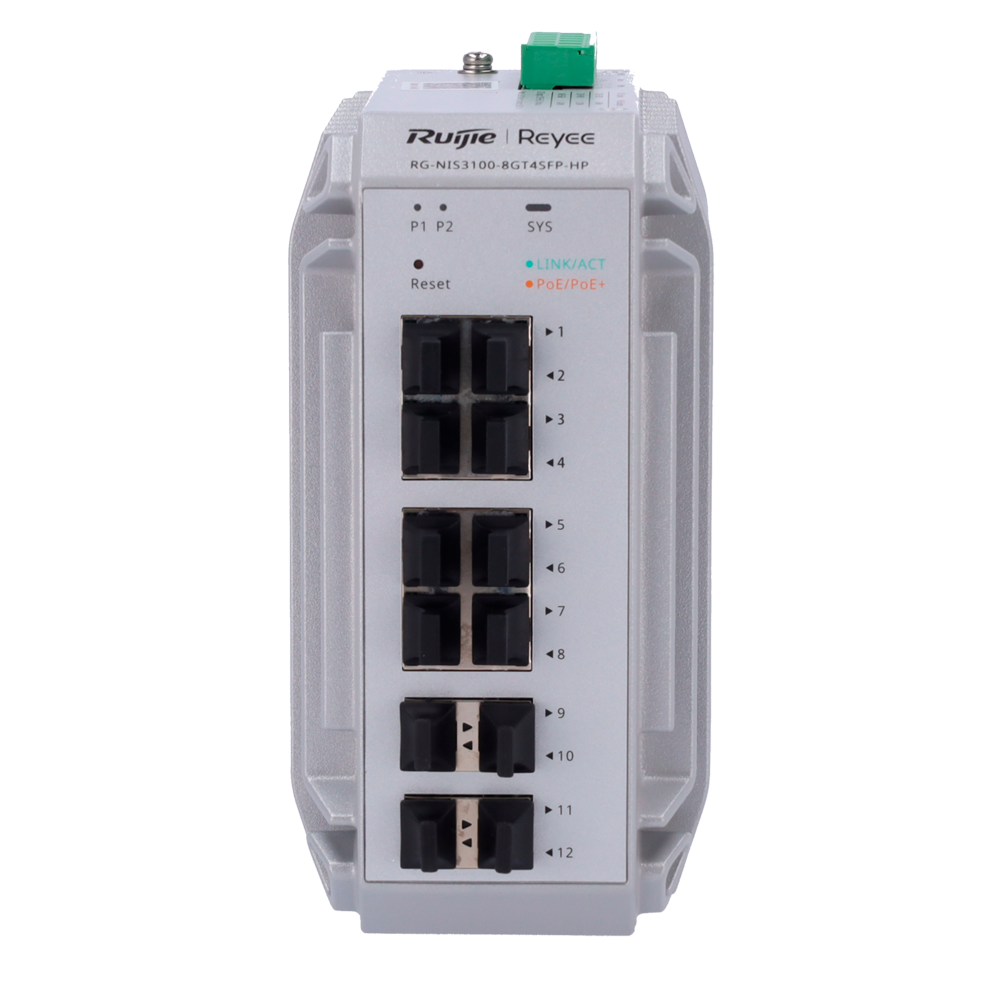

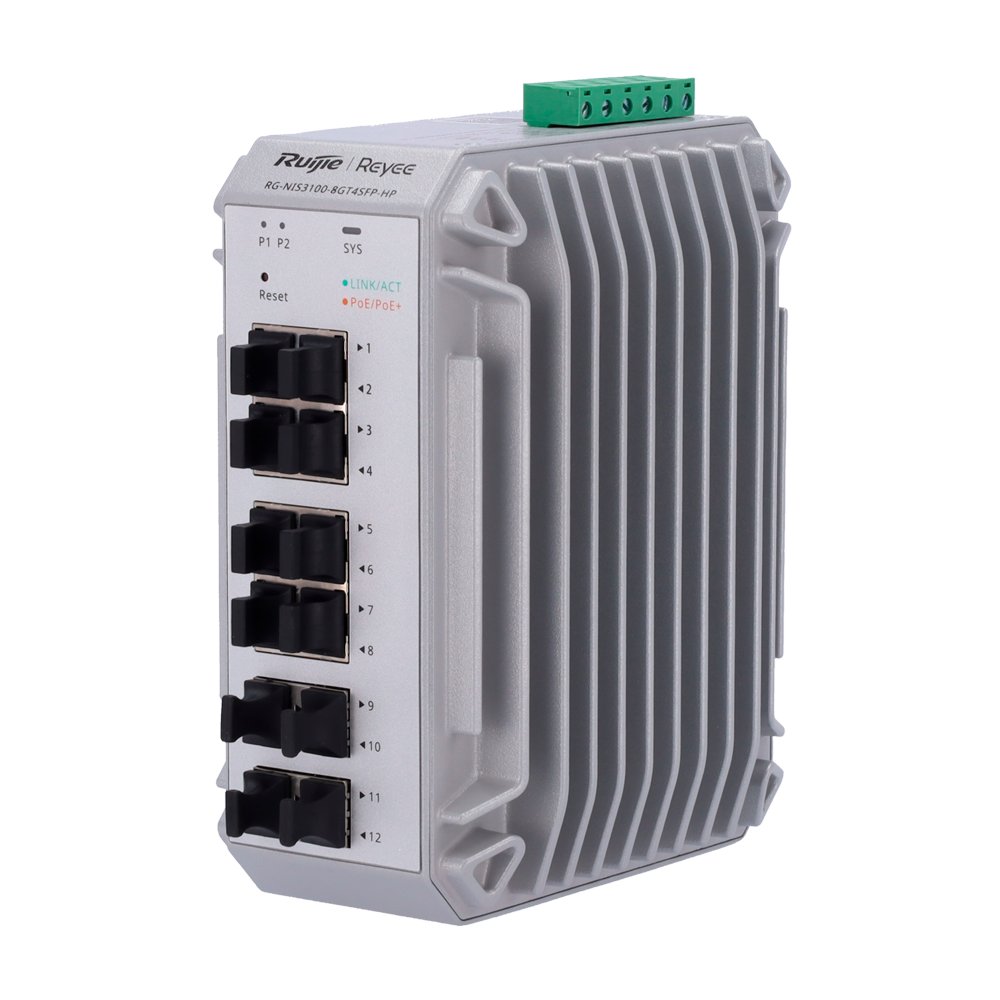

Reyee 10 Port Industrial Grade Gigabit Cloud Managed PoE+ Switch with 4 SFP Uplink, 240W
Features
- Unique Industrial Design Ensures Stable Operation in -40℃ to 80℃
- 8 KV Protection: Shields against voltage spikes
- IP40 Suitable for use in dusty conditions
- ERPS Plug-and-Play, without Complicated Configuration
- Local Network SON, Easy Configuration
- Ruijie Cloud :Easy Management even in Harsh Environments
Specification
Interface | 8 ports RJ45 10/100/1000 Mbps + 4 SFP Ports |
Port speed | 8 x 10/100/1000 Mbps - 4 x SFP Gigabit |
PoE | 1~8 802.3af/at Ports |
Power supply | Up to 30 W per port If the device is powered at 48vdc, the total power are 240W If the device is powered at 24vdc, the total power are 120W If the device is powered at 12vdc, the total power are 60W |
PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
VLAN | Up to 4094 Voice VLAN |
Redundancy control | Spanning Tree (STP, RTSP) ERPS (only available on its SFP ports) |
Network Protocols and Technologies | LDP/LLDP-MED DHCP Snooping IGMP Snooping v1/v2/v3 Energy Efficient Ethernet ACL Jumbo Frame 9216 Loop Prevention SNMP v1/v2c/v3 |
Management Protocols | Web/Cloud/APP |
Installation | DIN rail and/or wall |

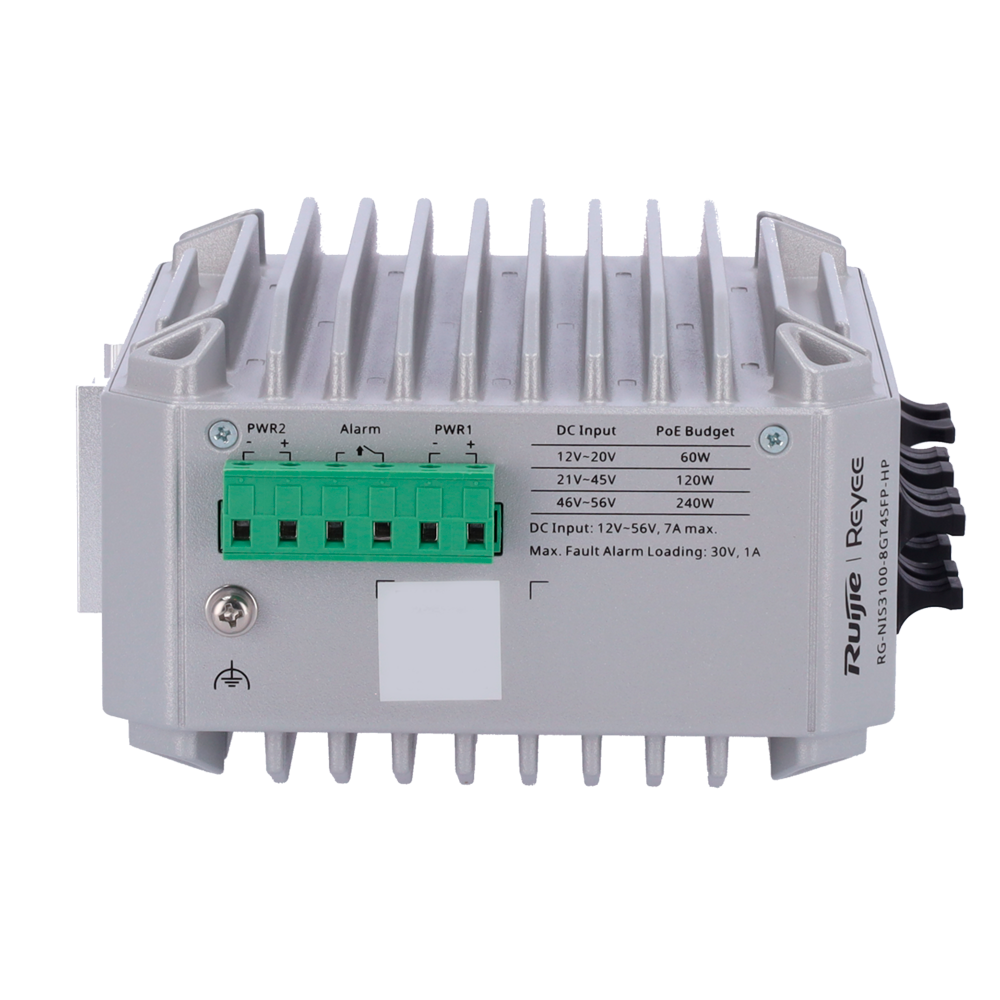

Power | Power supply not included 12-56VDC / 7A Reference is recommended: - RG-NIS-PA240-48 - RG-NIS-PA120-48 |
Protections | 8KV against voltage spikes 6KV against lightning strikes IP40 against dust |
Operating temperature | -40ºC~65ºC In enclosed space -40ºC~80ºC When an exhaust fan with a flow rate of 400 LFM is installed in a location |
Recommended Industrial SFP Modules | RG-NIS-GE-SFP-10KM-SM1310 RG-NIS-GE-SFP-20KM-SM1310-BIDI RG-NIS-GE-SFP-20KM-SM1550-BIDI RG-NIS-GE-SFP-550M-MM850 |
Dimensions | 85 x 132 x 165mm |
Weight | 1,93 Kg (With packaging) |
