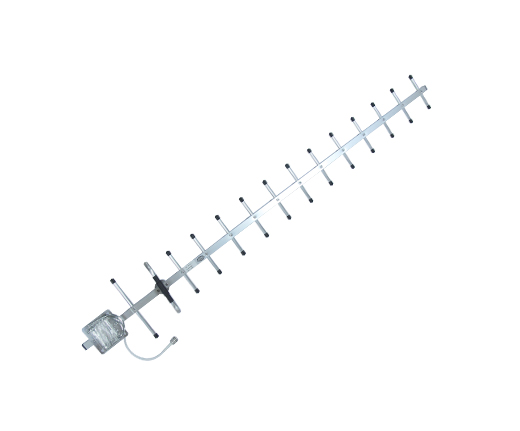

Revez Yagi Directional Antenna 12dBi 868mhz - LoRaWAN
Frequency Range
|
824-960MHz
|
154Bandwidth
|
70MHz
|
Gain
|
12dBi
|
Polarization
|
Vertical or Horizontal
|
Horizontal Half-power Beam width
|
54°
|
Vertical Half-power Beam width
|
48°
|
Front to Back Ratio
|
≧15
|
VSWR
|
≤1.5
|
Input Impedance
|
50Ω
|
Maximum input power
|
100W
|
Lightning protection
|
DC Ground
|
Input connector type
|
N Female
|
Dimensions
|
760mm length
|
Antenna weight
|
0.4kg
|
Radome material
|
Aluminium Alloy
|
Operating temperature
|
-40℃~60℃
|
Rated Wind Velocit
|
60m/s
|
Mounting way
|
Pole-holding
|
Mounting hardware
|
¢35mm~¢50mm
|
