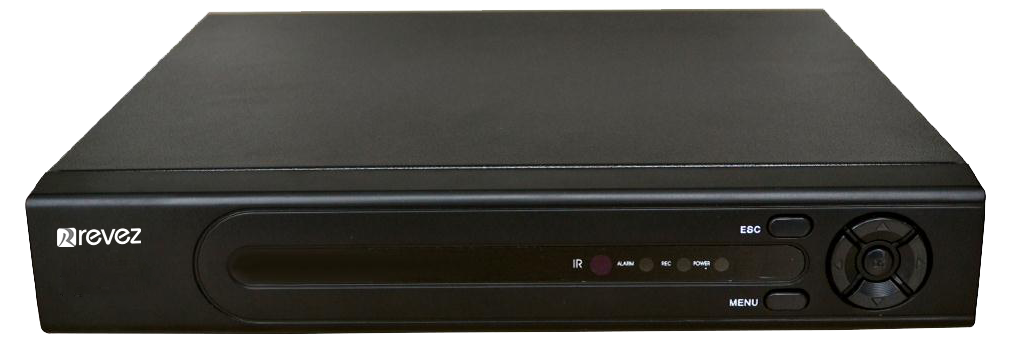

Revez TORNADO-16 (16 Channel AHD DVR 720P)
The Revez TORNADO series are an AHD DVR suitable for both regular analogue cameras as well as AHD cameras.
The TORNADO series supports AHD cameras up to 720P/1.3MP
The TORNADO series supports P2P Cloud viewing via iPhone and Android Apps
Key features
· Supports AHD front-end realtime encoding
· Supports analog and network mixed input
· Supports VGA & HDMI HD output
· Supports Cloud technology
· Supports various mobile monitoring:(IOS, Windows Mobile, Android, BlackBerry, Symbian)
· Supports multiple web browsers(IE, Chrome, Firefox, Safari)
· Supports more than 20 languages
VIDEO |
|
Video Compression |
H.264 High Profile |
Encode Ability |
16CH AHD-720p |
Decode Ability |
1 CH AHD-720p |
Video Input |
Pure Analog:16*AHD-960H; 8*AHD-720p; 16*AHD-960H Mixed:4*720P(analog) +4*720P(network); 8*720P(analog) +8*720P(network); Pure Network: 1*080P+ 8 *720P; 2*1080P+2*720P |
AUDIO |
|
Audio Compression |
G.711A |
Two Way Audio |
Yes |
RECORD AND PLAYBACK |
|
Hard Drive |
1 SATA Drive 4TB |
Record |
Manual>alarm>motion detection>timing |
Playback |
4 CH (pure local input mode) |
Video BNC Input |
16 BNC |
Output |
1 CH VGA, 1 CH HDMI |
Audio |
RCA, 4 CH Input,1 CH Output |
Alarm |
N/A |
PTZ control |
RS485;Support multiple PTZ protocols |
Network |
1 RJ45 10M/100M |
USB |
2 USB ports |
GENERAL |
|
Power |
12V DC/2A |
Size |
255mm(length)* 225mm(width)* 45mm(height) |
