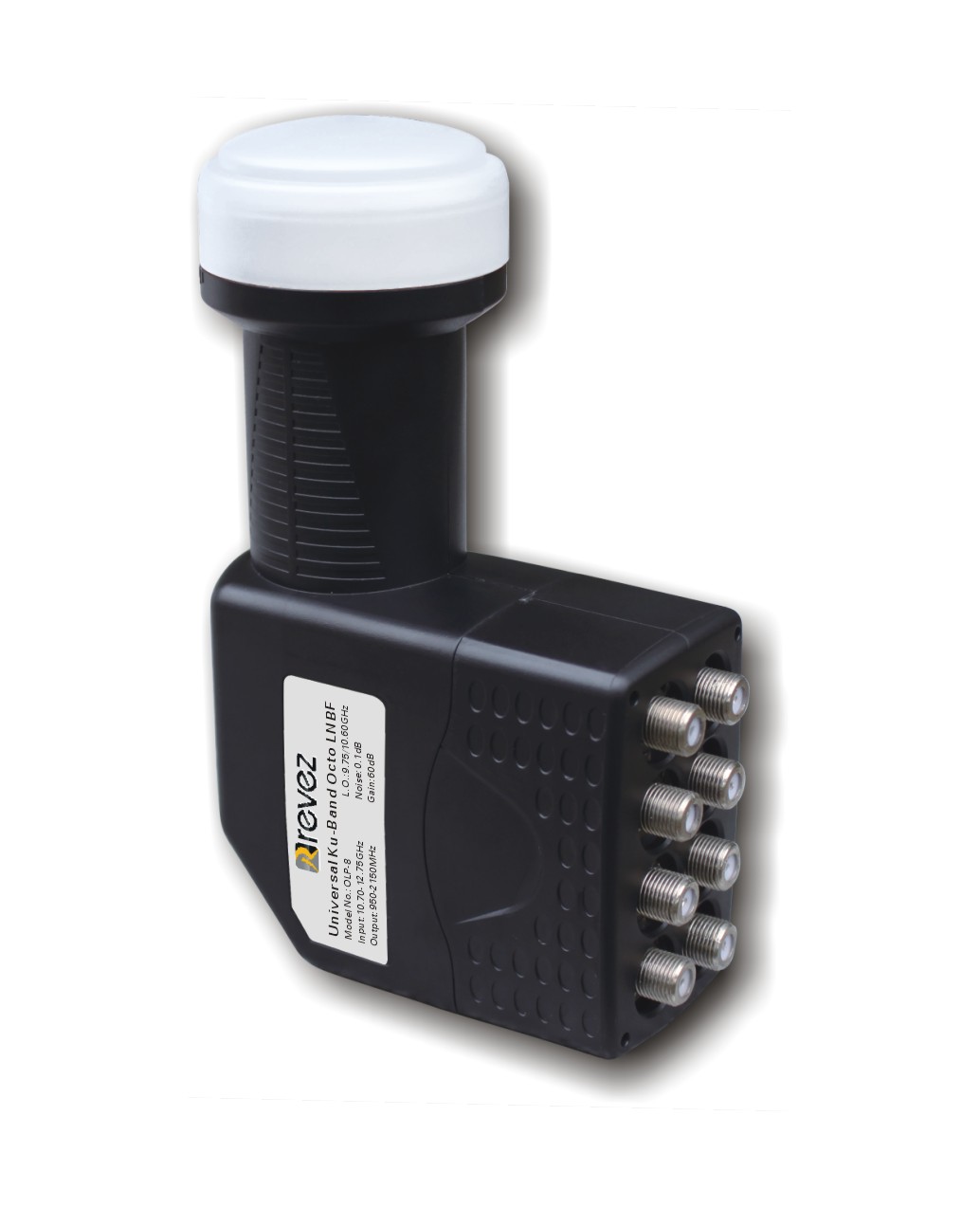

Revez Octo LNB 0.1dB, HD, 3D, 4K Support (OLP-8)
Latest model Revez Octo LNB for universal satellite dishes. Now supporting 4K and 3D.
- Brand: Revez
- Model: OLP-8
- Colour: Black
- Outputs: 8
- Neck Diameter: 40mm
- Noise Figure: 0.1dB
Item |
Specification |
Input Frequency Range |
Low Band:10.70~11.70GHz |
Output Frequency Range |
Low Band:950~1950MHz |
Noise Figure |
0.1dB |
Conversion Gain |
60dB(Typ.) |
Gain Flatness |
±0.5dB/26MHz |
Cross POL. Isolation |
25dB(Typ.) |
L.O. Frequency |
Low Band:9.75GHz |
L.O. Frequency Stability |
±1.0MHz(Max.)@+25℃ |
Operating Temperature |
-30℃~+70℃ |
Item |
Specification |
L.O. Phase Noise |
-50dBc/Hz@1KHz |
Image Rejection |
40dB(Min.) |
Output VSWR |
2.0:1(Max.) |
Output Power |
0dBm (Min.)(at 1dB gain compression) |
Connector Type |
75Ω Female Connector |
DC Current Consumption |
160mA (Typ.) |
Low/High Band Switching |
Low Band: 0 Hz |
POL. Switching Voltage |
10.5~14.0 V @VP |
