Save 43%

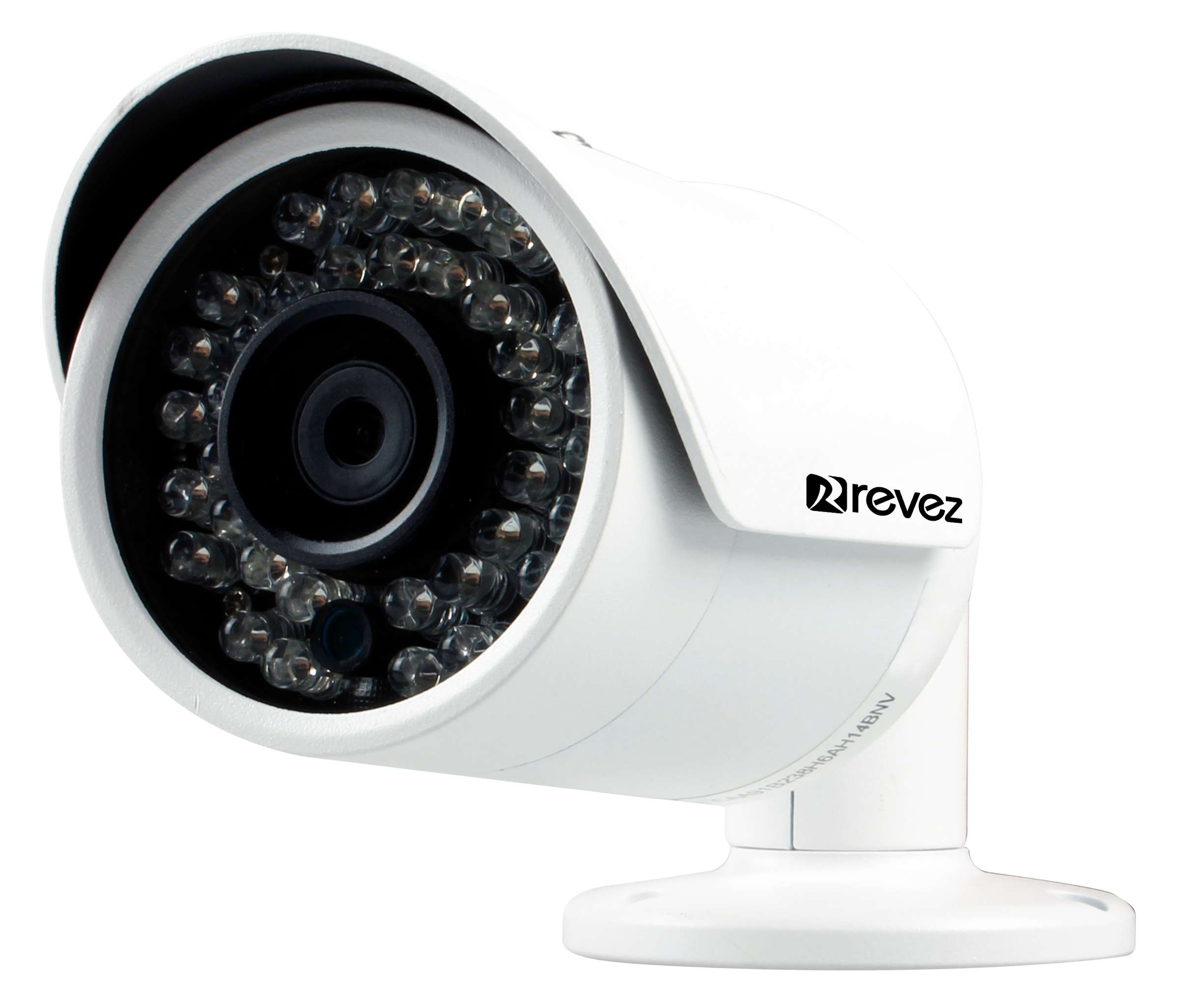

Revez IP 4MP H.264 Bullet Camera 4mm
Latest range of Revez IP Cameras. Suitable for use as stand alone cameras or with Revez RAPID NVRs.
PoE Built in so no need to run seperate power cable when used with Revez RAPID NVR.
Newest model with H.265 compression.
Features:
• H.265 Codec
• Up to 2560×1440@25fps
• IR Range: 15m～25m
• NIR, WDR, 3D DNR, HLC, Dual-ICR
• Triple Streams
• Smart VQD(Video Quality Diagnosis)
• Crowd Massing Detection
• 8 Kinds Smart IVA
• 9 Languages Supported
• Audio I/O 1/0, MicroSD Card, Reset Button
• TVS 6000V Protection, IP66
Specification:
| Camera | |
| Image Sensor | 1/3″ OV CMOS |
| Core Processor | ARM7 Architecture |
| Operating System | Embedded Linux |
| Min. Illumination | Color: 0.05Lux(F1.2,AGC ON) |
| B/W: 0.01Lux(F1.2,AGC ON); 0Lux with IR | |
| Shutter Time | 1s～1/100000s |
| Lens | 4mm, Angle of View: 70.4° |
| Lens Mount | φ12 |
| Auto Iris | N/A |
| Day& Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 100 dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.265/H.264 HP/MP/BP/M-JPEG |
| Encode Type | High Profile/Main Profile/Base Line Profile |
| Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711/ADPCM/AAC |
| Bit Rate | 8K~48Kbps |
| Image | |
| Max. Image Resolution | 1440P(2560×1440)@25fps |
| Frame Rate | PAL：1440P@25fps,QXGA@25fps |
| NTSC：1440P@25fps,QXGA@30fps | |
| Triple Stream | Mainstream: 1440P(2560×1440) |
| Substream: D1(704×576) | |
| 3rd Stream: CIF(352×288) | |
| Image Settings | Brightness, Saturation, Contrast Adjustable by Client Software or Web Browser |
| HLC | Y |
| Smart Defog | Y |
| Corridor | Y |
| EIS | Y |
| ROI | 4 Zones |
| OSD | 16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| Network | |
| Browser | IE 7+, Chrome 18 +, Firefox 5.0 + |
| Network Storage | NAS |
| Video Analytics | Tripwire/Perimeter/Missing&Foreign Object/Loitering/Running/Parking/Gathering/Video Diagnosis/Abnormal Detection |
| Alarm Trigger | Motion Detection/IP Conflict/MAC Conflict/Port Alarm |
| Protocols | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP/802.1X/QoS |
| User Permission | 4 Level/8 Users |
| Remote Connection | 2-ch Access |
| System Compatibility | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | N/A |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Video Output | N/A |
| On-board Storage | MicroSD |
| Reset Button | Y |
| Extension | N/A |
| General | |
| Languages | English, Spanish, Korean, Italian,Turkish,Thai, Russian, Simple Chinese, Traditional Chinese |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Operating Conditions | -35℃～65℃(IR OFF) /-35℃～40℃(IR ON), 0～95% RHG |
| Power Consumption | Max. 3W(IR OFF) |
| Max. 6.7W(IR ON)(ICR Instant Switch 7.0W) | |
| Circuit Protection | TVS6000V Lightning/Surge Protection: (Power 2000V, RJ45 1000V) |
| Impact Protection | IP66 |
| IR Range | 15-25m |
| IR LEDs | 30-pc IR LEDs |
| Dimensions | 169mm × 67mm × 70mm |
| Weight | 400g (Camera Only); 600g (with Packing Box) |
