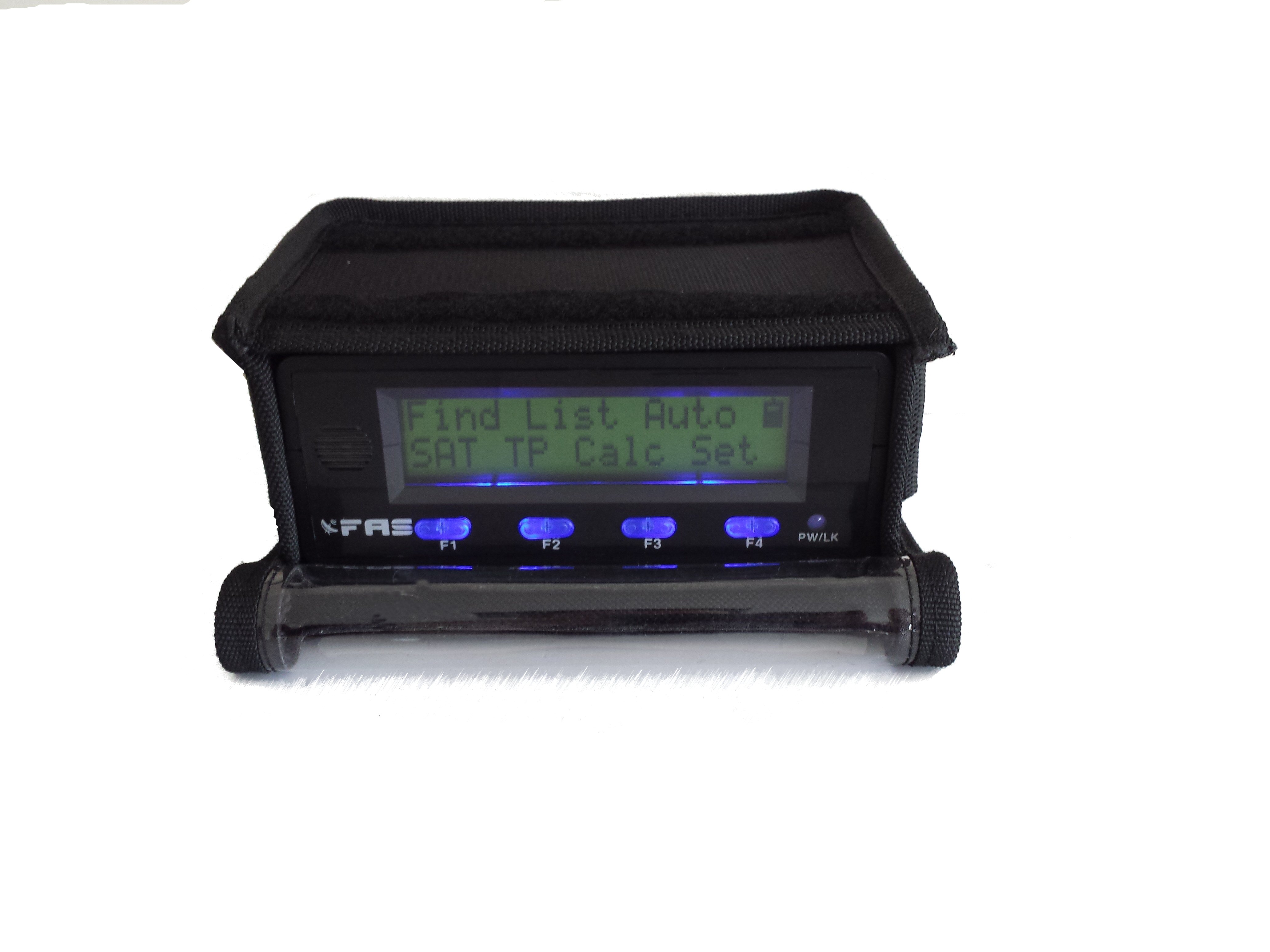

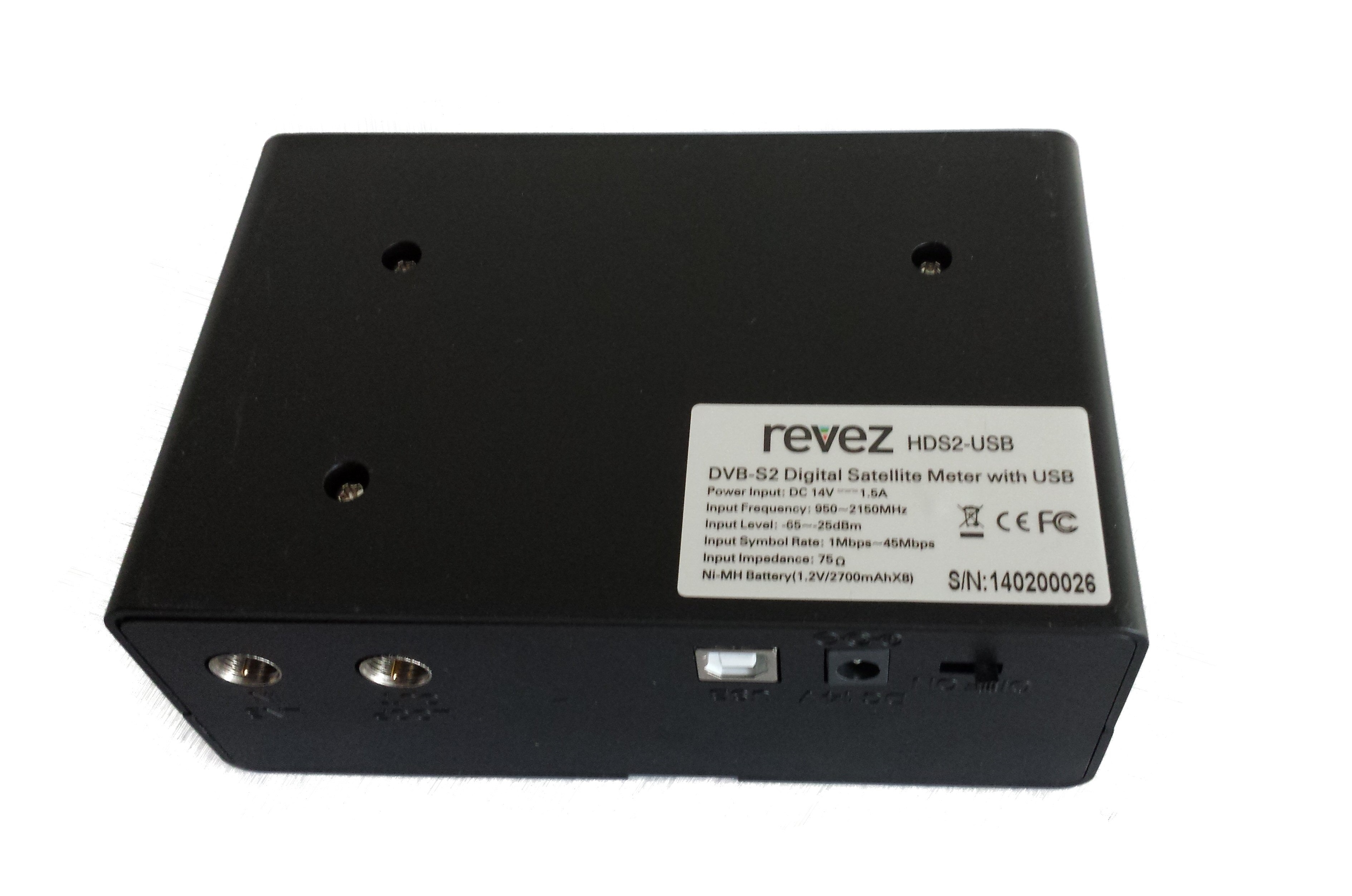

Revez HDS2-USB Satellite Meter
Brand new model Revez HDS2-USB Satellite Meter suitable for measuring DVB-S and DVB-S2 satellite signals.
New model with USB port and the possibility to upgrade data through the USB.
Package Includes:
- Revez HDS2-USB DVB-S2 Satellite Meter
- Waterproof Nylon Case and Carry Strap
- English User Manual
- Wall Charger
Features:
- Meter Supports DVB-S, DVB-S2
- Multi standard demodulation & decoding
- Uses LCM to display the satellite signal strength and quality
- Set up LO. of the LNB and the parameters of satellite TV, finds satellite signal accurately
- Built-in LCM backlight and controllable signal noise buzzer
- Can be used with either built in battery or external power supply
- Supports data update through USB port
Specification:
- Frequency Range: 950-2150MHz
- Operating Temperature: 0℃ ~ + 40℃
- Input Level Range: -65dBm~-25dBm
- Input connector: F type
- Symbol rate: 1 to 45Msps
- Impedance: 75Ω
- DiSEqC 1.0: Supported
- DC power supply: DC 14V
