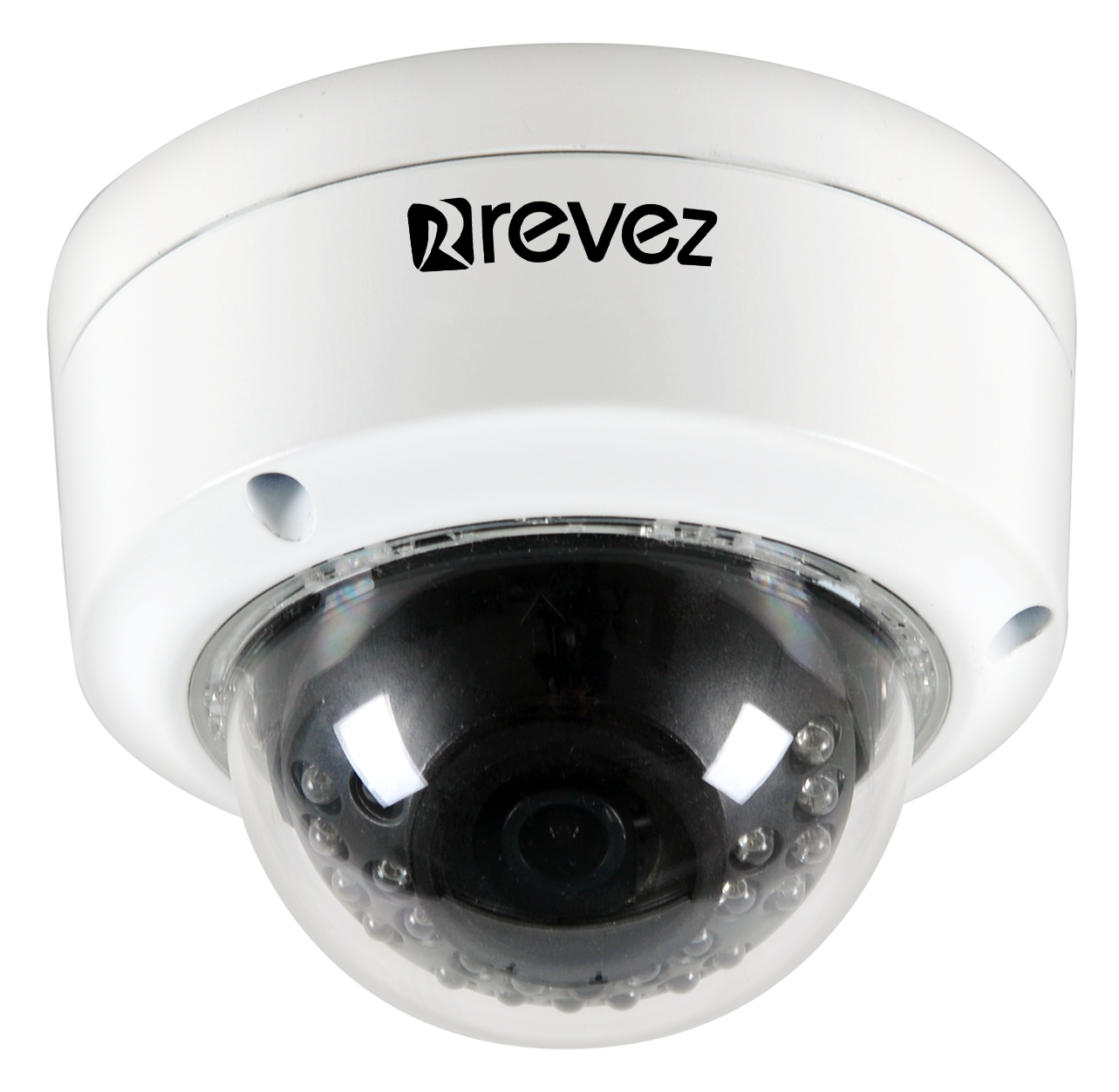

Revez IP 2MP Dome Camera 2.8mm
Latest range of Revez IP Cameras. Suitable for use as stand alone cameras or with Revez RAPID NVRs.
PoE Built in so no need to run seperate power cable when used with Revez RAPID NVR.
Specification:
| Camera | |
| Image Sensor | 1/2.8″ Sony Exmor CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded Linux |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.05 Lux @(F1.2, AGC ON) |
| B/W: 0.01Lux @(F1.2, AGC ON); 0 Lux with IR | |
| Shutter Time | 1s to 1/10,000s |
| Lens | 2.8mm, Angle of View: 90° |
| Lens Mount | φ12 |
| Auto Iris | DC Drive |
| Adjustment Range | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355° |
| Day& Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 100 dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.726/ADPCM |
| Bit Rate | 8K~48Kbps |
| Image | |
| Max. Image Resolution | 1920×1080 |
| Frame Rate | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 30fps (1920 × 1080), 30fps (1280 × 720) | |
| Triple Stream | Mainstream:1080P(1920*1080) |
| Substream:D1(704*576) | |
| 3rd stream:CIF(352*288) | |
| Image Settings | Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser |
| HLC | Y |
| Smart Defog | Y |
| Corridor | Y |
| EIS | Y |
| ROI | 4 Zones |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| Network | |
| Browser | IE 7+, Chrome 18 +, Firefox 5.0 + |
| Network Storage | NAS |
| Video Analytics | Tripwire/Perimeter |
| Alarm Trigger | Motion Detection/IP Conflict/MAC Conflict/Port Alarm |
| Protocols | TCP/IP/ICMP/HTTP/HTTPS/FTP/DHCP/DNS/DDNS/
RTP/RTSP/RTCP/PPPoE/NTP/UPnP/SMTP/SNMP/ IGMP/802.1X/QoS/IPv6/Bonjour |
| User Permission | 4 Level/8 Users |
| System Compatibility | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | N/A |
| Communication Interface | 1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Video Output | N/A |
| On-board Storage | N/A |
| Extension | N/A |
| General | |
| Operating Conditions | -35℃～60℃(IR OFF) /-35℃～40℃(IR ON), 0～95% RHG |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max 5.5W |
| Circuit Protection | TVS 6000V, Lightning/Surge 1000V Protection |
| Impact Protection | IP66, IK10 |
| IR Range | 25m |
| IR LEDs | 24pcs IR LEDs |
| Dimensions | 121.2mm × 121.2mm × 91.3mm |
| Weight | 500g (IP Camera Only); 800g (with Packing Box) |
