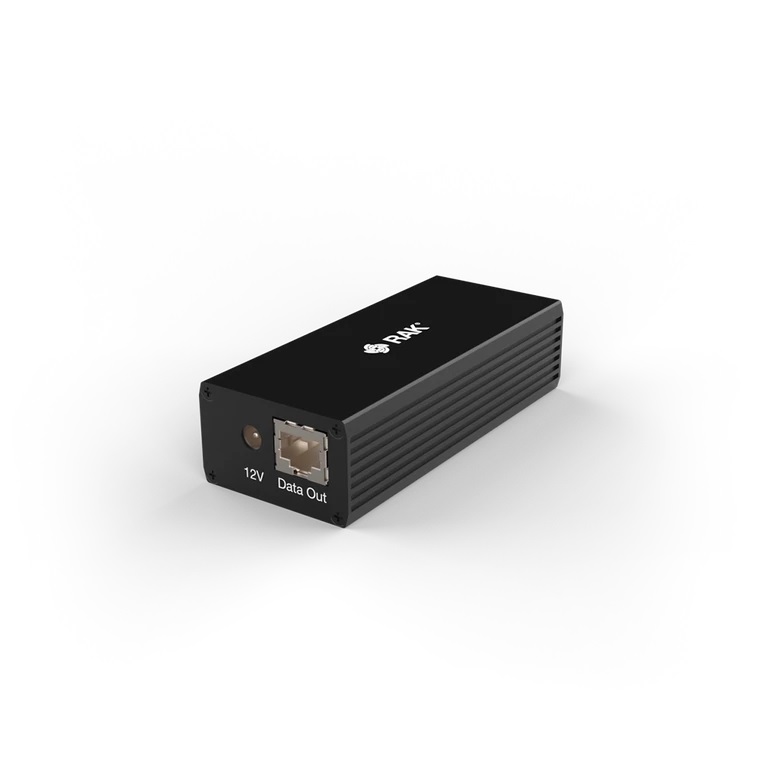

RAK POE Splitter DC Jack 12V 2.5A
The RAK PoE Splitter RAK9168 is a device that draws power from a traditional Category 5 twisted-pair Ethernet cable with PoE and complies with the IEEE 802.3af/at PoE standard. It has an isolated 42~57VDC input and a 30W DC-DC converter.
Product features
- Input: 42V~57V
- Full features 802.3af/at interface
- Output for the 12V version: 12V/2.5A Barrel jack
- Over current /short circuit protection
- Power Pin:1/2(+),3/6(-) or 4/5(+),7/8(-)
- Data Pin: 1/2,3/6,4/5,7/8
- Data speed: 10/100/1000Mbps
- Operating Temperature: -30℃～+75℃
Package inclusion
- For the 12V version
- 1x RAK9168/12V PoE splitter
- 1x Barrel jack cable (29 cm length)
- 1x Ethernet cable (27 cm length)
Suitable for the likes of Bobcat 300 Hotspot etc which utilize a 12v DC Jack
