RAK 5dBi Gain Fiberglass Antenna for Enclosures (Tuned to 868Mhz)

List price: 88.00
52.84
(64.99 inc VAT) You save: €35.16 (40%)
5dBi-RAK
In stock
+

Product Description

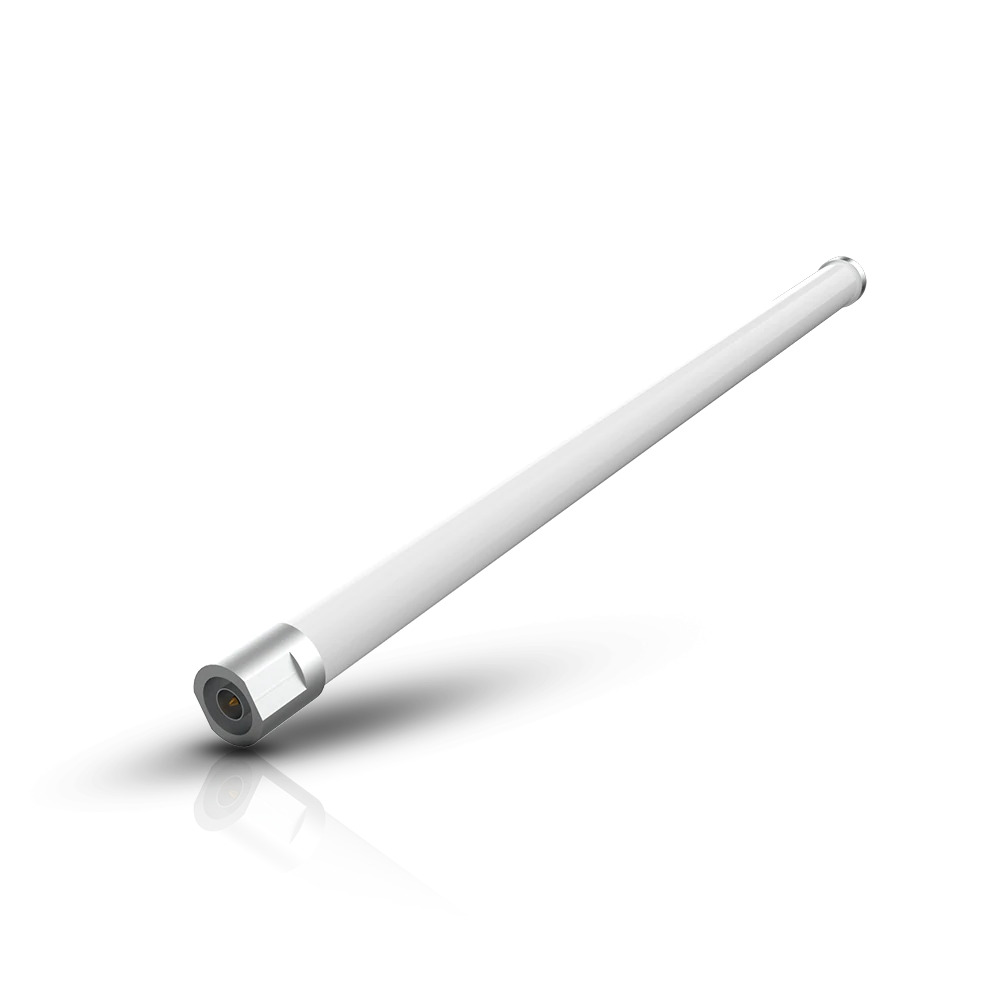

RAK’s 5 dBi fiberglass antenna is an outdoor, high-performance antenna, designed to withstand harsh outdoor conditions. It is specially designed for LoRa® in the 863-870MHz band – EU868, IN865, and RU864.

The antenna connector is one with the antenna body - this design further increases the resistance of the antenna to external conditions.

With a length of only 480 mm, this antenna will be the best fit for your LPWAN Gateway or outdoor deployed RAK Hotspot V2.

Note: This antenna is designed to be directly mounted on the enclosure of the Gateway. It is suitable for RAK7240 and RAK7249. The antenna is compatible with Outdoor Enclosure for RAK Hotspot V2, Bobcat Outdoor Enclosure Kit, Sensecap M1 Outdoor Ecnlosure Kit & Antenna Magnetic Base.

Product Features

  • Frequency: 863-870MHz
  • Gain: 5.0dBi
  • VSWR: ≤1.63
  • Beamwidth: 360 degrees
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • Radome Body: Fiberglass
  • Connector: N-Type Male
  • Dimensions: Փ 27.0 mm x 480.0 mm
  • Operation Temperature: -40°C~+75°C
  • Storage Temperature: -40°C~+85°C
  • IP67 rated
