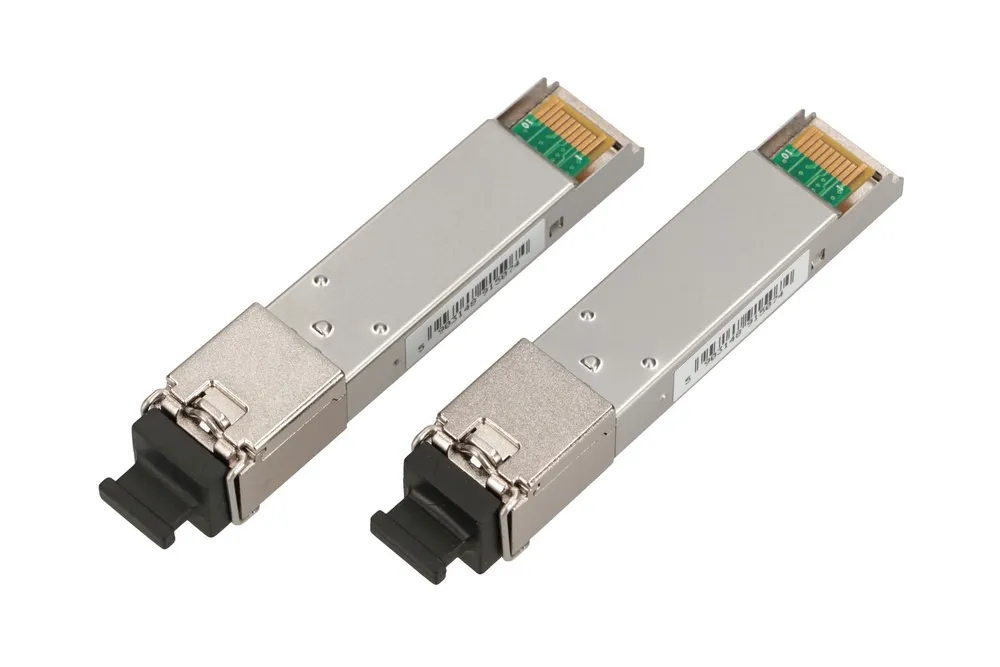

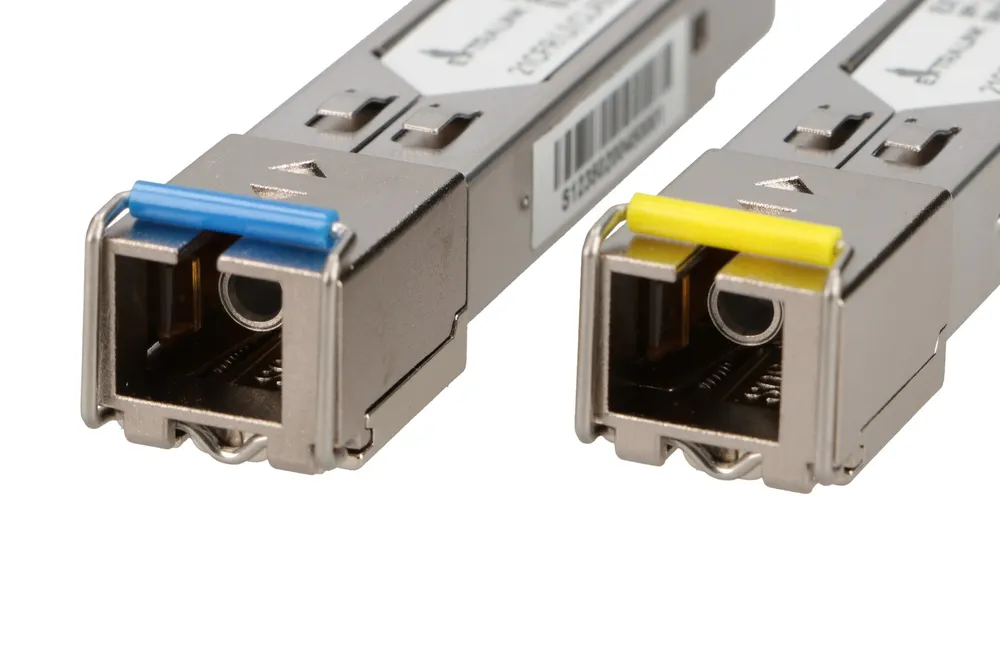

The Extralink SFP 1.25G 1310/1550NM fiber optic module is a single-mode SFP insert designed for data transmission at a speed up to 1.25 Gbps, which provides a transmission range of up to 3 km. It has an LC output connector
The SFP single-mode module is compatible with SONET OC-24-LR-1 and the EU directive RoHS. Digital diagnostic monitoring allows for external and internal calibration. The device supports WDM signal multiplication technology. SFP 1.25G cartridge can be used in Gigabit Ethernet, fiber optic channels, switch-to-switch, switched backplane applications, router/server interfaces and other optical transmission systems.
The SFP single-mode module is compatible with SONET OC-24-LR-1 and the EU directive RoHS. Digital diagnostic monitoring allows for external and internal calibration. The device supports WDM signal multiplication technology. SFP 1.25G cartridge can be used in Gigabit Ethernet, fiber optic channels, switch-to-switch, switched backplane applications, router/server interfaces and other optical transmission systems.
Features
- Dual data rate of 1.25 Gbps/1.063 Gbps
- Compatible with SFP MSA and SFF-8472 with SC/LC socket
- Digital diagnostic monitoring - internal or external calibration
- Compatibility with SONET OC-24-LR-1
- Compliance with RoHS Directive
- Single power supply +3.3 V
- Range up to 3km
- WDM technology
- Wavelengths - 1310 nm and 1550 nm
- Compatible with HP/Arub
