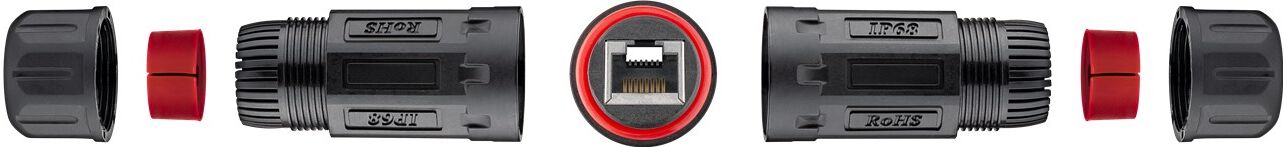

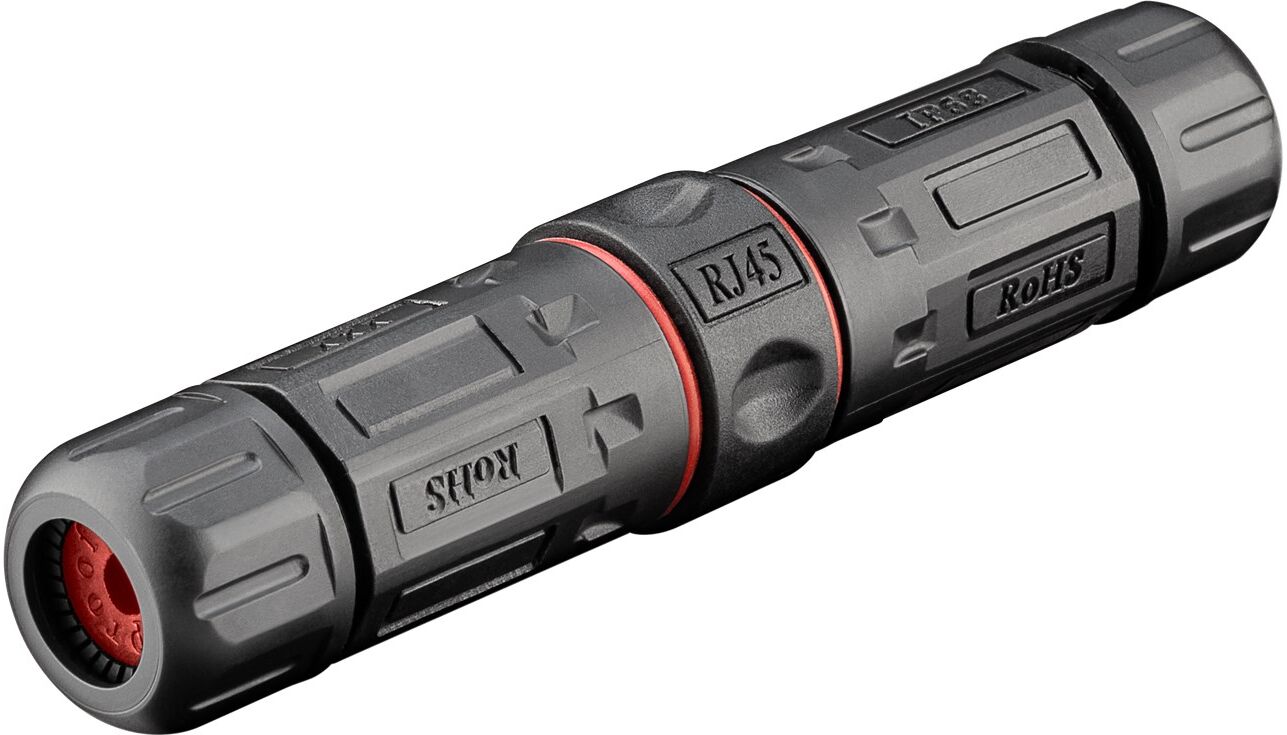

Outdoor CAT6 RJ45 Coupler - Dustproof & Waterproof
- Shielded cable connection (STP) for extending or linking 2x LAN cables with RJ45 plugs
- Cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68)
- Connector module to extend Ethernet cables without re-routing an entire cable segment
- Very slim connection module with waterproof cable gland
- Max. data transmission of 250 MHz guarantees an excellent network connection
- Suitable for terminated patch cables with a cable diameter of 4.0 - 8.0 mm
- Supports PoE+ applications (IEEE 802.3at)
Technical specifications
Connections
Connection, type
RJ45 female (8P8C)
Connection 2, type
RJ45 female (8P8C)
Cable
Shielding class
STP
Specification
CAT 6
Signal transmission
max. bandwidth
250 MHz
General
Packaging type
Bulk
protection class
IP68
Markings
WEEE, CE
Operating temperature from
0 °C
Operating temperature up to
70 °C
Length
120 mm
Diameter
28 mm
