OBO M32 Cable Gland - V-TEC VM32+ LGR + Locknut

List price: €4.00
€2.90
(€3.57 inc VAT) You save: €1.10 (28%)
2022770
In stock
+ −

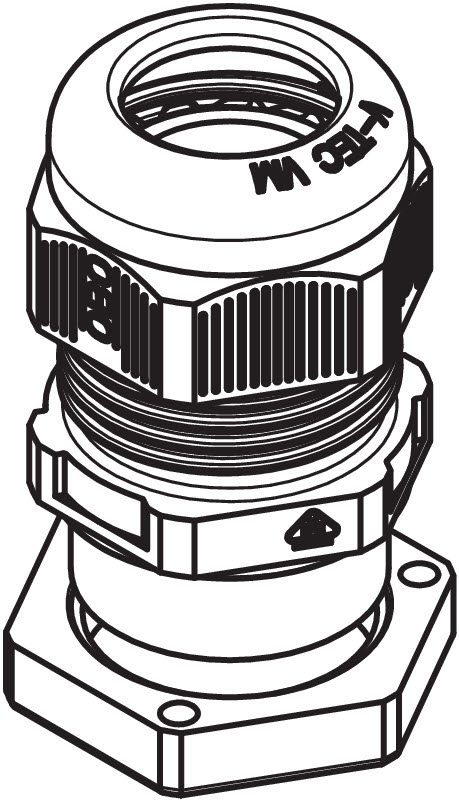

OBO M32 Cable Gland - V-TEC VM32+ LGR + Locknut

The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. A protection rating of IP68 is achieved through the integrated sealing lip and the special OBO slat technology. Strain relief and tightness have been tested to DIN EN 62444.


The connection threads are metric. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.
Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.
Temperature range: –20 °C to +65 °C.

Technical data

SW 1 36 mm
SW 2 41 mm
Version Straight
Type of seal Sealing ring
Bend protection no
Sealing range D 15 - 21 mm
explosion-proof no
Flat cable threaded connection no
For Ex zone gas Without
For Ex zone dust Without
Thread M32 x 1,5
Thread type Metric
Thread length 11 mm
Thread increase 1.5 mm
Nominal thread size 32
Fibre-glass reinforced no
Halogen-free yes
Installation torque 7.5 Nm
Multiple sealing insert no
With locknut no
Impact-resistant no
Protection rating IP68
Splittable gland no
max. permitted ambient temperature -20 - 65 °C
Material description Polyamide
Strain relief option yes

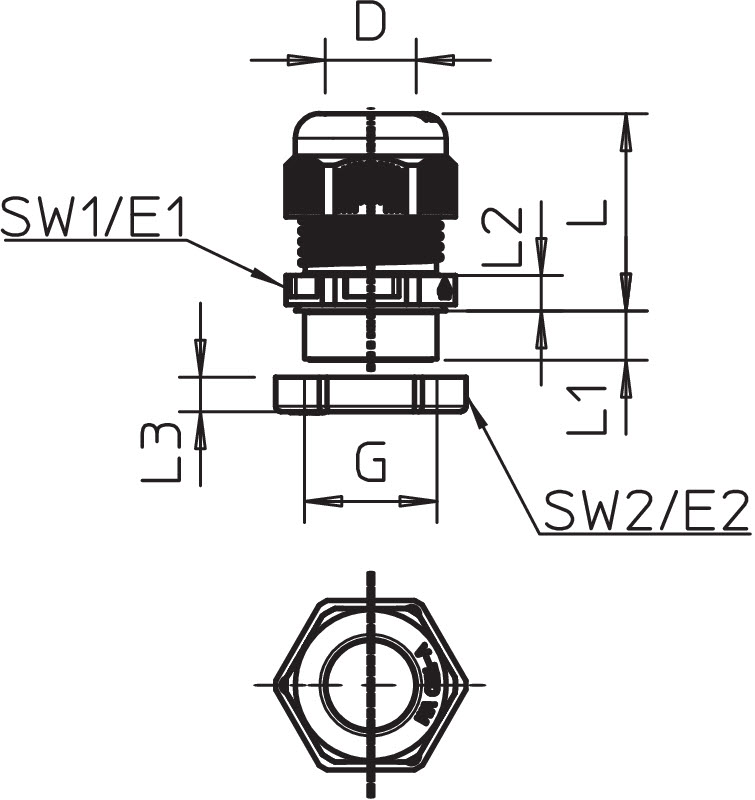

Dimensions

Dimension E1 41 mm
Dimension E2 46 mm
Dimension L min. 29 mm
Dimension L max. 40 mm
Dimension L1 11 mm
Dimension L2 6 mm
Dimension L3 7 mm
