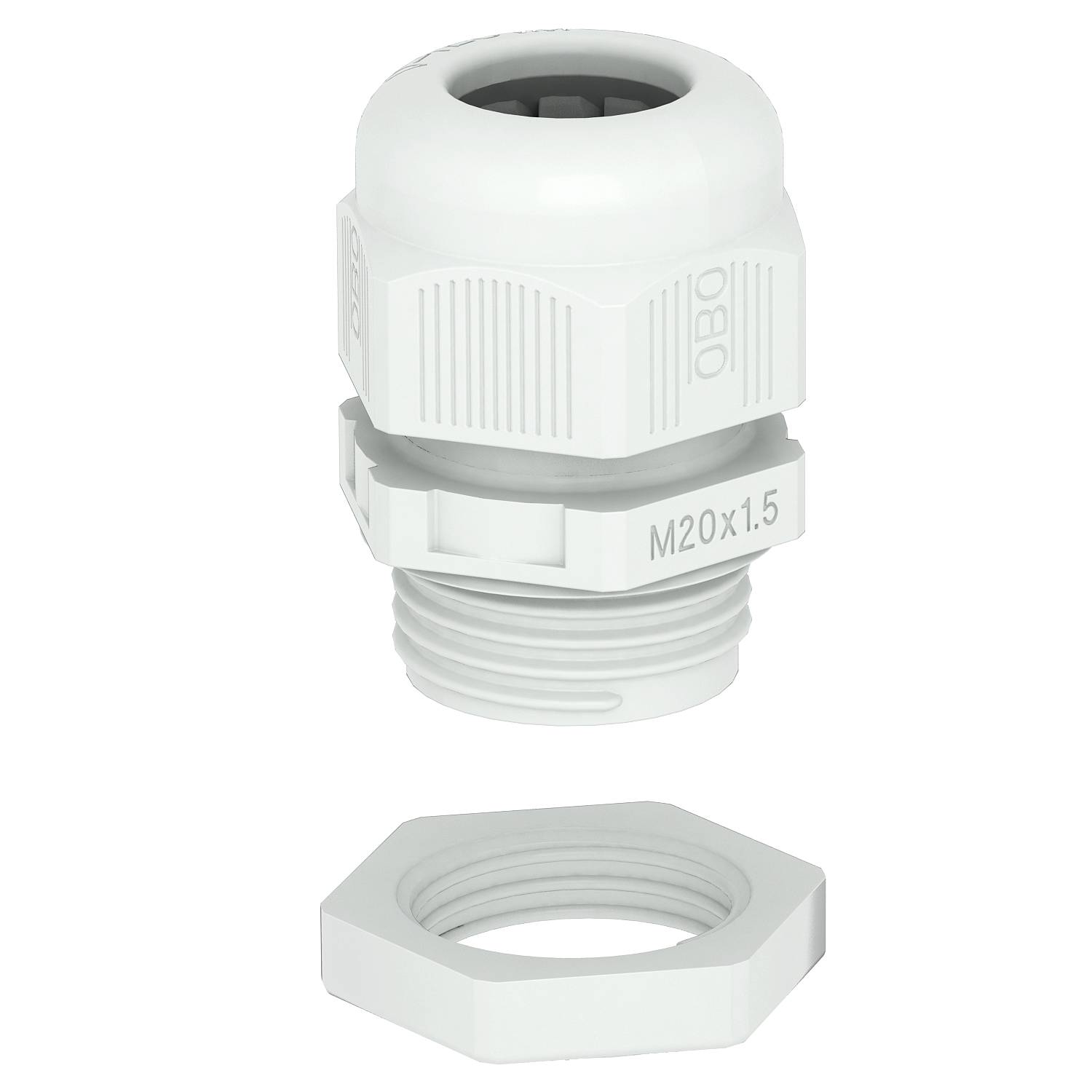

OBO M20 Cable Gland - V-TEC VM20+ LGR + Locknut

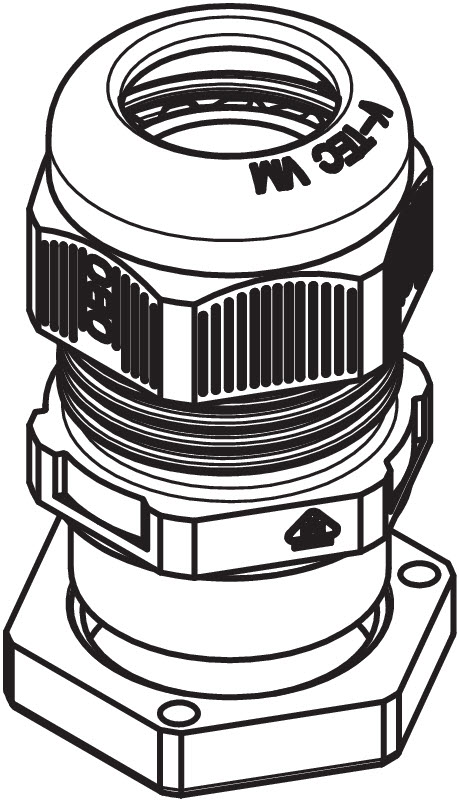

The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. A protection rating of IP68 is achieved through the integrated sealing lip and the special OBO slat technology. Strain relief and tightness have been tested to DIN EN 62444.
The connection threads are metric. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.
Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.
Temperature range: –20 °C to +65 °C.
Technical data
| SW 1 | 24 mm |
|---|---|
| SW 2 | 24 mm |
| Version | Straight |
| Type of seal | Sealing ring |
| Bend protection | no |
| Sealing range D | 6 - 13 mm |
| explosion-proof | no |
| Flat cable threaded connection | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread | M20 x 1,5 |
| Thread type | Metric |
| Thread length | 9 mm |
| Thread increase | 1.5 mm |
|---|---|
| Nominal thread size | 20 |
| Fibre-glass reinforced | no |
| Halogen-free | yes |
| Installation torque | 3.8 Nm |
| Multiple sealing insert | no |
| With locknut | no |
| Impact-resistant | no |
| Protection rating | IP68 |
| Splittable gland | no |
| max. permitted ambient temperature | -20 - 65 °C |
| Material description | Polyamide |
| Strain relief option | yes |

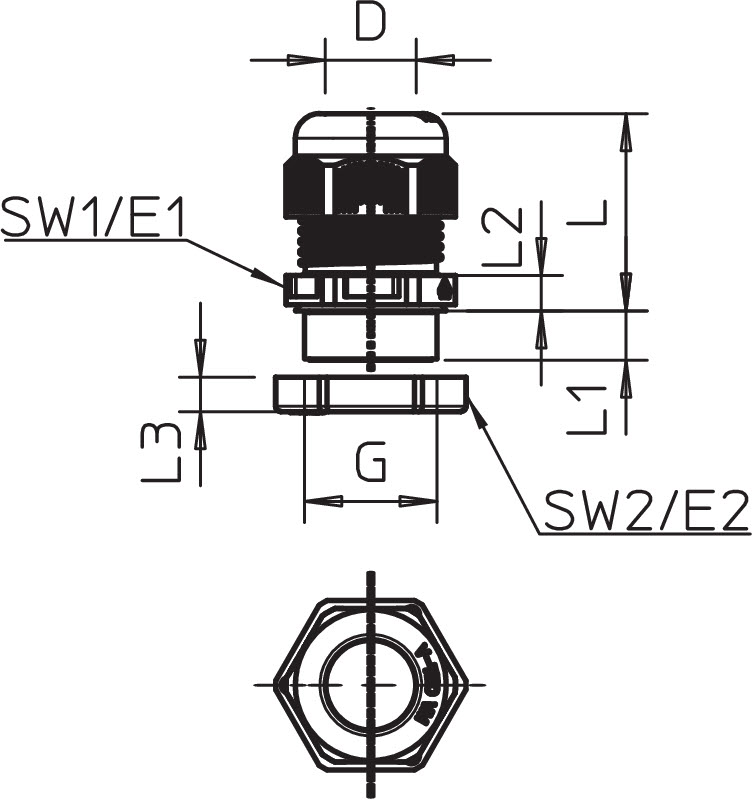

Dimensions
| Dimension E1 | 27 mm |
|---|---|
| Dimension E2 | 27 mm |
| Dimension L min. | 23.5 mm |
| Dimension L max. | 30.5 mm |
| Dimension L1 | 9 mm |
|---|---|
| Dimension L2 | 5 mm |
| Dimension L3 | 6 mm |
