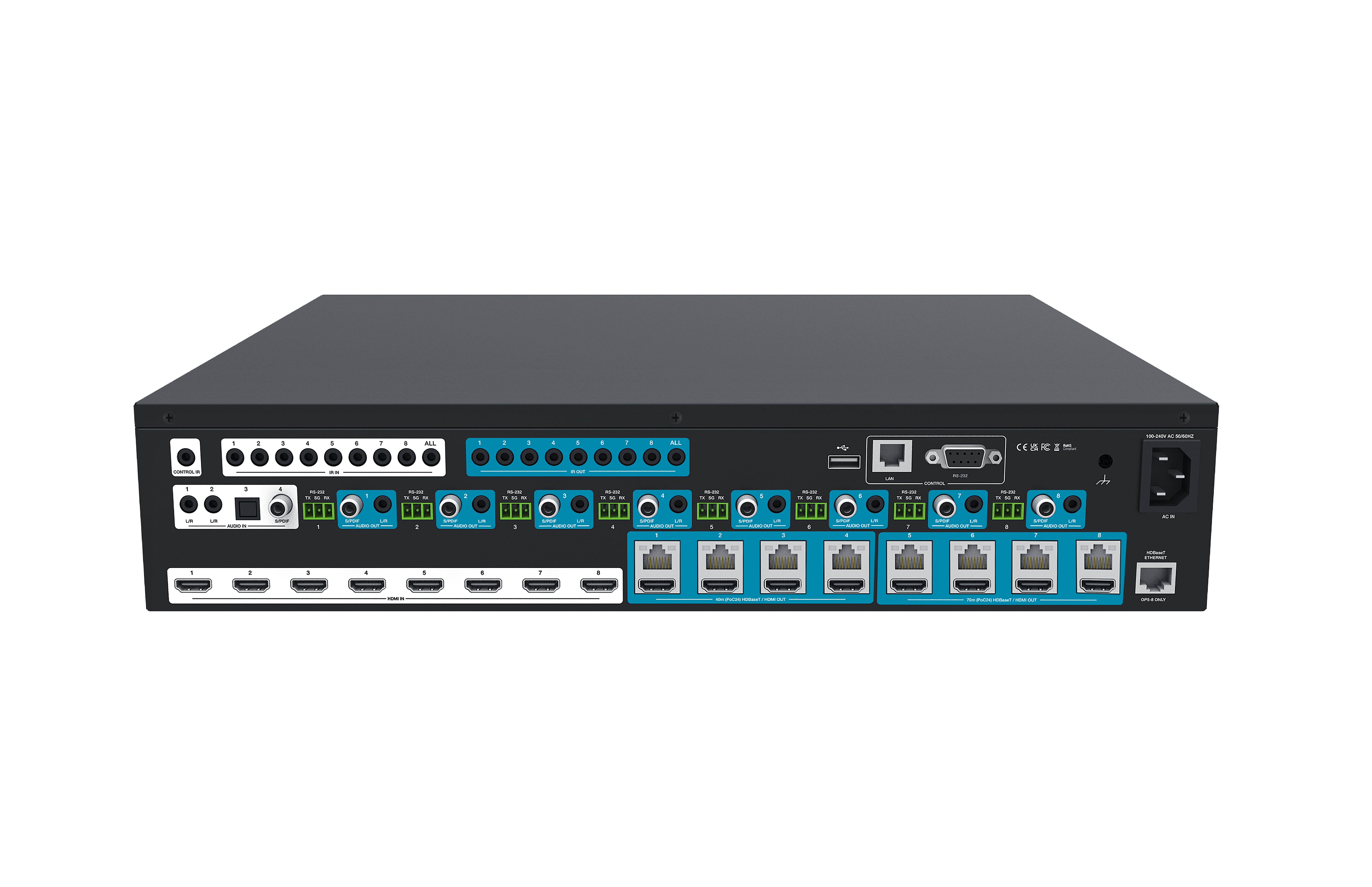

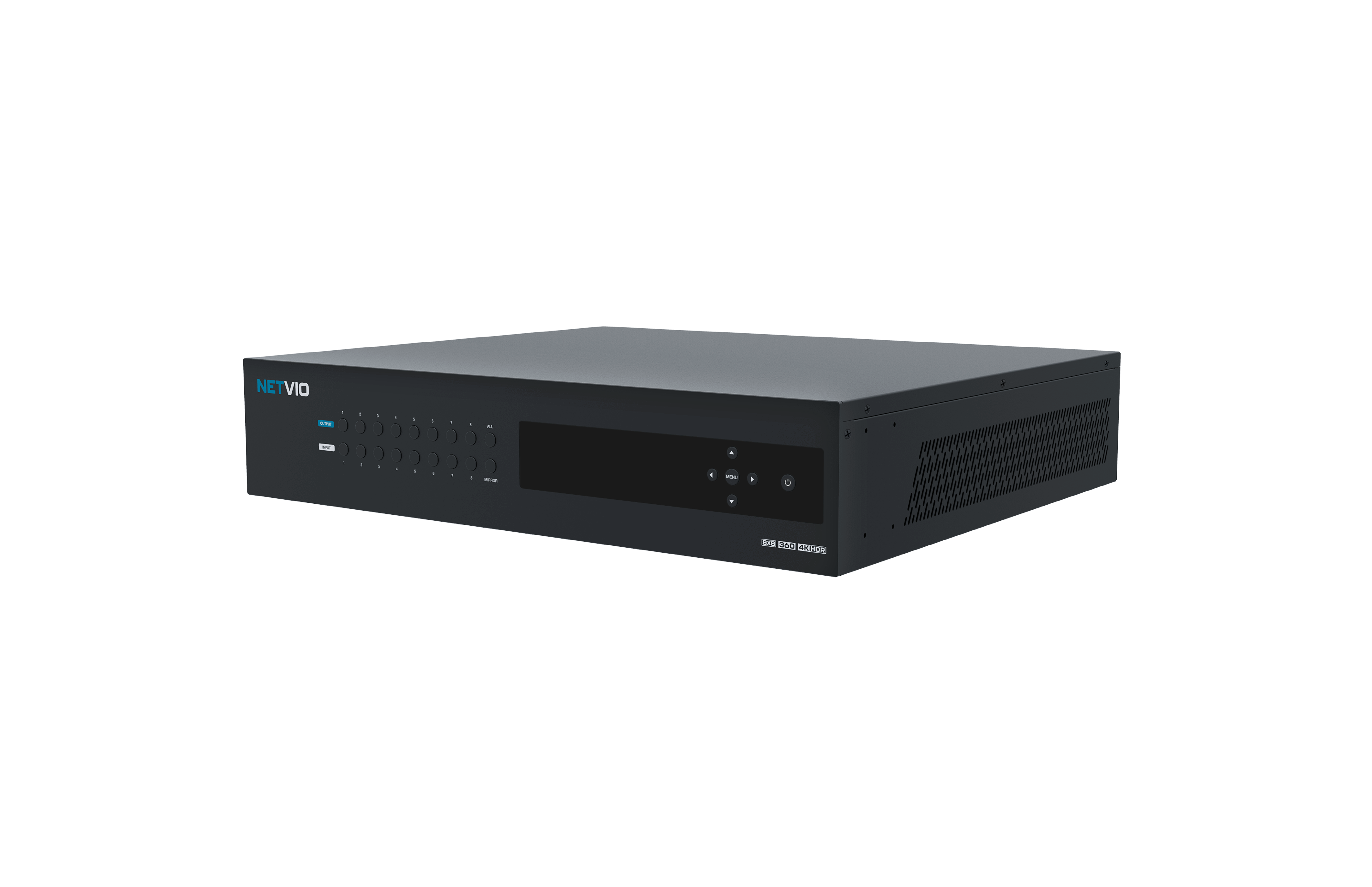

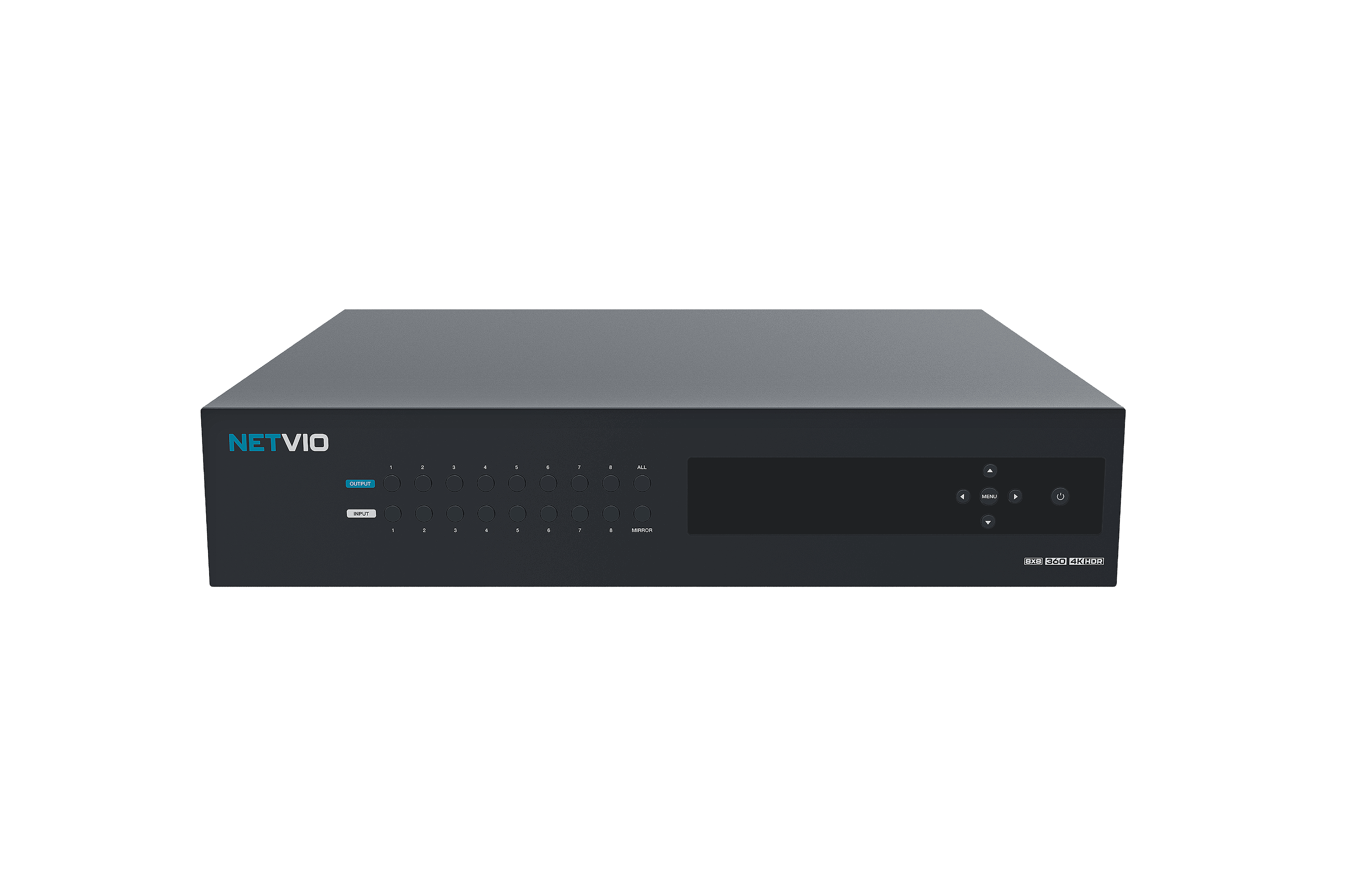

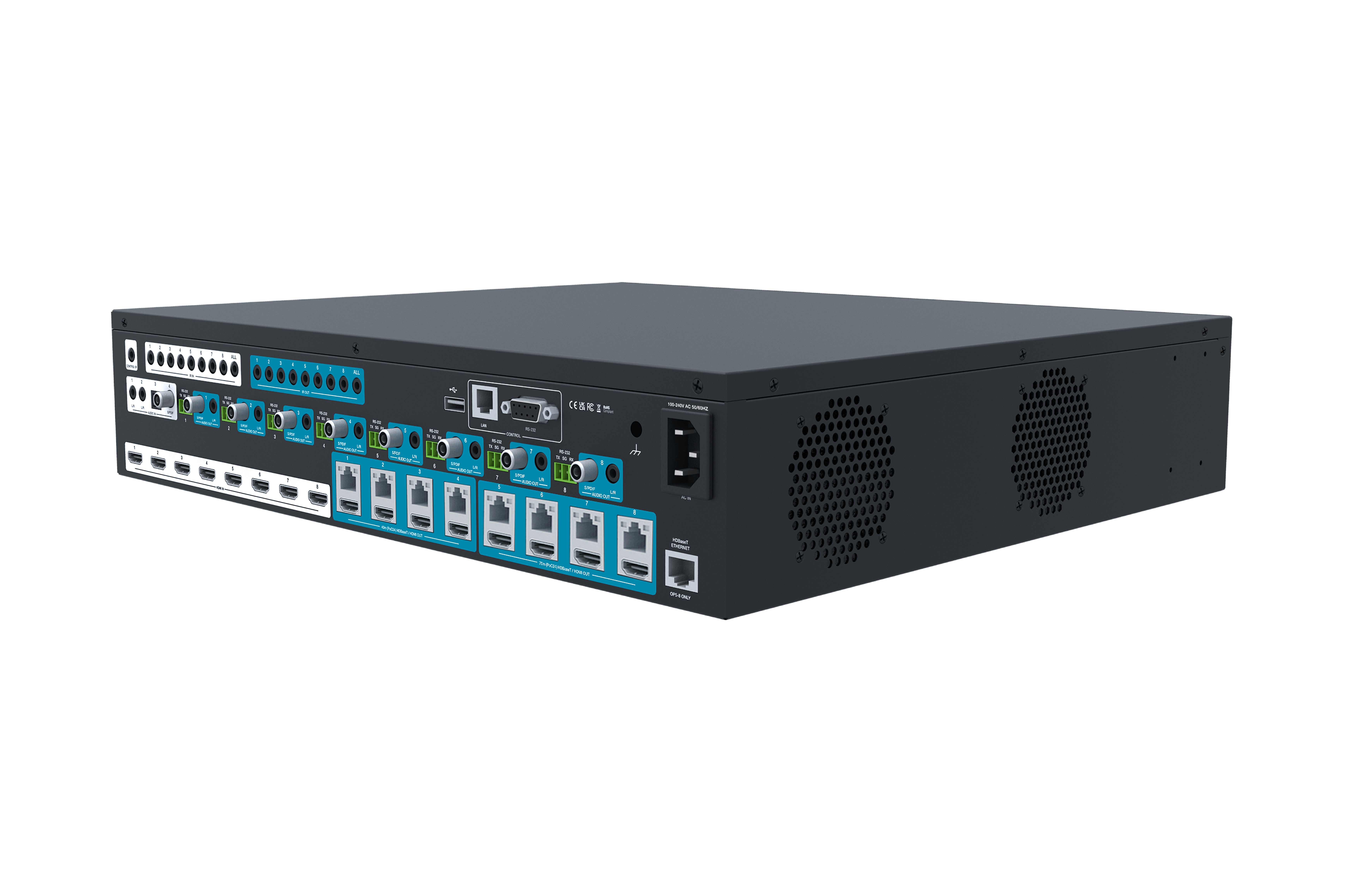

Netvio 8x8 Premium HDBaseT Matrix Switch | 4K@60Hz, ARC, HDMI Mirroring, 28x16 Audio Matrix, Netvio GO App
.png)
Not all 4K is the same
Netvio's powerful and reliable 4K60 video matrix offers the highest resolution with superior quality for professional installation. Don't settle for inferior solutions that offer low-grade performance at a lower cost - Netvio guarantees exceptional compatibility over secure, dedicated ethernet cabling.
.png)
OPs 5-8 | 70m 4K HDR
With the MX-HT2-0808, no installation obstacle is too great to overcome. Boasting an impressive 70m output cable and networking extension capabilities, this product ensures maximum quality preservation even in tough situations - all from outputs 5 to 8!
Multi Room Audio Matrix
The MX-HT2-0808-10 offers an effective solution for improving your profits and eliminating the need of a costly external audio matrix. This tool provides all the essential sound switching features you require, with none of the additional costs!
4 Source Audio Pre-Amp
Save time and resources with the MX-HT2-0808-10 audio preamplifier. This versatile device offers you solutions for both your audio and video requirements, allowing you to boost your revenues without having to splurge on separate equipment!
.png)
Capture & Distribute
Installers get a much-needed benefit with the MX-HT2-0808 10. Easily capture, route and enjoy your screen app's audio all through one device - no stress or hassle needed! Check out this breakthrough product to see how it can simplify connect to your audio system.
.png)
HDMI Mirror, Mirror ......
Enjoy the convenience of connecting multiple devices to your viewing experience with Netvio's MX-HT2-0808-10. This innovative product features HDMI mirror outputs, giving you the ability to add additional screens without any added expense – perfect for AVRs and creating a an expansive media solution.
4K to 1080p Scaling
With the MX-HT2-0808-10, you can effectively maximize your customer's viewing experience by utilizing our precision scaling technology. Avoiding any bulky converters often associated with compatibility issues between 4K and 1080p displays, this tech guarantees a seamless transition that produces visually stunning results every time.
10-Year Warranty Option
With our industry-leading 5 year standard warranty, you don't have to settle for just the basics. Upgrade your protection with a 10% increase and get up to an entire decade of worry-free coverage! Take advantage of our special SafeGuard warranty agreement today.
Specifications
VIDEO
- Encoding Data Rate
- HDMI: Max 17.82Gbs
- HDBaseT: Max 10.2Gbs subject to variable stream compression and up-conversion.
- Max Video Transmission
- 3840x2160 60fps 4:4:4 8b
- HDBaseT
- Outputs 1-4: HDBaseT (10.2Gb) @ 40m 4K/60 HDR | 70m/1080p.
- Output 5-8: HDBaseT (10.2Gb) @ 70m 4K/60 HDR | 100m/1080p.
- HDMI (Inputs/Outputs)
- Supporting HDMI 2.0b resolutions including 3840x2160 60fps HDR.
- Max Pixel Clock
- 600MHz / 600Mcsc
- HDR Compatibility
- HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
- Scaler Function
- 4K to 1920x1080 progressive
- Modes include, pass-through (no scaling), Fixed 4K → 2K, Automatic
- HDCP
- Inclusive up to 2.2
AUDIO
- Audio Formats:
- LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master
- Audio Outputs:
- 8no. 2ch variable line level stereo analog audio Jack socket
- 8no. S/PDIF audio via female RCA socket, S/PDIF digital audio supporting uncompressed PCM and non-linear PCM-encoded bitstreams.
- Audio Return Channel:
- ARC capture from compatible display, matrix & receiver (RX-HT2-40-20 | RX-HT2-70-10)
- Audio Only Inputs:
- 2no. 2ch Stereo analog line audio inputs via jack socket
- 1no. S/PDIF (supporting LPCM and proprietary bitstreams) audio via female RCA socket,
- 1no. S/PDIF (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket
- 28x16 Audio Matrix
- Inputs:
- HDMI Source de-embed 1-8
- HDMI ARC Zone 1-8
- HDBaseT ARC Zone 1-8
- Audio In 1, 2, 3, 4
- Outputs:
- No.8: Mirrorred HDMI outputs
- No. 8: HDBaseT outputs
- No. 8: Stereo+S/PDIF
COMMUNICATION & CONTROL
- HDMI:
- CEC, DDC
- HDBaseT:
- Supports CEC, DDC, Ethernet, RS-232 TXD, RXD and Infrared
- RS-232:
- Supports direct & routed RS-232 control, via a DB9 socket on the rear panel.
- Zone RS-232 Serial interface (3-pin) via Phoenix-style, 3.5mm pitch male receptacle.
- LAN:
- 1x IEEE 802.3u 100Base-TX Ethernet interface via “RJ45” socket.
- Local discovery and API console via Netvio 360 & Netvio Go APP, 3rd-party integration via public API
- Drivers & Control
- Drivers available for control systems including C4, Crestron, RTi & Elan.
- Discovery, configure, optimise, design via Netvio 360 utility.
- Full spectrum AV control via FREE Netvio app.
- EDID
- Automatic, Onboard pre-sets, Copy sync (RX)
ENVIRONMENTAL
- Storage
- 20°C / +60°C | 20% - 90% RH
- Operating
- 0°C / +40°C | 20% - 90% RH
OTHER INFORMATION
- Power Supply:
- Internal PSU. supporting worldwide AC voltages (e.g. 120V/60 USA, 230V/50 UK)
- FREE Software & Control
- Netvio 360 utility - discovery, configure, optimise, design, control
- Netvio GO - Full spectrum AV control
- Weights & Dimensions:
- Rack Units: 2RU
- Height: 88mm
- Width: 440mm
- Depth: 373mm
- Weight: 6.9kg
- In the box:
- Rack Ears
- IR Accessories
- Phoenix Connectors
- Remote Control
- Regionalised Power Lead
- Regulations
- Safety Approvals: CE, UKCA, FCC, RoSH
- Warranty
- 5-Year standard warranty (no registration required)
- 10-Years for 10% price increment
Note: RX Units Sold Seperately
