Netvio 70m 4K/60 | 100m 1080p | HDBaseT extender with ARC, 2-way IR, RS-232 & 2-way PoC
.png)
4K60 HDR to 70m
Network Extension
Using the same single ethernet cable as AV functions, 100BaseT ethernet is extended up to 70m from your network. HDBaseT Network extensions are Ideal for smart TVs, IP control or adding a wireless access point.
Capture
The EX-HT2-701-10 allows easy capture of ARC audio coming from your screen apps such Netflix & Spotify. Capture using HDMI or SPDIF then breakout out to your room amplifier using digital or analog connections.
Bi-Directional Control
With the EX-HT2-701-10 extender, you're able to effortlessly control both your display and media sources from either a traditional remote or integrated control system - with bi directional IR and RS 232 support.
Specifications
VIDEO
- Encoding Data Rate
- HDBaseT: Max 10.2Gbs subject to variable stream compression and up-conversion.
- Max Video Transmission
- 3840x2160 60fps 4:4:4 8b
- HDBaseT
- HDBaseT (10.2Gb) @ 70m 4K/60 HDR | 100m/1080p.
- HDMI
- Supporting HDMI 2.0b resolutions including 3840x2160 60fps HDR.
- Max Pixel Clock
- 600MHz / 600Mcsc
- HDR Compatibility
- HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
- HDCP
- Inclusive up to 2.2
AUDIO
- Audio Formats:
- LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master
- Audio Return Channel:
- ARC capture from embedded HDMI subject to display capability.
- 1no. (RX) S/PDIF display audio input (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket.
- Audio Outputs (TX):
- 1no. S/PDIF output (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket for direct audio system connection.
- 1no 3.5mm jack socket line level audio output for direct audio system connection.
COMMUNICATION & CONTROL
- HDMI:
- CEC, DDC
- HDBaseT:
- Supports CEC, DDC, 100BaseT Ethernet, RS-232 TXD, RXD and Infrared
- RS-232:
- Direct RS-232 Serial interface (3-pin) via Phoenix-style, 3.5mm pitch male receptacle.
- IR:

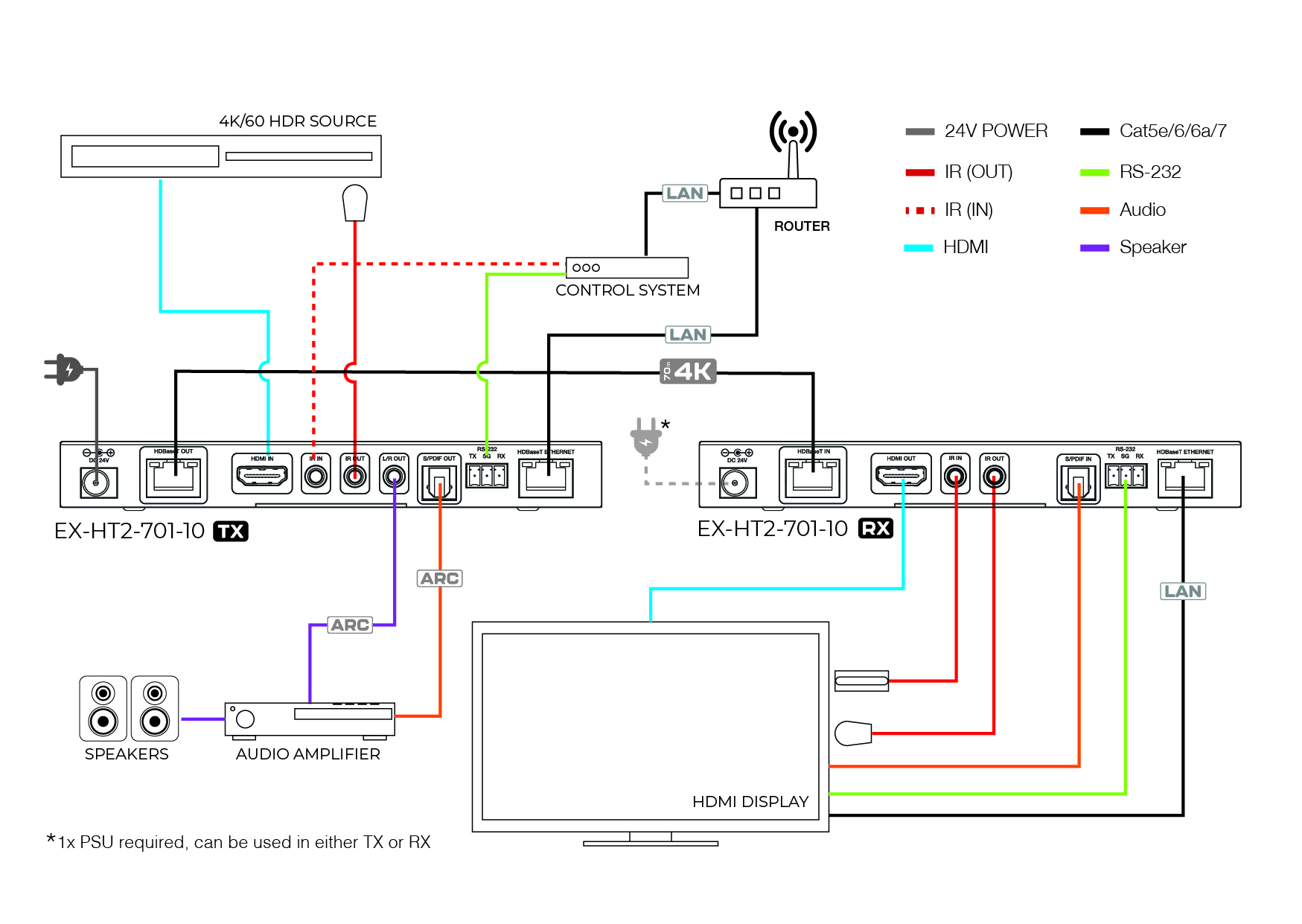

- Bi-directional Infrared, TX > RX, RX > TX via 3.5mm jack socket (see below for wiring schematic)
- LAN:
- 1x IEEE 802.3u 100BaseT Ethernet interface via “RJ45” socket.
- EDID:
- Automatic | HDMI copy from RX to TX.
- ARC:
- TX toggle switch for audio source selection: Display HDMI, display S/PDIF, TX de-embed.
ENVIRONMENT
- STORAGE:
- -20°C / +60°C | 20% - 90% RH
- OPERATING:
- 0°C / +40°C | 20% - 90% RH
OTHER INFORMATION
- Power Supply:
- 24v External PSU supporting power-over-cable (PoC). PSU can be connected to either TX or RX.
- Weights & Dimensions (per device):
- Height: 20mm
- Width: 165mm
- Depth: 88mm
- Weight: 170g
- In the Box:
- Mounting brackets
- IR Accessories
- Phoenix connectors
- 24v PSU
- Regulations
- CE, UKCA, FCC, RoSH
- Warranty
- 5-Year standard warranty
