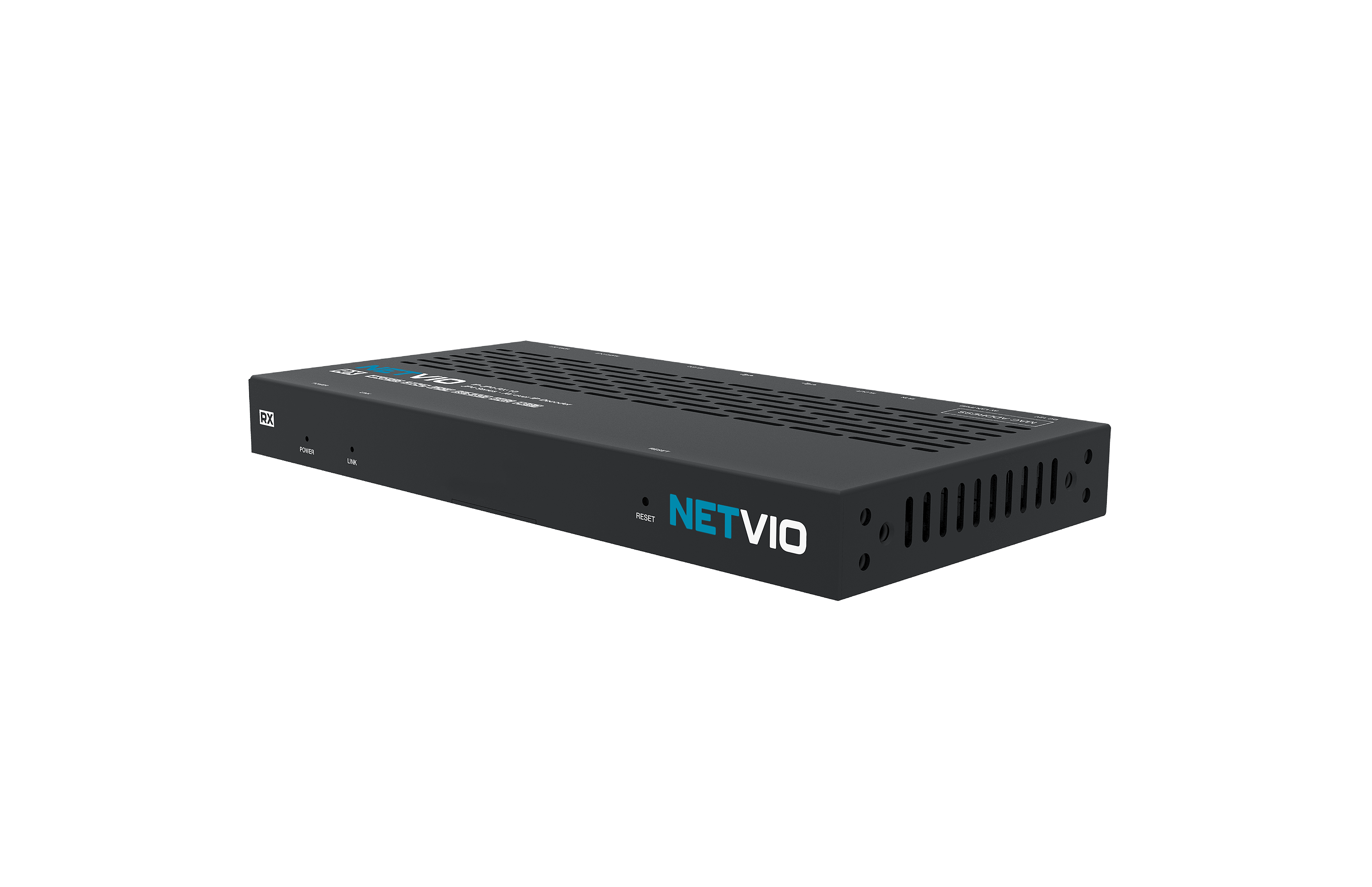

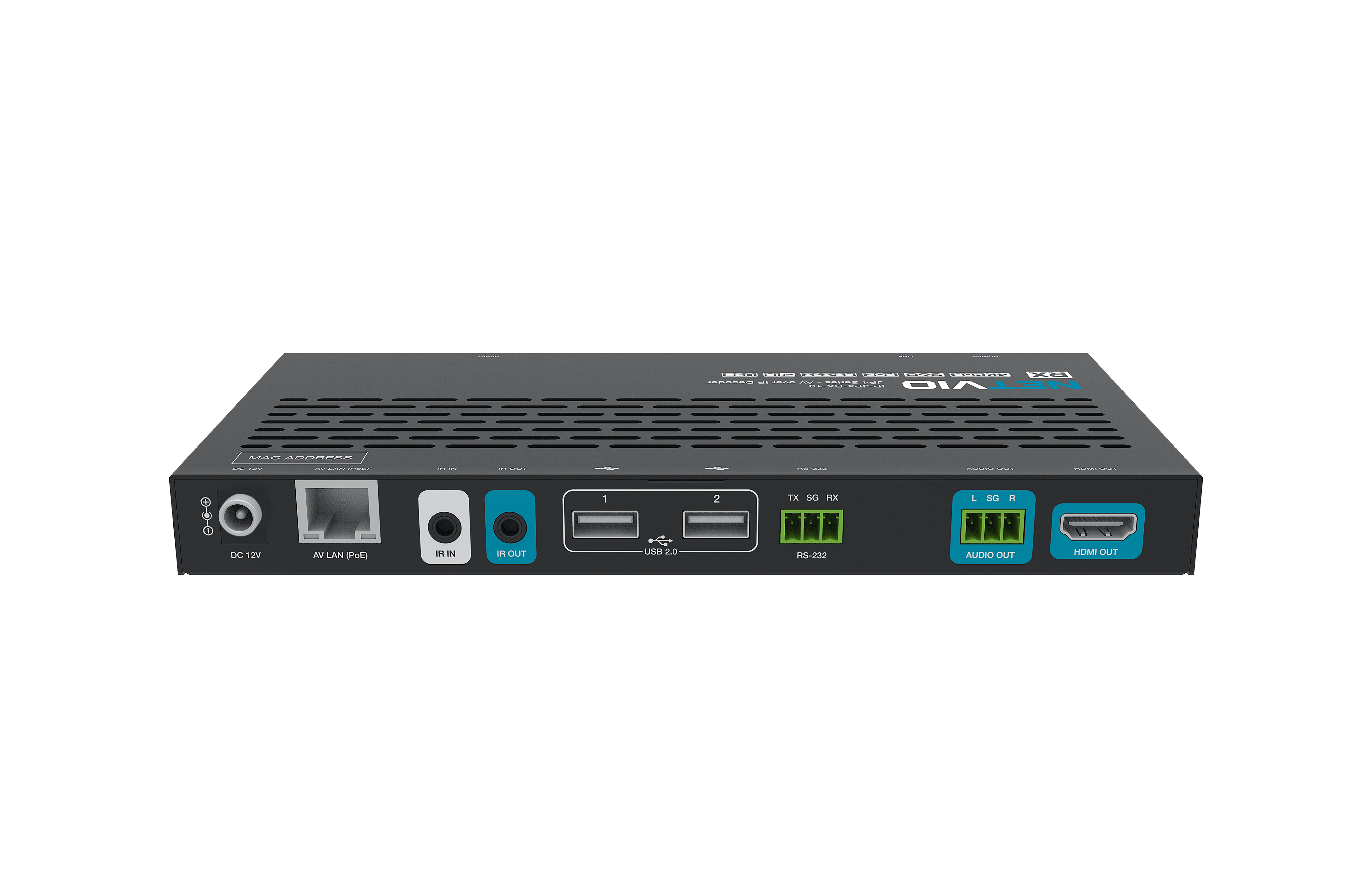

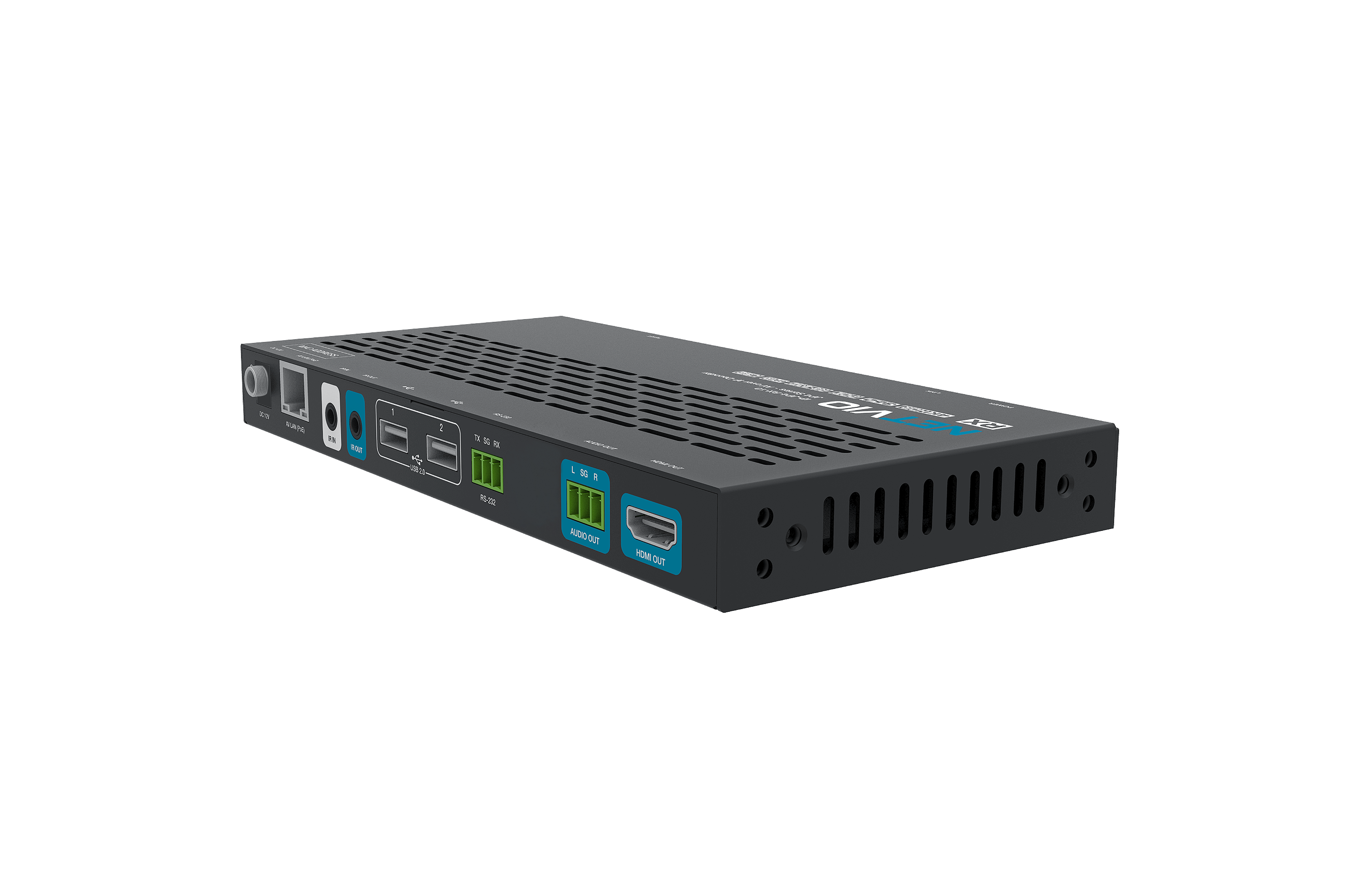

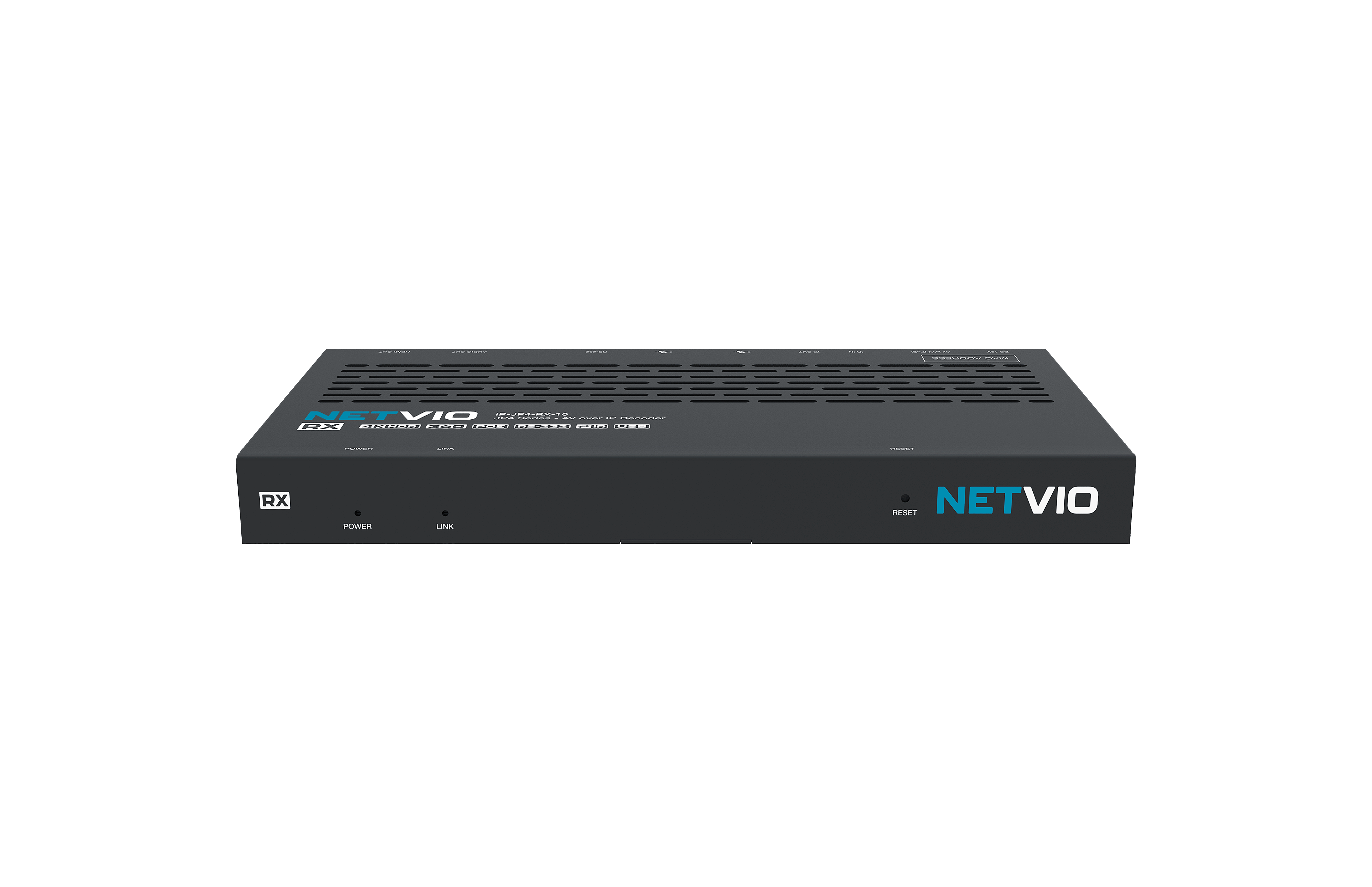

IP-JP4-RX-10
4K HDR AVoIP DECODER (RX)
JPEG2000 1Gb 4K HDR decoder | 1080p preview | Video Wall | IR | RS-232 | CEC | USB2.0 KVM | Enterprise Security.
4K HDR
LATEST 4K MEDIA
The JPEG2000 encoder is a revolutionary way to deliver content over 1Gb IP networks with minimal latency. It accepts 4K60 HDR from various HDMI media sources, reduces bandwidth requirements yet maintains high-quality video delivery. Provide your customers an immersive experience.
RTSP
PREVIEWS WITH AUDIO
Stunning 1080p real-time-preview-streams with stereo audio. HQ previews and audio are embedded in the latest control end-user control applications. Additionally they can be securely applied to a numerous array of software decoding applications. Watch media content on the go in a wi-fi enabled environment.
Surround Sound
1080P FULL HD
Dolby Atmos and DTS have reinvented how entertainment and creative media content is experienced. It has the ability to transport the listener into a spatial sound experience. The good news is that Netvio's JP4 series fully support these high-end audio formats.
Scaling
4K | 2K
With onboard scaling, you can now enjoy 4K HDR displays with legacy 2k equipment without having to worry about compatibility issues. Seamless auto scaling provides a refined viewing experience for all.
Security
ENTERPRISE LEVEL
The JP4 series is protected by a suite of encryption technologies that ensure the security and integrity between components. It features both internal browser sessions, which are encrypted with SSL (secure socket layer) protocol version 3 & TLS 1.2 protocols; as well as external connections using custom certificates to authenticate users.
USB
KVM | TOUCH SCREEN EXTENSION
Connect your peripheral devices over an IP network and you'll be able to create an interactive environment for all of those whiteboards, touch screens or other host computer enabled features. This high speed USB 2.0 embedded feature provides ultra fast performance with scalable convenience.
VIDEO WALLS
UPTO 16x16
16x16 video wall support including landscape and portrait modes with bezel adjustments. Best software interface for easy set-up. End-to-End solution completed with client side user control with ultra high quality real-time preview streaming.
Low Latency
ONE FRAME
Get the perfect balance between 4K HDR video quality and ultra low latency over a standard 1Gb network. This means you can present with confidence when interacting with content for even for your most demanding teaching and presentation environments.
Specifications
VIDEO
- Encoding Data Rate
- HDMI Input: Max 17.82Gb/s
- LAN Output: Max 850Mb/s
- Preview Output: Max: 20.48Mb/s + 2048Kb/s
- USB Throughput: Max ~60Mb/s
- Max Video Transmission
- Supports up to 4K HDR (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- IP Preview Main Output: 1920x10802 30fps
- IP Preview Sub Output: 960x5802 30fps
- HDMI
- HDMI 2.0 compatible 6Gbs 600MHz TMDS (e.g. 3840x2160 60fps 4:4:4 8b) via HDMI Type A Receptacle.
- Max Pixel Clock
- 300MHz / 300Mcsc
- HDR Compatibility
- HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
- Scaler Function
- 4K to 2K 8b
- Modes include, pass-through (no scaling), Fixed 4K → 2K, Automatic
- HDCP
- Inclusive up to 2.2
AUDIO
- Audio Formats:
- LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master
NETWORK
- LAN:
- 1x IEEE 802.3u 100Base-TX Ethernet interface via “RJ45” socket.
- Local discovery and API console via Netvio 360 & Netvio Go APP,
- 3rd-party integration via public API
- Delivery:
- Separate multicast group IPs for audio, video, infrared, serial, CEC, USB.
- Link manager via single multicast group IP from query device - response via unicast.
- Default API channel via unicast, secured using SSH protocol.
- Preview, Unicast RTSP protocol for media management of audio/video.
- End to End Latency
- HDMI: (HDMI passthrough) zero frames.
- HDMI path using compatible decoder = 1 video frame.
- HDMI path using compatible decoder with scaling = 2 video frames.
- Preview: ~1s (varies, no fixed clock) + decoder latency
ENVIRONMENTAL
- Storage
- 20°C / +60°C | 20% - 90% RH
- Operating
- 0°C / +40°C | 20% - 90% RH
COMMUNICATION & CONTROL
- HDMI:
- CEC, DDC
- USB:
- Supports KVM mode for multiple USB devices (decoder) to USB host (encoder) data routing, device emulation and data contention mitigation.
- RS-232:
- Supports serial generation and reception. Also supports serial routing from encoder --> decoder(s) and decoder --> encoder(s).
- IR:
- Supports Infrared generation and reception. Also supports IR routing from encoder --> decoder(s) and decoder --> encoder(s).
- Drivers & Control
- Drivers available for control systems including C4, Crestron, RTi & Elan.
- Discovery, configure, optimise, design via Netvio 360 utility.
- Full spectrum AV control via FREE Netvio application for Apple & Android devices.
- EDID
- Automatic, Onboard pre-sets, Copy sync (RX)
OTHER INFORMATION
- Power Supply:
- PoE/PoE+ IEEE 802.3af compliant (12W draw).
- FREE Software & Control
- Netvio 360 utility - discovery, configure, optimise, design, control
- Netvio GO - Full spectrum AV control
- Weights & Dimensions:
- Height: 22mm
- Width: 204mm
- Depth: 100mm
- Weight: 0.5kg
- In the box:
- Mounting brackets
- IR Accessories
- Phoenix connectors
- Regulations
- Safety Approvals: CE, UKCA, FCC, RoSH
- Warranty
- 5-Year standard warranty (no registration required)
