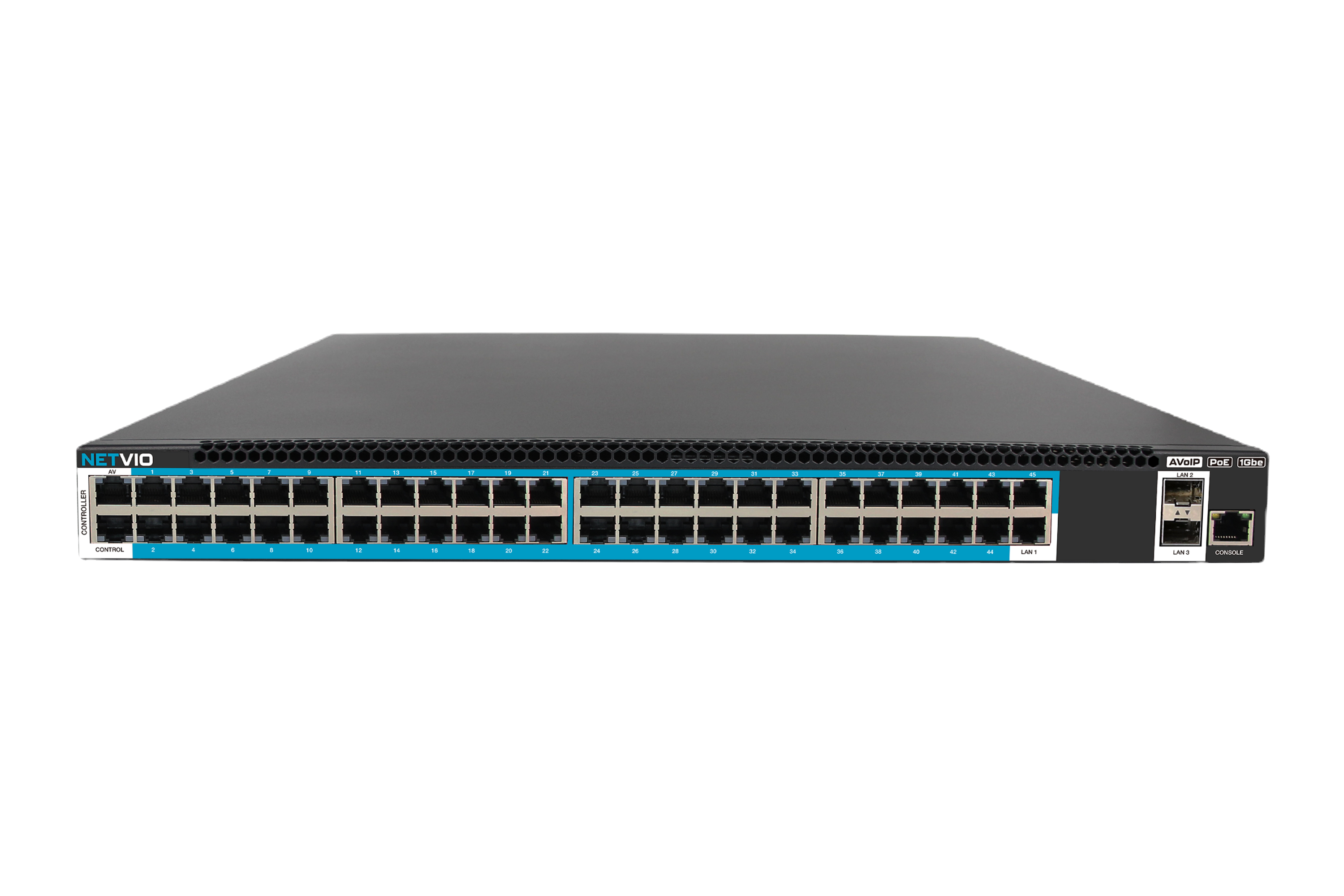

IP-SW-48P-10
48P | 1Gb | 1U | Plug & Play | AVoIP Network Switch Zero Configuration
END TO END SOLUTION
Netvio offers an unbeatable AVoIP solution with seamless integration of IP-SW series network switches, encoders, decoders, software, and end-user control applications. It is a single brand that covers all the bases, making installers’ lives easier and more profitable.
EVERYTHING PoE
Netvio IP-SW Pre-Configured network switches are a game-changer for AVoIP installations. With built-in support for IEEE802af and IEEE802.3at standard Power over Ethernet (PoE) up to 900W, these switches eliminate the need for separate power supply units (PSUs) for Netvio encoders, decoders, and controllers.
ONCE TOUCH SET-UP
Netvio IP-SW network switches are the ultimate solution for AVoIP systems, offering unparalleled convenience with their never-seen-before one-click network configuration and setup feature. Installers can now effortlessly configure and set up the network with a simple click, eliminating the usual complexities associated with network configurations.
VIDEO WALL & PREVIEWS
While Netvio IP-SW network switches excel in their ease of setup, it does not compromise on advanced features. The IP-SW series switches are capable of supporting video walls up to 16x16, Additionally, these switches also support RTSP (Real-Time Streaming Protocol), enabling seamless streaming of audio and video content.
Specifications
NETWORK Specification
Switch
- 48Port 100/1000 Base-TX | Fully Configured for Netvio JP4 Series
- Configuration via Netvio360 utility including ‘one touch’ network switch configuration.
- Supports upto 45 end-point devices (encoders or decoders)
- 3 Ports reserved for IP-JP4-CL-10 connection (2no.) & primary LAN or Router (1no.)
- 1440W PoE Capable across all 48 Ports
- Max PoE per port: 30W (Netvio devices 12W each)
Delivery
- Separate multicast group IPs for audio, video, infrared, serial, CEC, USB.
- Link manager via single multicast group IP from query device - response via unicast.
- Default API channel via unicast, secured using SSH protocol.
- Preview, Unicast RTSP protocol for media management of audio/video.
End to End Latency
- HDMI: (HDMI passthrough) zero frames.
- HDMI path using compatible decoder = 1 video frame.
- HDMI path using compatible decoder with scaling = 2 video frames.
- Preview: ~1s (varies, no fixed clock) + decoder latency
VIDEO Specification
Encoding Data Rate
- LAN Output: Max 850Mb/s
- Preview Output: Max: 20.48Mb/s + 2048Kb/s
- USB Throughput: Max ~60Mb/s
Max Video Transmission
- 3840x2160 60fps 8b 4:2:2
- IP Preview Main Output: 1920x10802 30fps
- IP Preview Sub Output: 960x5802 30fps
- HDMI 3840x2160 60fps 8b 4:4:4
HDMI
- HDMI 2.0 compatible 6Gbs 600MHz TMDS (e.g. 3840x2160 60fps 4:4:4 8b) via HDMI Type A Receptacle.
Max Pixel Clock
- 300MHz / 300Mcsc
HDR Compatibility
- HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
Scaler Function
- 4K to 2K 8b
- Modes include, pass-through (no scaling), Fixed 4K → 2K, Automatic
HDCP
- Inclusive up to 2.2
AUDIO Specification
Audio formats
- LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master
ENVIRONMENTAL Specification
Storage
- 20°C / +60°C | 20% - 90% RH
Operating
0°C / +40°C | 20% - 90% RH
COMMUNICATION & CONTROL Specification
HDMI
CEC, DDC
USB
- Supports KVM mode for multiple USB devices (decoder) to USB host (encoder) data routing, device emulation and data contention mitigation.
RS232
- Supports serial generation and reception. Also supports serial routing from encoder --> decoder(s) and decoder --> encoder(s).
IR
- Supports Infrared generation and reception. Also supports IR routing from encoder --> decoder(s) and decoder --> encoder(s).
Drivers & Control
- Drivers available for control systems including C4, Crestron, RTi, Elan, Savant & Demopad
- Discovery, configure, optimise, design via Netvio 360 utility.
- Full spectrum AV control via FREE Netvio application for Apple & Android devices.
EDID
- Automatic, Onboard pre-sets, Copy sync (RX)
OTHER INFORMATION
Power Supply
- 450W PoE IEEE 802.3af, IEEE802.3at compliant.
FREE Software & Control
- Netvio Configuration utility - discovery, configure, optimise, design, control
- Netvio Control
Weight & Dimensions
- Height: 46mm (1U)
- Width: 440mm (without rack ears)
- Depth: 200mm
- Weight: 4.0kg
In the Box
- Mounting brackets
- Regionalized IEC Power Cord
Regulations
- Safety Approvals: CE, UKCA, FCC, RoSH
Warranty
- 5-Year Standard Warranty
