Netvio 40m 4K Ultra HD | 70m 1080p | HDBaseT extender with 2-way IR, RS-232 & 2-way PoC

Netvio 40m 4K Ultra HD | 70m 1080p | HDBaseT extender with 2-way IR, RS-232 & 2-way PoC

4K UHD ON A BUDGET

Give your high-definition visuals the ultimate boost with our cost-effective entry level 4K UHD HDMI extender. Enjoy a stunningly clear Ultra HD image resolution, without breaking the bank!

BI-DIRECTIONAL CONTROL

With the EX-HT2-401-10 extender, you're able to effortlessly control both your display and media sources from either a traditional remote or integrated control system - with bi directional IR and RS 232 support.

TX OR RX POWER

With the EX-HT2-401-10, you can make installation and maintenance of AV much simpler. Its 2-Way Power Over Cable makes it possible to power your extender from either the source or display location - a convenient solution that helps take away some of life's small headaches.

5-YEAR WARRANTY

When selecting a product, warranty coverage is an essential component of your purchase decision. Netvio understands this and provides you with the leading industry standard – five years of worry-free protection on all extender products.  Netvio today!

Specifications

VIDEO

• Encoding Data Rate​

• HDBaseT: Max 10.2Gbs

• Max Video Transmission

• 3840x2160 30fps 4:4:4 8b

• ​HDBaseT

• HDBaseT (10.2Gb) @ 40m 4K/60 HDR | 70m/1080p.

• ​HDMI

• Supporting HDMI 2.0b resolutions including 3840x2160 60fps HDR.

• ​Max Pixel Clock

• 300MHz / 300Mcsc

• HDR Compatibility (30fps)

• HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision

• ​HDCP

• Inclusive up to 2.2

AUDIO

• Audio Formats​

• LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master

COMMUNICATION & CONTROL

• HDMI:

• CEC, DDC

• HDBaseT:

• Supports CEC, DDC, RS-232 TXD, RXD and Infrared.

• RS-232:​

• Direct RS-232 Serial interface (3-pin) via Phoenix-style, 3.5mm pitch male receptacle.
• IR​:

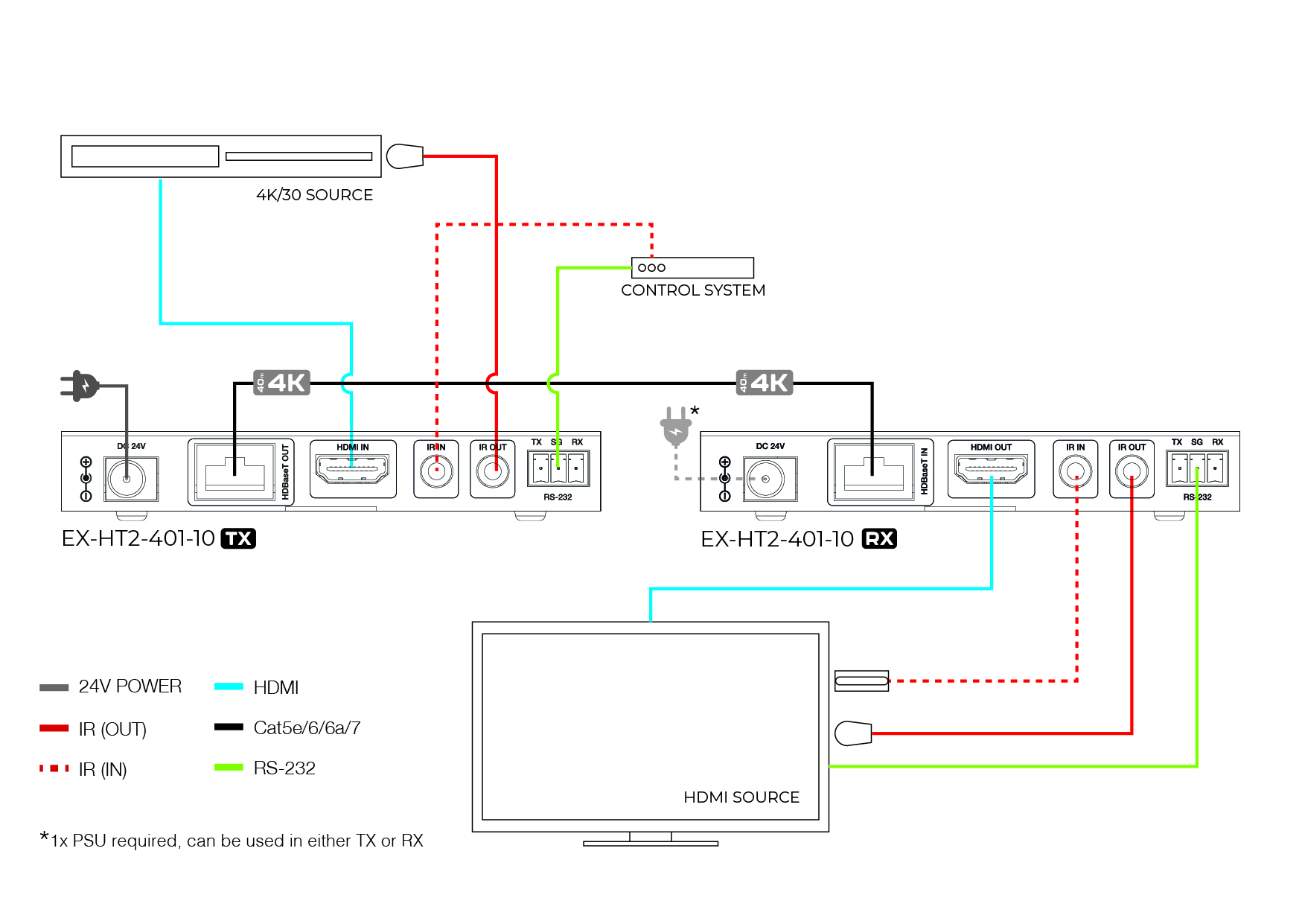

• Bi-directional Infrared, TX > RX, RX > TX via 3.5mm jack sockets (see wiring schematic)

• EDID:

• Automatic, HDMI copy from RX to TX.

ENVIRONMENT

• STORAGE:

• -20°C / +60°C  | 20% - 90% RH

• OPERATING:

• 0°C / +40°C  | 20% - 90% RH

OTHER INFORMATION

• Power Supply:

• 24v External PSU supporting power-over-cable (PoC). PSU can be connected to either TX or RX.

• Weights & Dimensions (per device):​

• Height: 17mm
• Width: 115mm
• Depth: 65mm
• Weight: 100g

• In the box:

• Mounting brackets
• IR Accessories
• Phoenix Connectors
• 24v PSU

• Regulations

• Safety Approvals: CE, UKCA, FCC, RoSH

• Warranty

• 5-Year standard warranty
