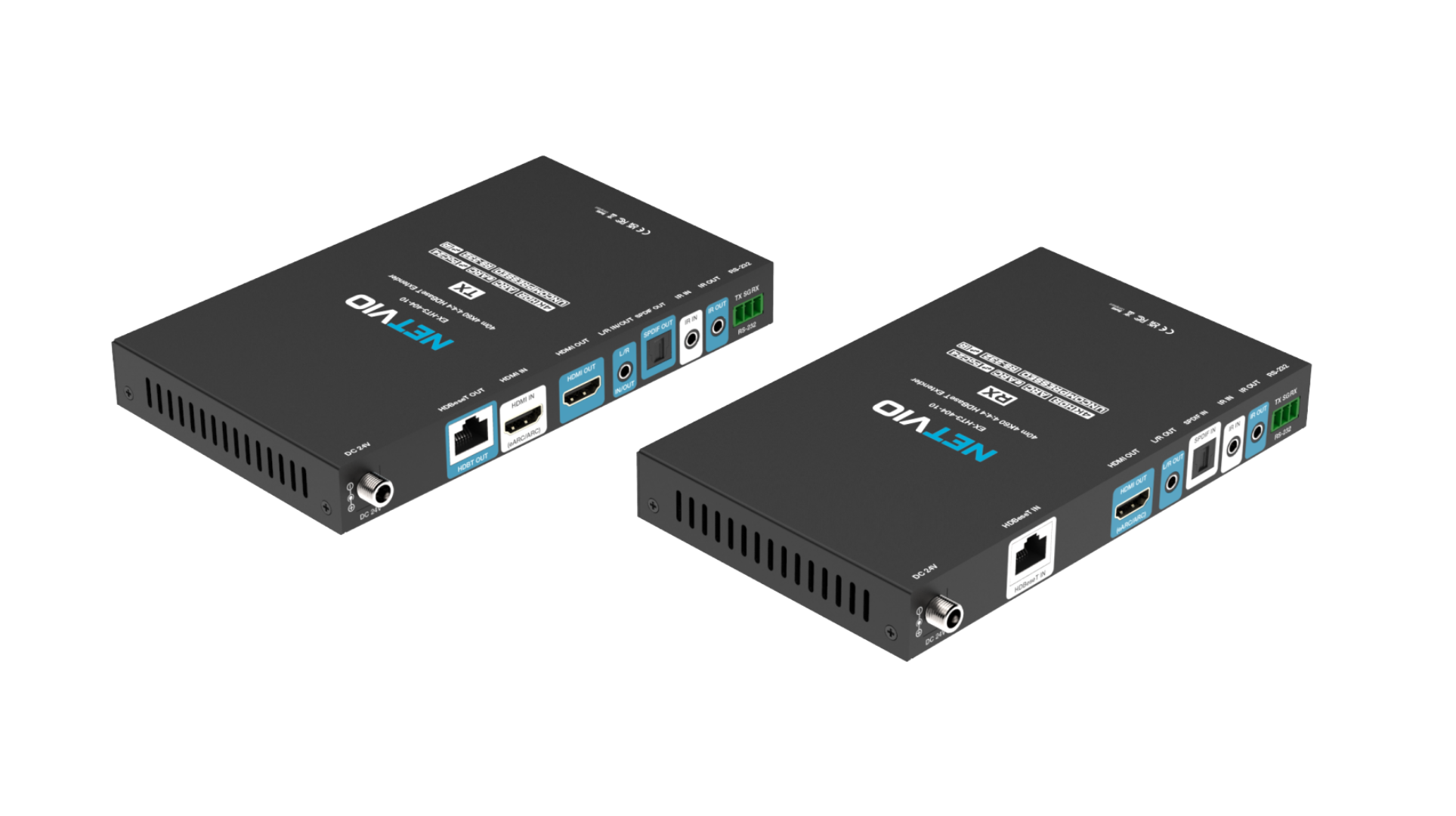

Netvio 40m 4K/60 18Gb Uncompressed | HDBaseT 3.0 Extender with eARC, 2-way IR, RS-232 & 2-way PoC

Latest HDBaseT 3.0

The very latest in high-speed data transmission technology. Netvio's HDBaseT3.0 extender increases the available bandwidth of dedicated ethernet cable from 10Gb to an amazing 18Gb. This provides plenty of bandwidth to support the very latest in video and multichannel audio formats.

Purest Uncompressed

Designed to provide the best possible signal quality for applications that require top-of-the-line display technology. The 4001-10 extends the purest signal beyond standard HDMI cables, delivering 4K60 HDR at distances of up to 40 meters.



Enhanced Audio Return

Supports the very latest HDMI2.1a eARC function including high-bitrate audio formats up to192kHz, 24-bit, and uncompressed 5.1 and 7.1, and 32-channel uncompressed audio. It also supports DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®.

Focus on Value

The 4001-10 is the perfect solution for integrators who want the best audio and video quality without the cost of unwanted features. Netvio's attention is to focus on the purest audio and video transmission, as well as enhanced audio return, making it the best value HDBaseT3.0 extender available.

Specifications

VIDEO

• Encoding Data Rate

• 18Gbs Uncompressed
• Max Video Transmission
• Up to 3840x2160p 60Hz 4:4:4 10bit with HDR
• ​HDBaseT

• HDBaseT3.0  (18Gb) @ 40m (131ft) 4K/60 HDR

• ​HDMI
• Supporting HDMI 2.0b (backward compatible)
• ​Max Pixel Clock
• 600MHz / 600Mcsc
• HDR Compatibility
• HDR, HDR10, HLG, HDR10+, Dolby Vision
• ​HDCP
• Inclusive up to 2.3

AUDIO

• Audio Formats:

• LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master, Dolby Atmos and DTS:X

• Enhanced Audio Return Channel:

• Supports up to 32 channels of audio, including eight-channel, 24bit/192kHz uncompressed data streams at speeds of over 37Mbps.
• eARC capture from embedded HDMI subject to display capability.
• 1no. (RX) S/PDIF display audio input (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket.

• Audio Outputs (TX & RX):

• 1no. S/PDIF output (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket for direct audio system connection.

• 1no 3.5mm jack socket line level audio output for direct audio system connection.

ENVIRONMENTAL

• Storage

• 20°C / +60°C | 20% - 90% RH

• Operating

• 0°C / +40°C | 20% - 90% RH

COMMUNICATION & CONTROL

• HDMI:

• CEC (power, volume, mute), DDC

• HDBaseT:

• Supports CEC, DDC, RS-232 TXD, RXD and Infrared

• RS-232:

• Direct RS-232 Serial interface (3-pin) via Phoenix-style, 3.5mm pitch male receptacle.

• IR:

• Bi-directional Infrared, TX > RX, RX > TX via 3.5mm jack socket.

• EDID:

• Automatic | HDMI copy from RX to TX.

• eARC:

• TX toggle switch for audio source selection: Display HDMI, display S/PDIF, TX de-embed.

OTHER INFORMATION

• Power Supply:

• 24v External PSU supporting power-over-cable (PoC). PSU can be connected to either TX or RX.

• Weights & Dimensions (per device):

• Height: 22mm
• Width: 170mm
• Depth: 103mm
• Weight: 225g
• In the box:
• Mounting brackets
• IR Accessories
• Phoenix connectors
• 24v PSU

• Regulations

• Safety Approvals: CE, UKCA, FCC, RoSH

• Warranty

• 5-Year standard warranty
