Save 37%

Neolink 8 Port Gigabit Cloud Managed POE Switch, 102W

List price: 109.00
69.00
(84.87 inc VAT) You save: €40.00 (37%)
neo-8-poe
In stock
+

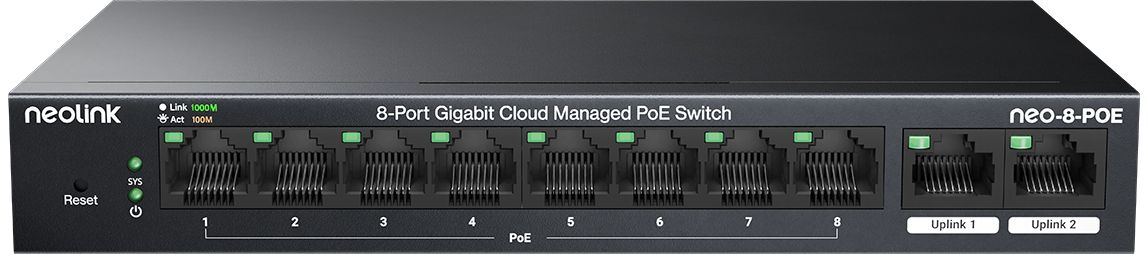

Neolink 8 Port Gigabit Cloud Managed POE Switch

NEO-8-POE

8-Port Gigabit PoE+ & 2-Uplink

Layer-2 Managed Cloud Switch

  • 102W 250m PoE+
    • 3af/at up to 30W each port
  • 1000 Mbps All Ports
    • 10x the speed of 10/100 Fast Ethernet
  • Cloud Level-2 Management
    • Remotely control PoE+ ports, QVLAN, Web/APP & more
  • Galvanized Steel Casing
    • For heat dissipation & durability



Specifications

  • Gigabit Ports: 8x PoE+, 2x Uplink
  • Forwarding Mode: Store-and-forward
  • Bandwidth: 20 Gbps (non-blocking)
  • Standards: IEEE 802.3ab/u/x/z, IEEE 802.1d/p/q/w
  • PoE Standards: IEEE 802.3af/at
  • MAC Address Table: 16K
  • Packet Forwarding Rate: 14.90 Mpps
  • Buffer Memory: 2 Mb
  • Jumbo Frame: 9K
  • Protection: Lightning ≥6kV, ESD, Air discharge: ±8kV, Contact discharge: ±4kV
  • Cloud Management: PoE configuration & control, Status, Web/APP & more
  • MAC Address Binding
  • VLAN: 802.1Q
  • Port Mirroring: N: 1
  • Loop Guard
  • Each port supports auto MDI/MDIX, auto-negotiation of duplex mode and rate
  • Supports flow control in IEEE 802.3x full duplex and Backpressure half duplex
  • Operating Temperature: -10°C ~ 45°C (14F ~ 113F)
  • Power: DC 51V 1.25A
  • Power consumption: <102W (with PoE)
  • Dimensions (W x D x H): 177.5 x 104 x 26 mm

Datasheet (neo-8-POE.pdf, 443 Kb) [Download]
