Neolink 8 Port Gigabit Network Switch

List price: 39.00
23.00
(28.29 inc VAT) You save: €16.00 (41%)
neo-8
In stock
+

NEO-8

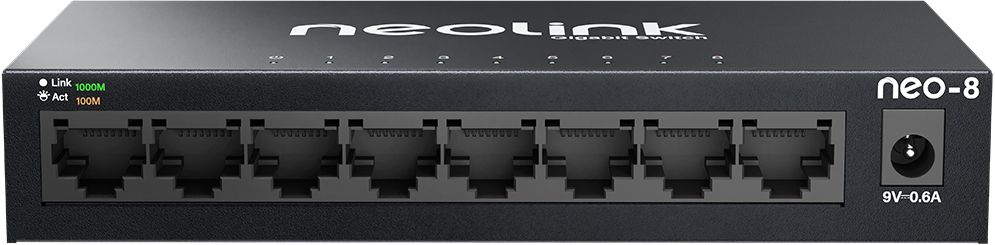

8-Port Gigabit Switch

  • 1000 Mbps
    • 10x the speed of 10/100 Fast Ethernet
  • Galvanized Steel Casing
    • For heat dissipation & durability
  • Plug & Play
    • Hassle-free setup, no configuration required

Specifications

  • Gigabit Ports: 8
  • Forwarding Mode: Store-and-forward
  • Bandwidth: 16 Gbps (non-blocking)
  • Standards: IEEE 802.3ab/u/x
  • MAC Address Table: 8K
  • Packet Forwarding Rate: 12 Mpps
  • Buffer Memory: 2 Mb
  • Jumbo Frame: 10K
  • No Fan, Silent
  • Wall Mountable Galvanized Steel Casing
  • Each port supports auto MDI/MDIX, auto-negotiation of duplex mode and rate
  • Supports flow control in IEEE 802.3x full duplex and Backpressure half duplex
  • Protection: Lightning ≥6kV, ESD, Air discharge: ±8kV, Contact discharge: ±4kV
  • Operating Temperature: -10°C ~ 45°C (14F ~ 113F)
  • Power: DC 9V
  • Power consumption: <4.6W
  • Dimensions (W x D x H): 140 x 67 x 25 mm

Datasheet (neo-8.pdf, 406 Kb) [Download]
