Labgear 4K HDMI Extender Over CAT5/6 PoE with IR Control and HDMI Loop

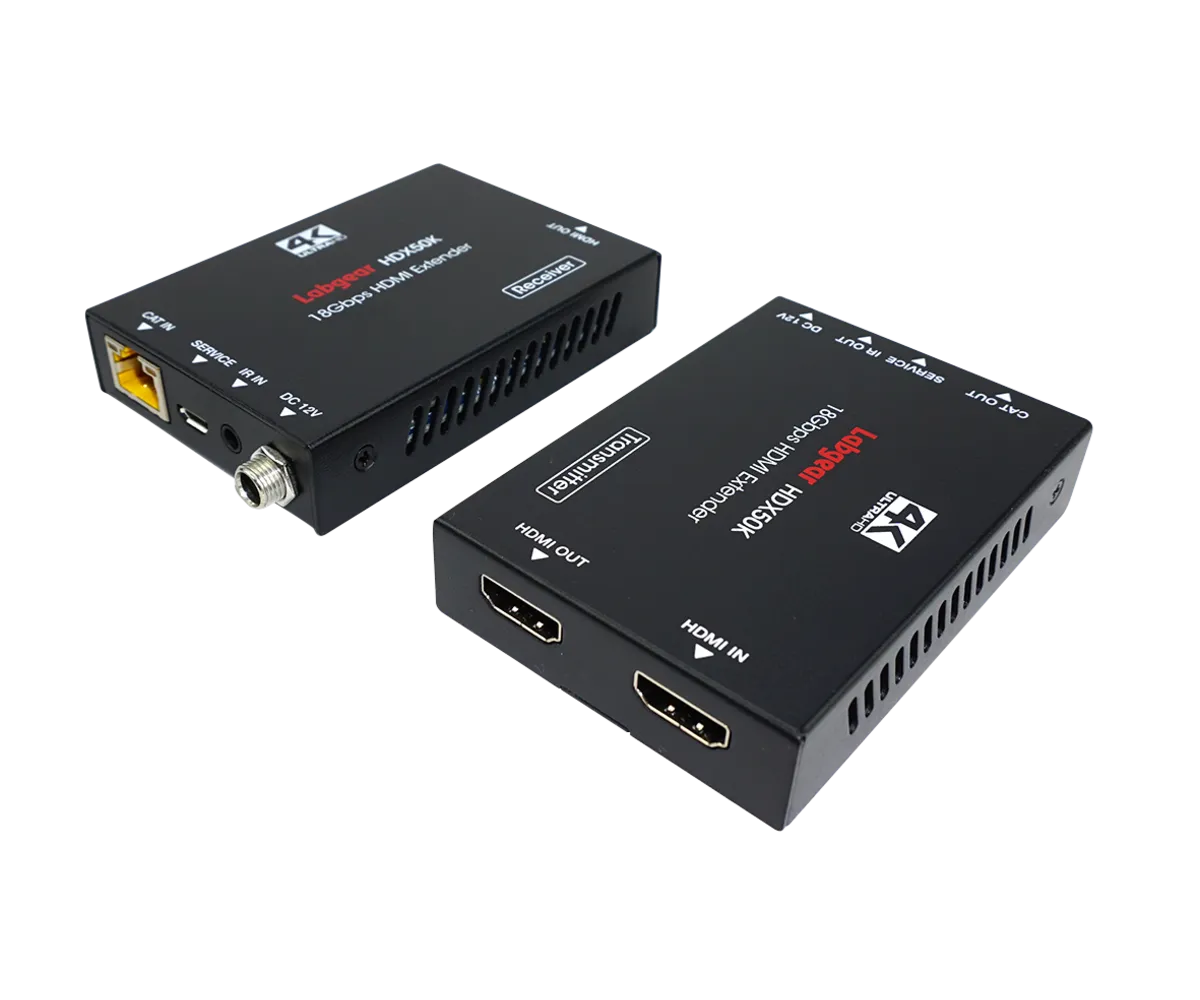

The Labgear HDX50K is an 18Gbps extender kit which allows for a 4K HDMI signal to be sent over individual Cat 6/6A/7 Cables over a distance of up to 50m. The Transmitter unit is connected to an HDMI source such as a DVD or Blu-ray player and sends the signal to the Receiver unit over a single CAT6/6a/7 cable. The Receiver then sends the signal to a UHD/HD display connected via an HDMI cable. An IR Receiver is also provided, enabling remote control of the source from all of the display locations
Features:
- HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant
- Supports video resolutions up to 4K@60Hz YUV 4:4:
- Transmission: Cat 6/6a/7 - 60m for 40K@60Hz, 70m for 4K@30Hz/1080p
- Supports copying EDID from receiver display or loop out display, or will switch to the highest resolution compatible with both devices.
- Cascading via HDMI loop out port
- One-way POC functionality allowing the transmitter to power the receiver via the connecting network lead
- IR Return path from receiver allows remote control of the video source from the location of the display
- Supports audio formats up to PCM7.1, Dolby True HD, DTS HD
- Connections: HDMI IN/OUT, RJ45, IR IN/OUT
- Compact design
