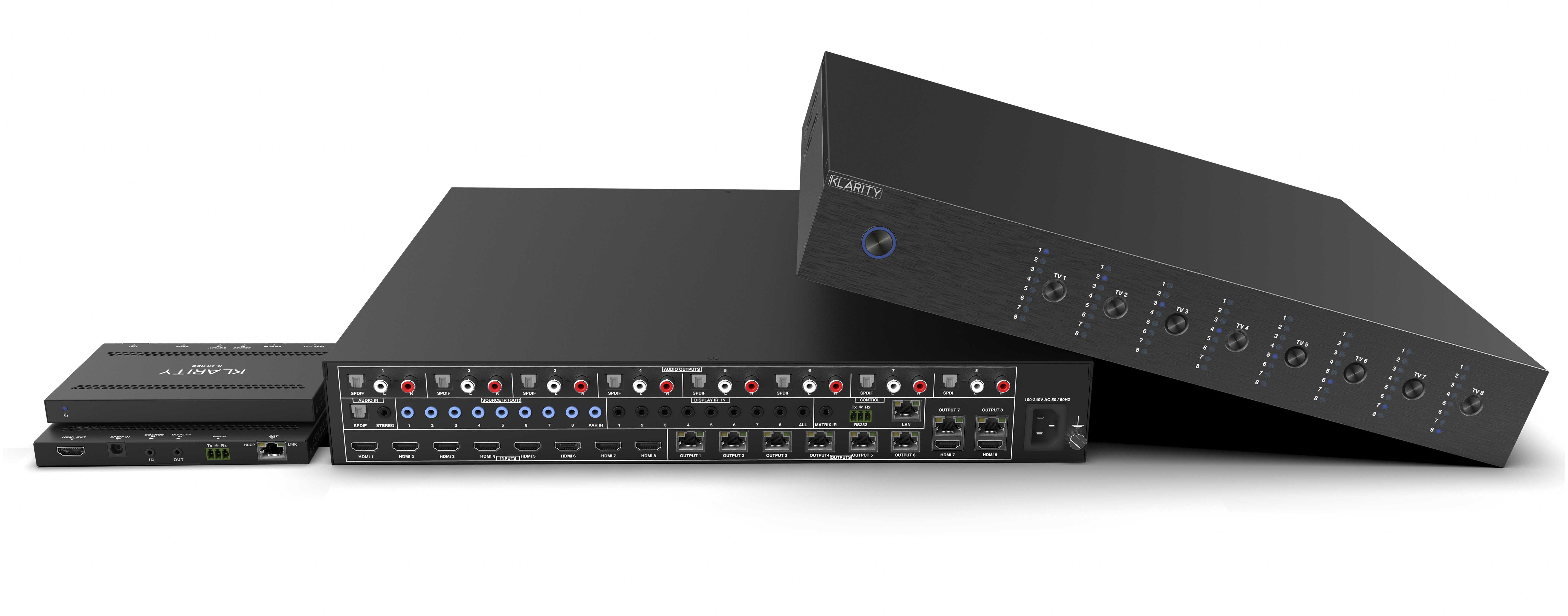

Klarity 8x8 HDMI Matrix over CAT5/6 with 8 Receivers 4K
The 8 x 8 HDMI Matrix over CAT5/6 Cables (8 inputs, 8 outputs) is designed to give you the option to choose between 8 sources at 8 TV points.
This unit is a professional, rack mountable unit, designed for commercial and smart home applications.
It is particularly popular in pubs / clubs etc.. where the user could need for example 5 Sky boxes, DVD Player, Smart TV Box, and Media Player transferred to up to 8 screens.
This unit uses Single CAT5 / 6 cables (up to 70m) to transmit the HD picture
Features:
Incorporates HDBaseT technology
Any one of the 8 HDMI Sources to any one of the 8 HDMI Displays
Each of the 8 outputs includes one HDMI output and one UTP output simultaneously
HDMI 1.4 version (Support HDMI1.4 4K@60Hz YUV4:2:0).
Transmit up to 70m under 1080p,40m under 4K@60Hz.
HDCP 2.2/1.4 compliant.
With wide-band Bi-Direction IR routed control(38~56KHz)
Support RS232 pass through
Support 8x Analog Audio and 8x SPDIF Audio embedded,
Support 8x Analog Audio and 8x SPDIF Audio extraction.
Support Panel Button, IR Routing, RS232 Control, IP Control
Support POC (Receiver powered by HDBaseT Matrix).
2U rack design with mounting ears
