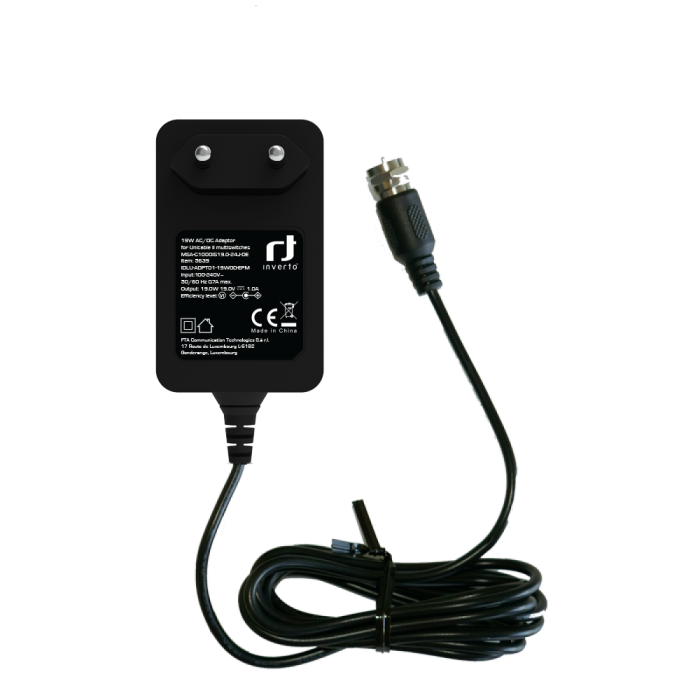

Inverto Unicable II Power Supply
It comes with an EU plug, we include a 2 to 3 pin adapter with this product.

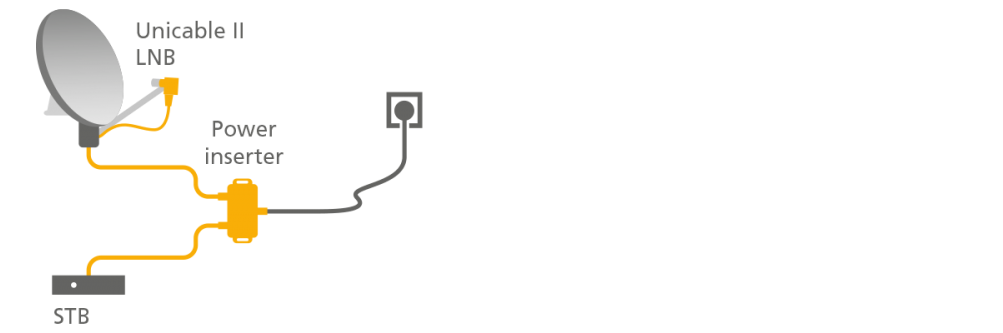

This power supply adapter is designed to power up a single 4-output Unicable II™ multiswitch and a connected Quattro LNB (or two wideband LNBs) over the DC input port or over the trunk lines. It features over current and short circuit protections and a built-in fuse protecting against power line surges and abnormal conditions making it ideal for building/MDU installations of cascaded systems.
| Technical specifications | |
|---|---|
| Input voltage | 100 VAC ~ 240 VAC |
| Input frequency | 50 Hz/60 Hz |
| Output voltage | 19 V |
| Output current | 1 A |
| Output power | 19.0 W |
| Average efficiency | 86.8 % min. (230 Vac) |
| Efficiency at low load (10%) | 79.9 % (230 Vac) |
| No-load power consumption | 0.075 W max. |
| Output connector | F-type (male) |
| Cable length (AC) | Wall plug |
| Cable length (DC) | 1.5 m |
| Product dimensions (L x W x H) | 77 mm x 45 mm x 70 mm |
| Working temperature | 0 °C ~ +40 °C |
| Weight | 123 g |
| Compliance | Low Voltage Directive (2014/35/EU) Electromagnetic Compatibility Directive (2014/30/EU) Eco-Design Directive (2009/125/EC) |
