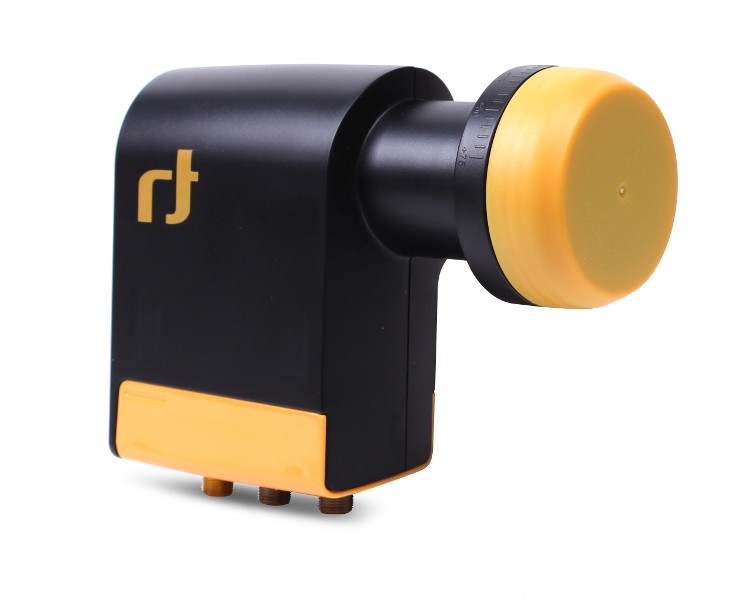

Inverto Black Unicable IDLU-QUDL42-UNR2L-1PP Quad LNB 0.2dB
This LNB is part of our innovative and award-winning Unicable LNB (single-cable) series. It was specially developed for the European DTH markets and offers optimized reception characteristics. This LNB allows you to connect a maximum of 4 (Unicable-compatible) set top boxes with two cables (or a maximum of four set top boxes with one cable). The LNB comes with a dual distributor * (optional), which ensures flexible signal distribution within a household. The LNB is suitable for HD transmissions and provides excellent noise figure values. Designed to the highest standards and manufactured to the highest quality standards, this LNB is the ideal solution for Europe-wide satellite broadcasting.
Key Features:
Low phase noise, DVB-S2 (HDTV) compatible
Low noise figure
Low energy consumption
Very high cross polarization isolation
Very high frequency stability
2 legacy outputs
Technical specifications:
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
LO Frequency 10.6 C + Hz
LO Initial Accuracy +/- 1.0 MHz
LO temperature drift +/- 2.5 MHz
LO Phase Noise @ 10KHz -90 dBc / Hz max.
SCR conversion gain 57 dB min.
Legacy Conversion Gain 55 dB Min.
Gain variation +/- 0.75 dB / 27 MHz
Image Rejection 40 dB min.
1 dB Compression Point (O / P) 0.0 dBm min.
Cross-pole isolation 20 dB min.
O / P VSWR 2.5: 1
Output Impedance 75 Ohms (F-type)
IF channel bandwidth 60 MHz
Output IF Channel 1 (SCR0) 1210 MHz
Output IF Channel 2 (SCR1) 1420 MHz
Output IF Channel 3 (SCR2) 1680 MHz
Output IF Channel 4 (SCR3) 2040 MHz
Channel isolation 20 dB Min.
Legacy ports 2
SCR's Control Signals> DiSEqC command extension based on EN-50494
Legacy Switch Voltage Control <14.2 (V),> 15 (H) Volts
Legacy 22k sensitivity 220 mV [min.]
DC Power [email protected]
Working Temperature- 30 ° C ~ + 60 ° C
Weight 350g
