Hikvision Video Doorbell

Trade Only Product

DS-KV6113-WPE1
In stock

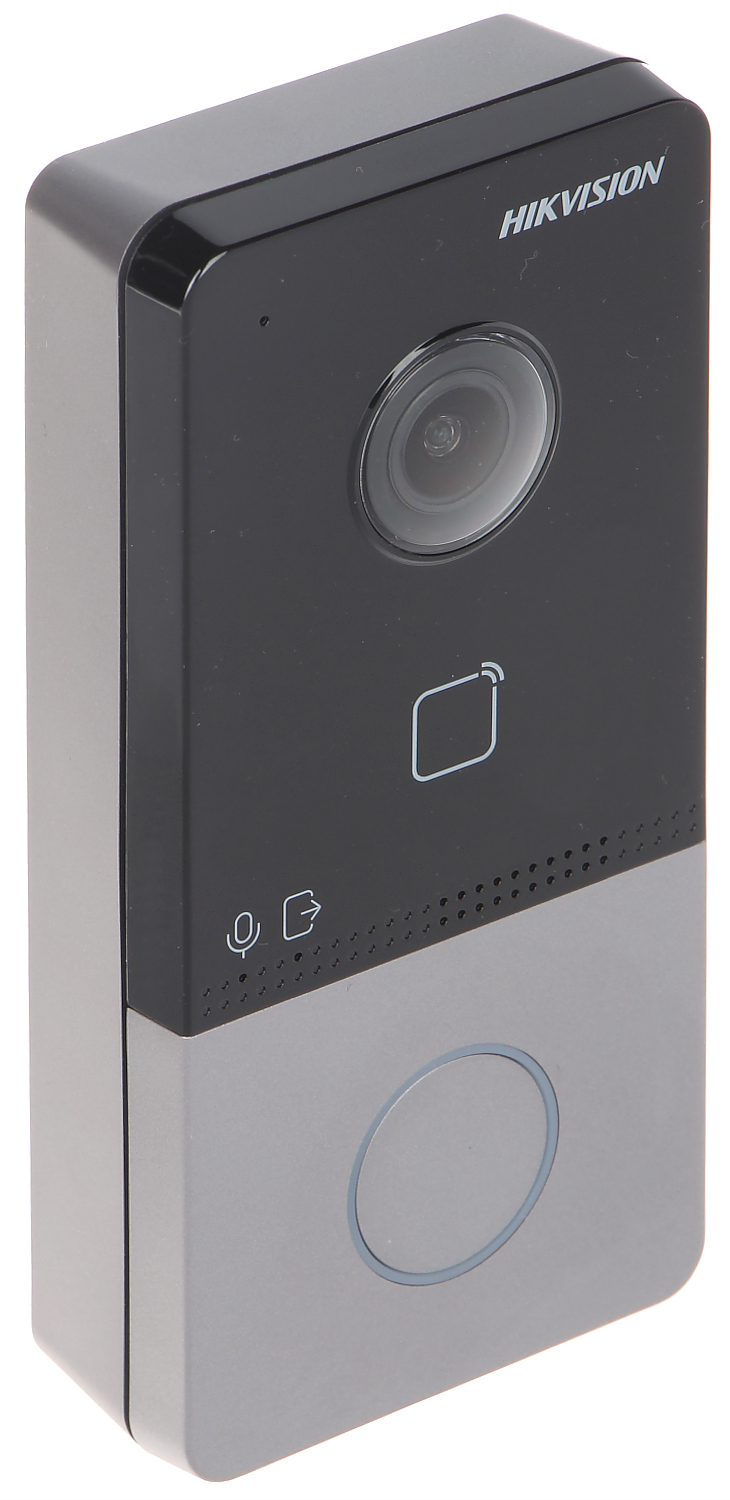

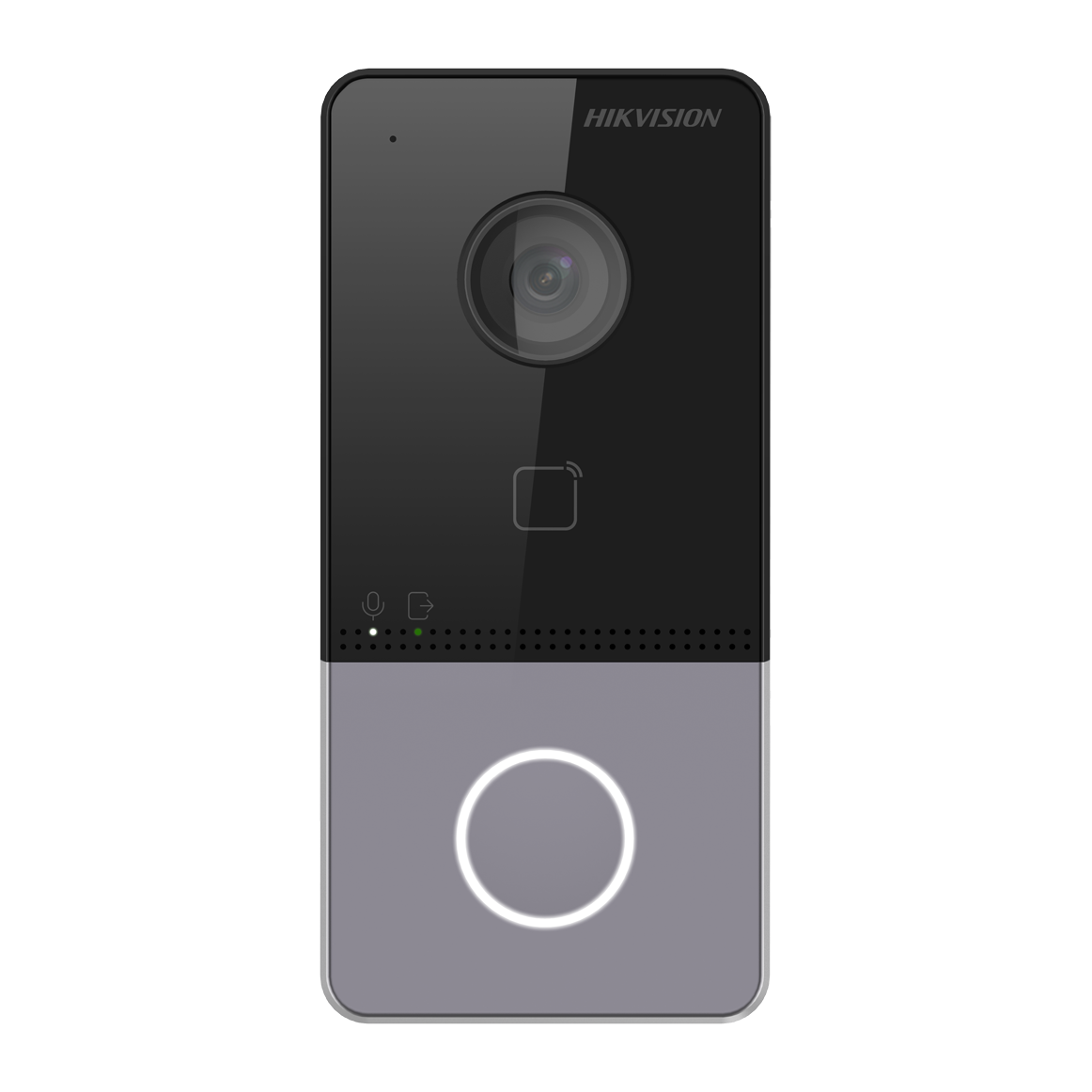

Hikvision Video Doorbell with card read & 485 & indicators

  • Support Wifi
  • Support web configuration
  • Nice industry design, IP65, 2 indicator integrated
  • Internal Mifare card reader, 1-ch Indoor station access control
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/ 12 VDC
 Specs

Video parameters
  • Supplement light

    IR supplement



  • Lens 1
  • FOV Horizontal: 129° Vertical: 75°
  • Simultaneous live view Up to 3 channels
Pixel

Main stream: 1920 × 1080p, 720p

Sub stream: 704 × 576


Audio parameters
  • Audio quality Noise suppression and echo cancellation
  • Network parameters
  • Communication protocol

    TCP/IP, RTSP



  • Wired network 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi Support
  • Bluetooth Not supported.
  • Received frequency 2.4 to 2.4835GHz
  • Transmitted frequency 2.4 to 2.4835 GHz
  • Bandwidth 20 to 40 MHz
Frequency power

802.11b:16dBm +/- 1.5dBm

802.11g:15dBm +/- 1.5dBm

802.11n(ht20):14dBm +/- 1.5dBm

802.11n(ht40):12dBm +/- 1.5dBm


Device interfaces
  • Network interface 1
  • Exit button 1
  • Lock control 1
  • Door contact input 1
  • Power interface 1
General
  • Button 1
  • Indicator 2
Installation

Surface mounting




  • Working temperature

    -40° C to +55° C(-40° F to 131° F)



  • Working humidity

    10% to 95%



  • 265g
  • Protective level IP65
Power supply

IEEE802.3af, standard PoE

12 VDC


  • Dimensions138 mm × 65 mm × 27 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption< 10 W

Datasheet (DS-KV6113-WPE1_Villa-Door-Station_Datasheet_V1.0_20210428.pdf, 891 Kb) [Download]
