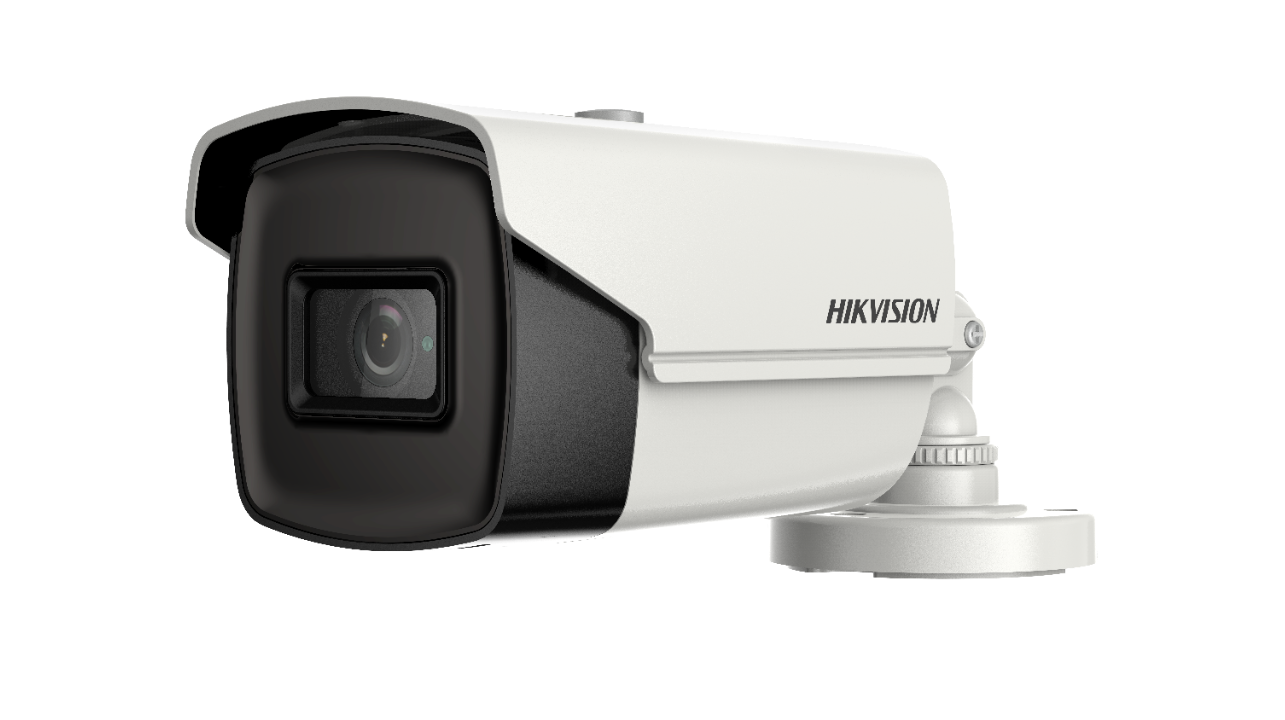

Hikvision Turbo 5MP Low Light Bullet Camera 80m IR 3.6mm

Trade Only Product

DS-2CE16H8T-IT5F(3.6mm)
Out-of-stock

Hikvision Turbo 5MP Low Light Bullet Camera 3.6mm DS-2CE16H8T-IT5F

  • 5 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification:

Camera
  • Image Sensor 5 megapixel progressive scan CMOS
  • Max. Resolution 2560 (H) × 1944 (V)
  • Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time

PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s


  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal System PAL/NTSC
Lens
  • Lens Type 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOV 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
  • Lens Mount M12
  • Image Settings Brightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Frame Rate

    TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

    AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps

    CVI: 4 MP@25fps, 4 MP@30fps

    CVBS: PAL, NTSC

  • Day/Night Mode Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥ 130 dB
  • Image Enhancement BLC
  • Privacy Mask 4 programmable privacy masks
  • Noise Reduction Level 1 to 9
  • White Balance Auto/Manual
  • AGC Yes
Interface
  • Video Output 1 HD analog output, TVI/AHD/CVI/CVBS
  • Event
  • Motion Detection 4 programmable areas
General
  • Material Metal
  • Dimension 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
  • Approx. 570 g (1.26 lb.)
  • Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Communication Up the coax, Protocol: HIKVISION-C (TVI output)
  • Language English
  • Power Supply

    12 VDC ± 25%

    *You are recommended to use one power adapter to supply the power for one camera.

  • Consumption Max.6.6 W
  • IR Range Up to 80 m
  • Approval
  • Protection 1P67

Datasheet (Datasheet-of-DS-2CE78H8T-IT3F_20181204.pdf, 1,048 Kb) [Download]
