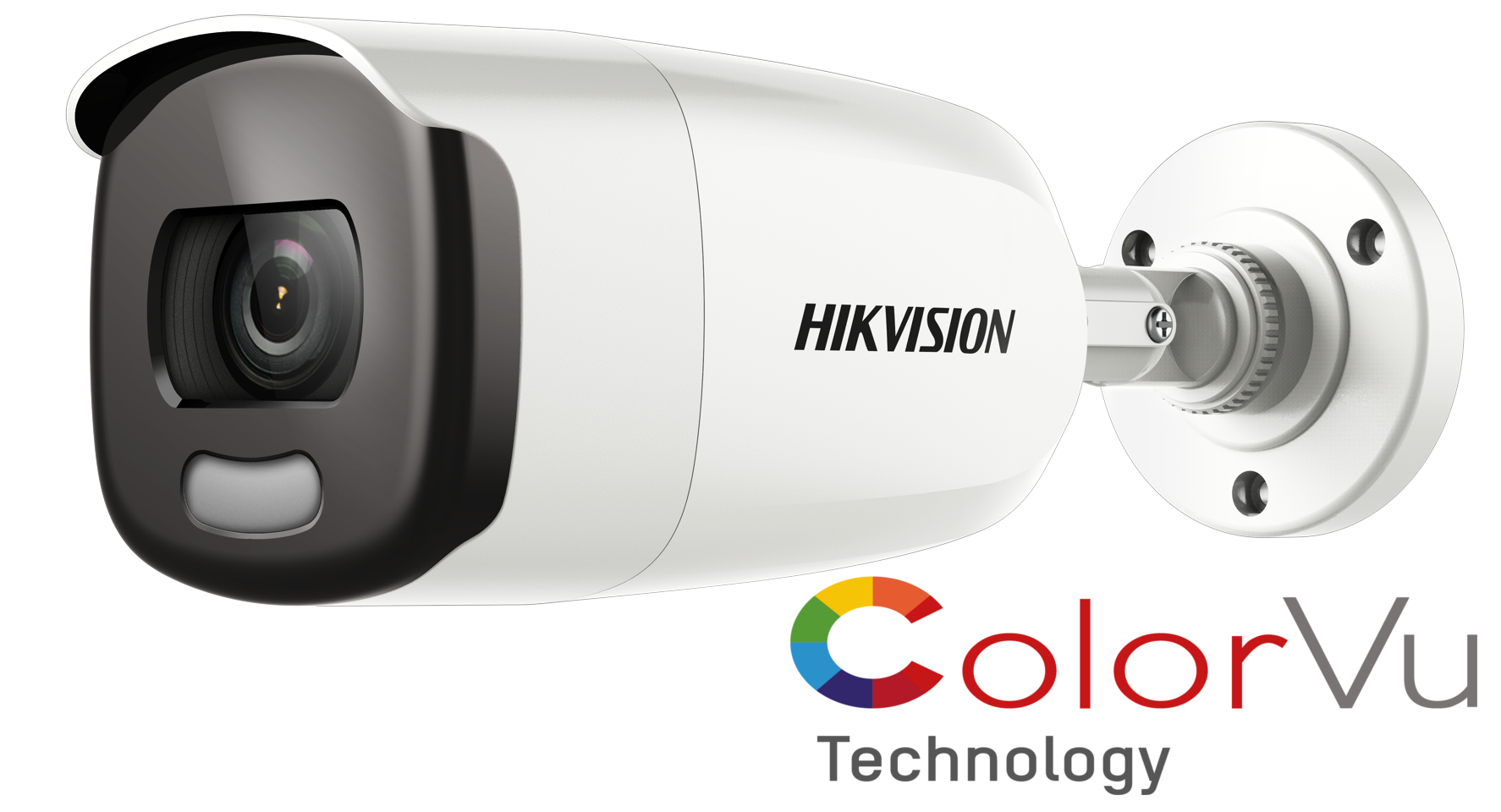

Hikvision Turbo 5MP COLORVU Bullet Camera 3.6mm DS-2CE12HFT-F
5 MP ColorVu Fixed Bullet Camera
- 5 MP full time color bullet camera
- 24/7 full color imaging
- Warm supplemental light with 40 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification:
CameraImage Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) × 1944 (V)
Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
Min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 3.6 mm,
Horizontal Field of View 80.1°(3.6 mm), 49.3°(6 mm)
Lens Mount M16
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Color
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global/HLS/Anti-banding
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR
Language English
Function Brightness, Sharpness, Mirror, Smart Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 4.9 W
Protection Level IP67
Material Metal
White Light Range Up to 40 m
Communication HIKVISION-C
Dimensions 82.6 mm × 77.1 mm × 220.4 mm (3.25" × 3.04" × 8.68")
Weight Approx. 565 g (1.25 lb.)
