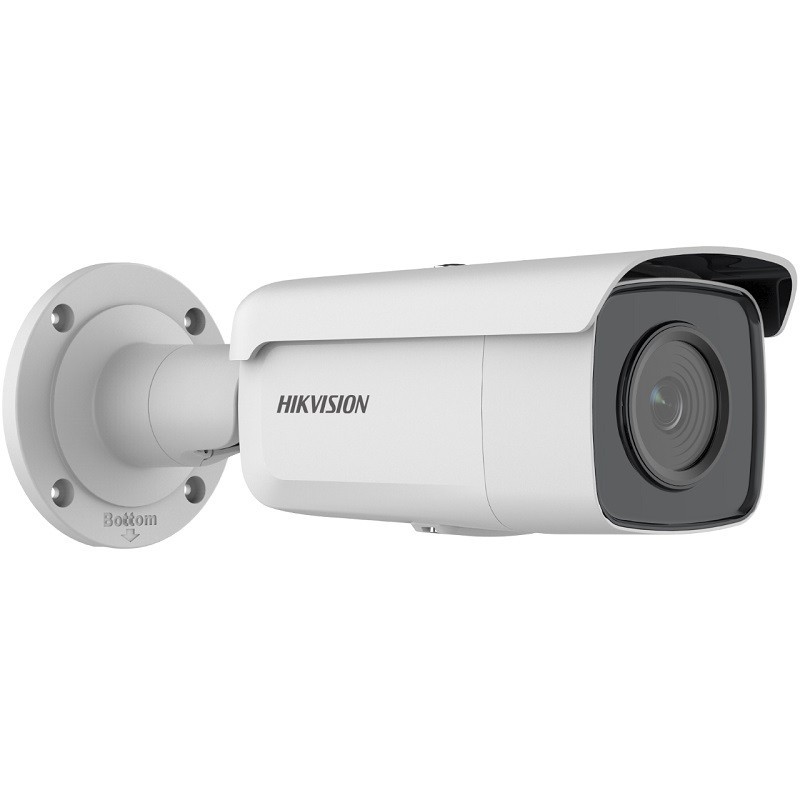

Hikvision IP 4MP ACUSENSE Bullet Camera 80m IR 2.8mm

Hikvision IP 4MP ACUSENSE Bullet Camera 2.8mm  DS-2CD2T46G2-4I

4 MP AcuSense Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)

Specification:

Camera

• Image Sensor 1/3" Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens Type Fixed focal lens, 2.8mm
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°



• Lens Mount M12
• Iris Type Fixed
• Aperture F1.4

• DORI

  2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m



• Supplement Light Type IR
• Supplement Light Range

  2I: Up to 60 m

  4I: Up to 80 m

• Smart Supplement Light Yes
• IR Wavelength 850 nm

• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live ViewUp to 6 channels
• API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported

• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in micro SD slot, up to 256 GB
• Reset Key Yes

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection

  Scene change detection

• Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

• Deep Learning Function
• Face Capture Yes

• Power

  2I:

  12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

  4I:

  12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W

• Dimension Ø105 mm × 289.5 mm (Ø4.1" × 11.4")
• Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
• Approx. 1075 g (2.4 lb.)
• With Package Weight Approx. 1584 g (3.5 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

• EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

  CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

  LOA (IEC/EN 60950-1)

• Environment CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection IP67 (IEC 60529-2013)
