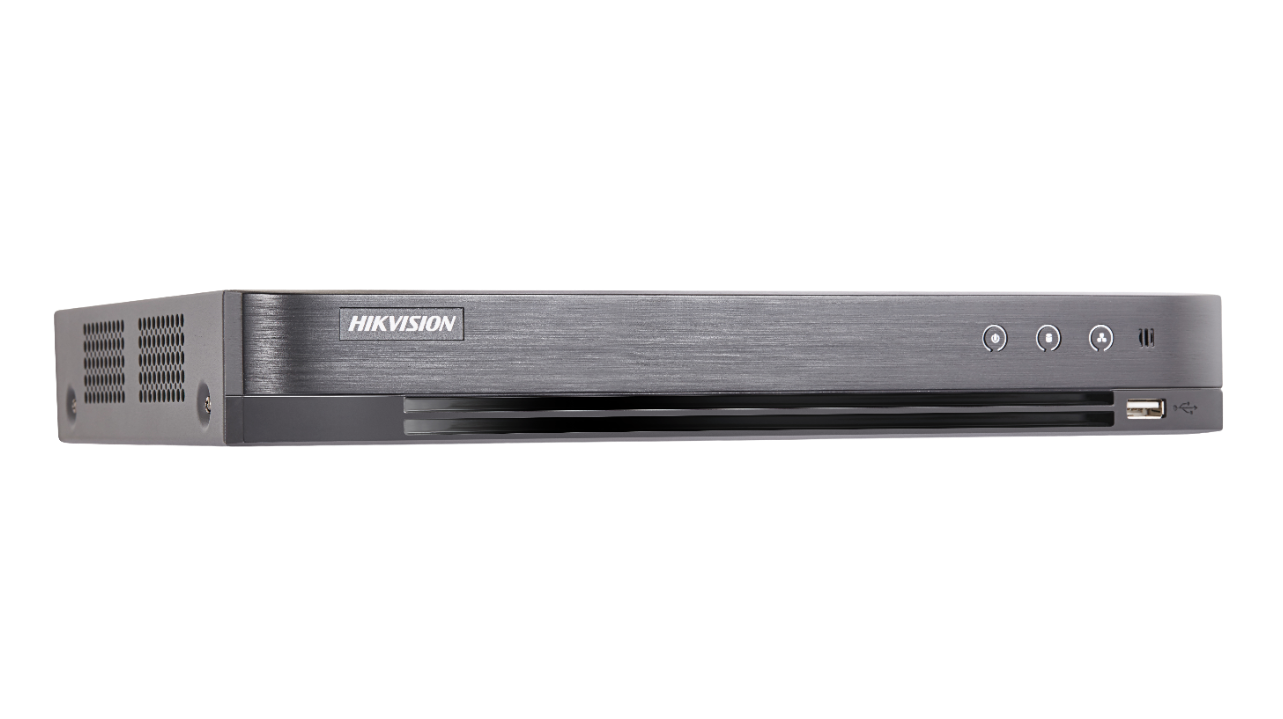

Hikvision 8CH Acusense Turbo DVR
8-ch 5 MP 1U H.265 AcuSense DVR
- 8 channels and 1 HDD 1U AcuSense DVR
- Providing detailed information with face detection
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
Specifications:
Recording
- Encoding Resolution
Main stream:
8 MP@8 fps/5 MP@12 fps/
4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Video Bit Rate 32 Kbps to 6 Mbps
- Dual Stream Support
- Stream TypeVideo, Video & Audio
- Audio Compression G.711u
- Audio Bit Rate 64 Kbps
- IP Video Input
4-ch (up to 12-ch)
IP enhanced mode on:
8-ch (up to 16-ch), each up to 4 Mbps
- AHD Input
5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS InputPAL/NTSC

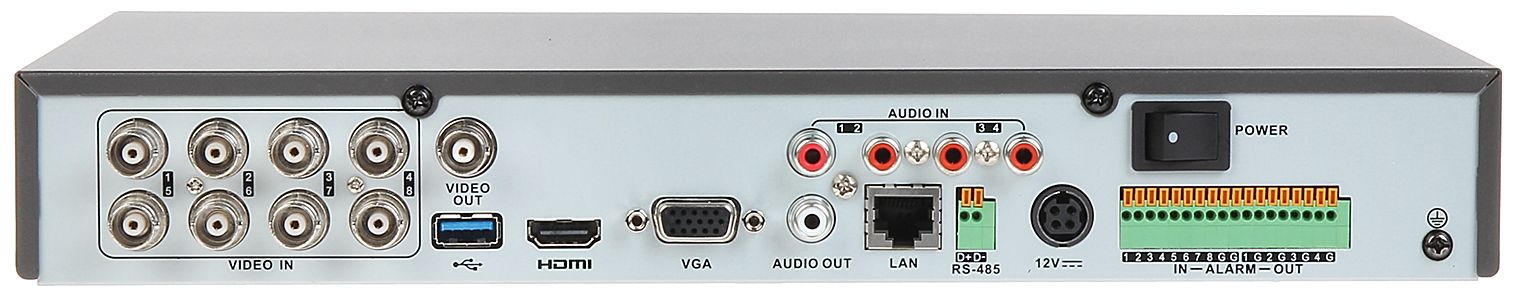

- HDMI/VGA Output
VGA: 1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz
HDMI/VGA simultaneous output
HDMI: 1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz
HDMI/VGA simultaneous output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback8-ch
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,
- Remote Connections 128
- Network Interface 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
- SATA 1 SATA interfaces
- Capacity Up to 10 TB capacity for each disk
- Alarm In/Out 4/1
- USB Interface 1 × USB 2.0; 1 × USB 3.0
- Power Supply 12 VDC
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Weights (Without HDD)≤ 2 kg (4.4 lb)
- Consumption(Without HDD)≤ 15 W
- Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
