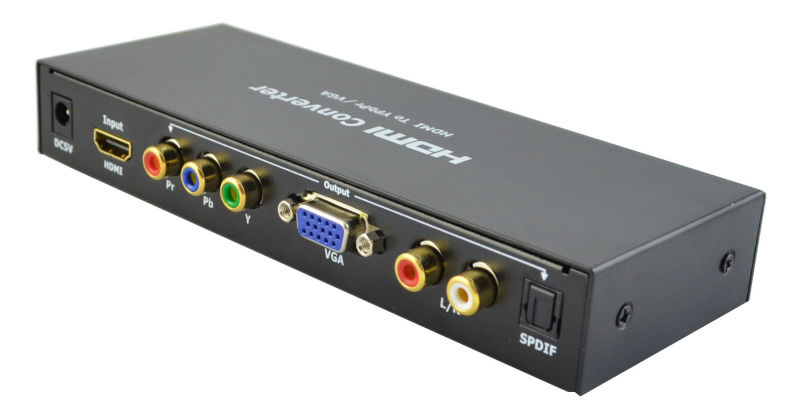

DESCRIPTION of HDMI to VGA / YPbPr Converter
The HDMI to VGA / YPbPr (Component) Converter allows users to convert their HDMI video/audio signal to a component or VGA device eg. monitor
Spec:
- Input video signal: 0.5 to 1.5Vp-p
- Input DDC signal: 5Vp-p (TTL)
- VGA or YPbPr output: supports up to UXGA and 1080i (60Hz)
- Audio output: R/L analog and optical
- Maximum transmission bandwidth: 5.1Gbps
- Maximum working current: 600mA
- Power adapter formats:
- Input: 100 to 240V AC (50Hz, 60Hz)
- Output: 5V DC/0.8A
- Operating temperature range: -15 to +55C
- Operating humidity range: 5 to 90% RH (no condensation)
- Dimension (L x W x H): 174 x 70 x 20mm
- Weight: 750g
